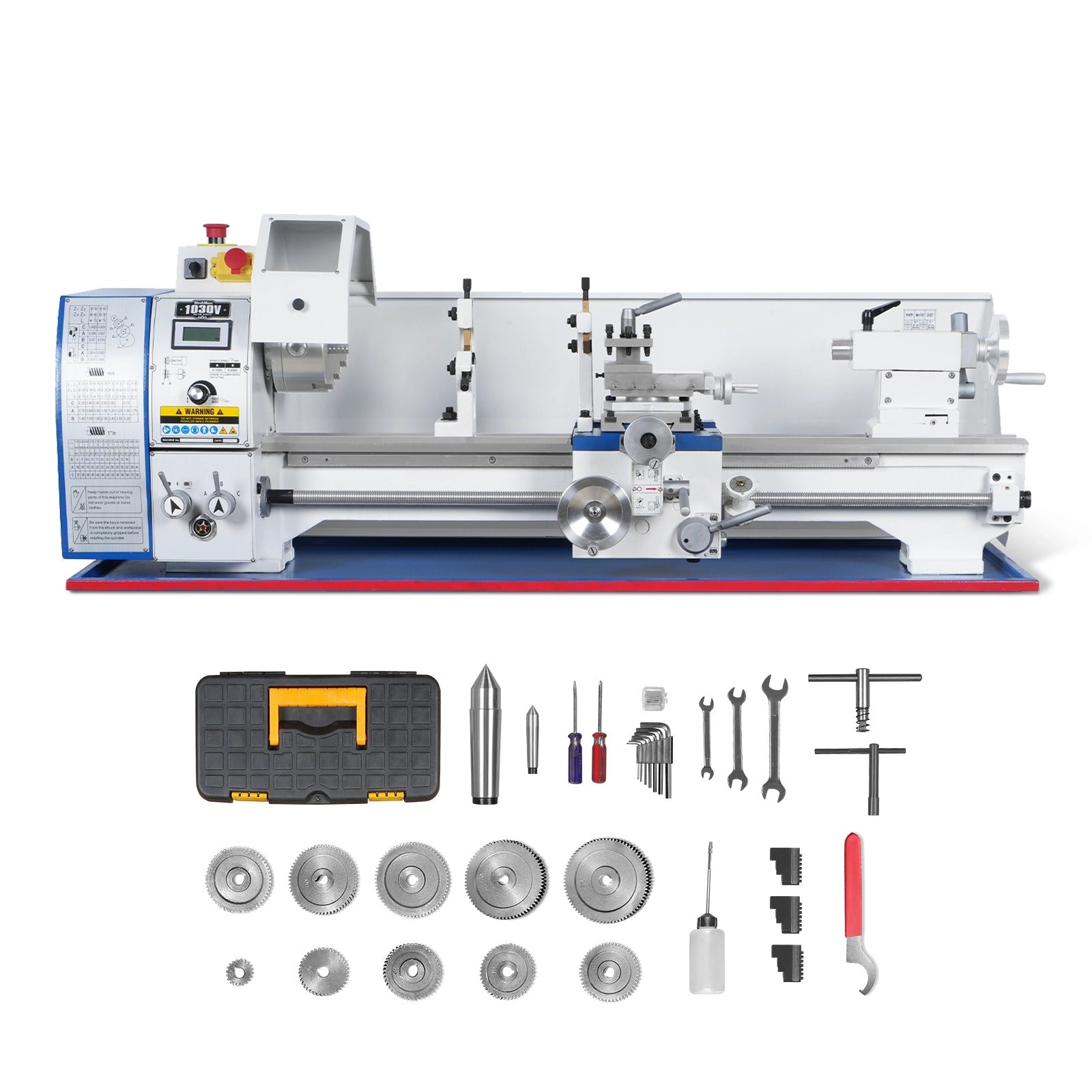

1.5 HP 10'' x 30'' Combination Lathe Milling Drilling Machine, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1030VC

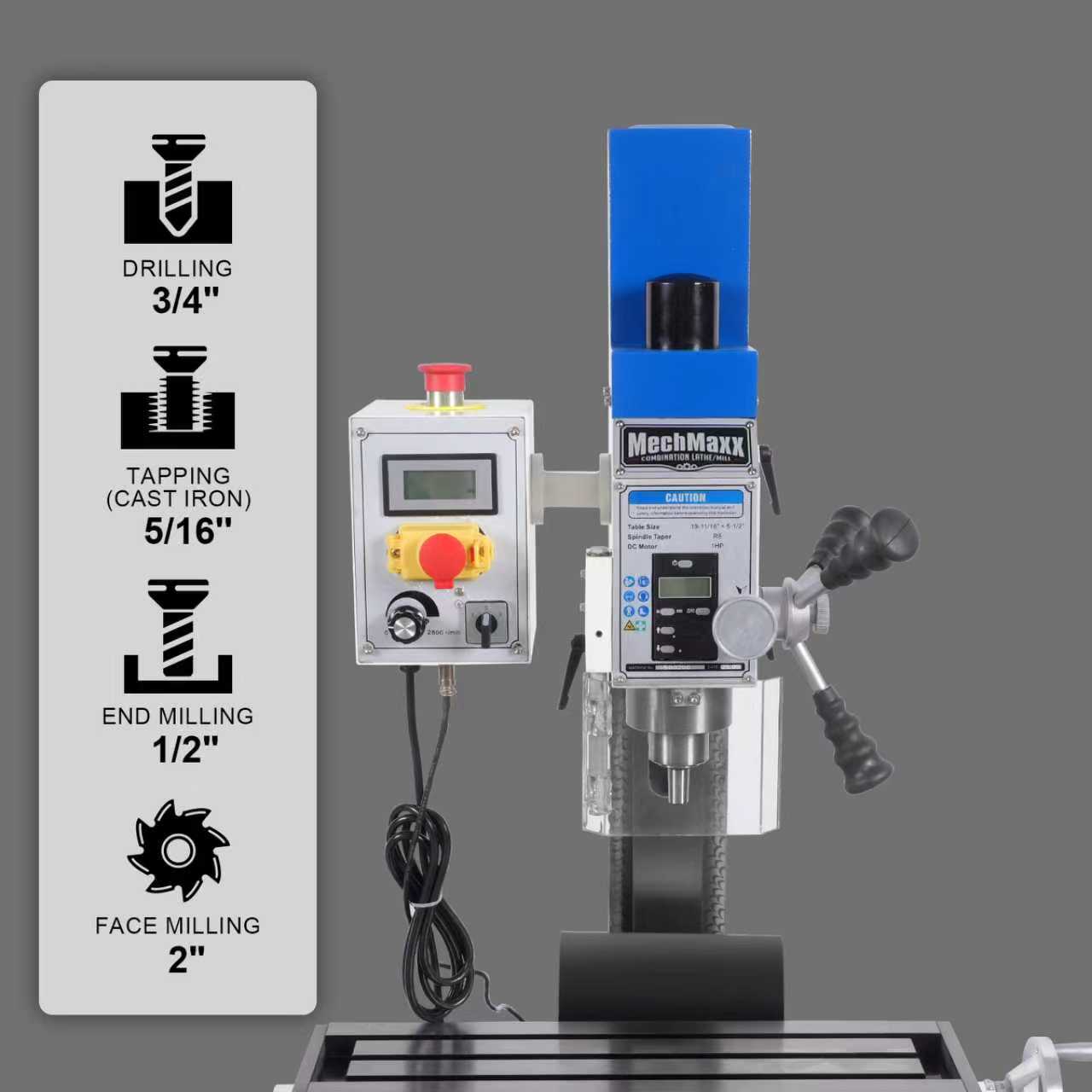

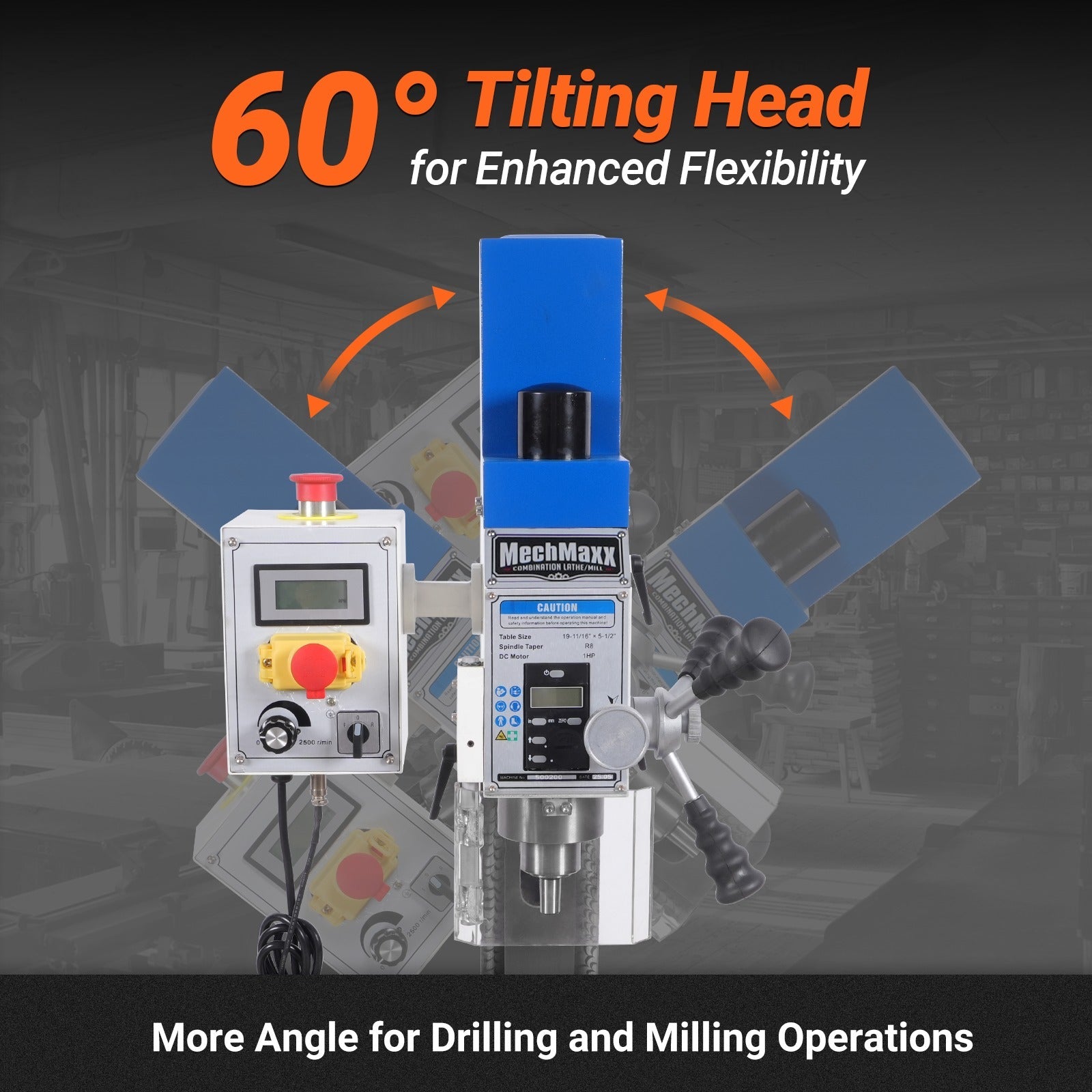

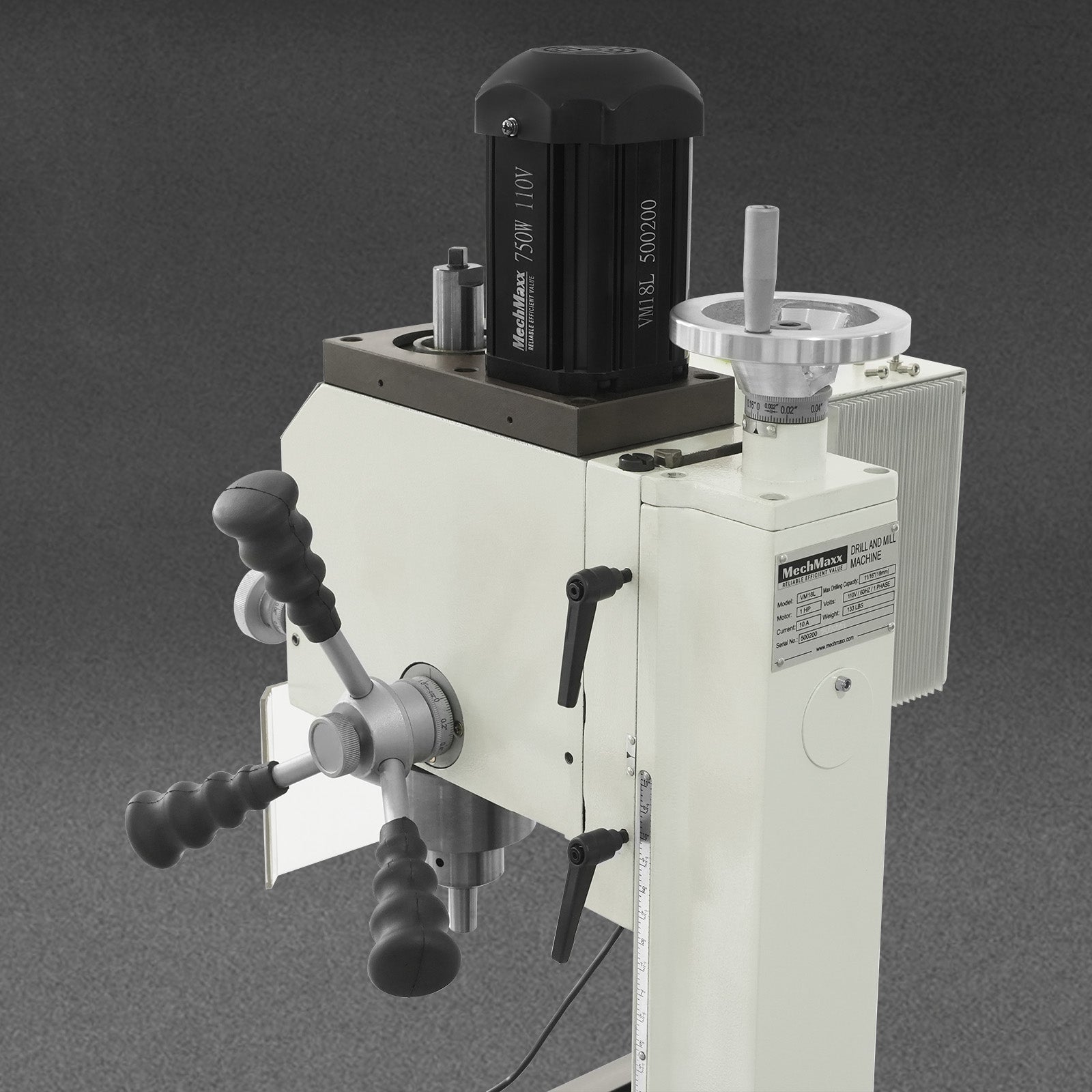

Lathe Parameter Motor Power (Lathe) 1.5 HP, 110V, single-phase, 10A Swing Over Bed 9-7/8" (250 mm) Swing Over Cross Slide 5-1/2" (140 mm) Swing Over Saddle 5" (127 mm) Distance Between Centers 29-1/2" (750 mm) Bed Width 5-3/8" (135mm) Spindle Bore 1-1/2" (38 mm) Spindle Mount Intrinsic back plate Spindle Taper MT#5 Tailstock Taper MT#2 Tailstock Quill Travel 3" (75 mm) Tailstock Offset Carriage Travel 27-1/2" (700 mm) Cross Slide Travel 5" (127 mm) Compound Slide Travel 3" (75 mm) Spindle Speed Range 0–2000 RPM Number of Speed Ranges Variable Longitudinal Feed Rate 0.0025 – 0.014 in./rev. Transverse Feed Rate 0.0014 – 0.004 in./rev. Leadscrew Size & Pitch 20mm(8TPI) Threading Capacity – Inch 8–80 TPI(37KINDS) Threading Capacity – Metric 0.35 – 3.0 mm(21kinds) Thread Dial Indicator YES Tool Post Type 4-way Max Tool Bit Size 15/32''(12mm) Mill/Drill Head Specifications Motor Power (Mill Head) 1HP(750W) Spindle Taper R8 Spindle Speed Range 0-2500RPM Spindle Travel (Quill Stroke) 2"(50mm) Quill Diameter Ø60 mm Drawbar Thread Size 7/16"-20 Drilling Capacity 5/8"(16mm) End Milling Capacity 1/2"(12mm) Face Milling Capacity 2"(50mm) Vertical Travel (Z-Axis) 10-7/8"(275mm) Head Tilt Angle ±90° Distance: Spindle to Table 10-7/8"(275mm) Distance: Spindle to Column 6-5/8"(170mm) Column Type Dovetail Slot Drive Type Belt Drive Brushless Machine Dimensions & Utilities Electrical Requirements 110V 1PHASE Overall Dimensions 52''x26''x38-1/4''(1320x660x970mm) Net / Gross Weight 440/517lbs(200/235kg) Shipping Dimensions 56''x27''x39''（1420x680x970mm） WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
