1 HP 16''x32'' Multi-Function Metal Lathe Milling Machine Head for Metalworking – Lathe, Drilling, and Milling Operations with Powerful Motor, Perfect for DIY, Workshops, and Professional Metalworking Projects without Stand CLM1632

1 HP 16''x32'' Multi-Function Metal Lathe Milling Machine Head for Metalworking – Lathe, Drilling, and Milling Operations with Powerful Motor, Perfect for DIY, Workshops, and Professional Metalworking Projects without Stand CLM1632

$1,574.55 $3,499.00
Skip to product information
1 HP 16''x32'' Multi-Function Metal Lathe Milling Machine Head for Metalworking – Lathe, Drilling, and Milling Operations with Powerful Motor, Perfect for DIY, Workshops, and Professional Metalworking Projects without Stand CLM1632
  • 1 HP 16''x32'' Multi-Function Metal Lathe Milling Machine Head for Metalworking – Lathe, Drilling, and Milling Operations with Powerful Motor, Perfect for DIY, Workshops, and Professional Metalworking Projects without Stand CLM1632
  • 1 HP 16''x32'' Multi-Function Metal Lathe Milling Machine Head for Metalworking – Lathe, Drilling, and Milling Operations with Powerful Motor, Perfect for DIY, Workshops, and Professional Metalworking Projects without Stand CLM1632
1 HP 16''x32'' Multi-Function Metal Lathe Milling Machine Head for Metalworking – Lathe, Drilling, and Milling Operations with Powerful Motor, Perfect for DIY, Workshops, and Professional Metalworking Projects without Stand CLM1632

1 HP 16''x32'' Multi-Function Metal Lathe Milling Machine Head for Metalworking – Lathe, Drilling, and Milling Operations with Powerful Motor, Perfect for DIY, Workshops, and Professional Metalworking Projects without Stand CLM1632

$1,574.55 $3,499.00

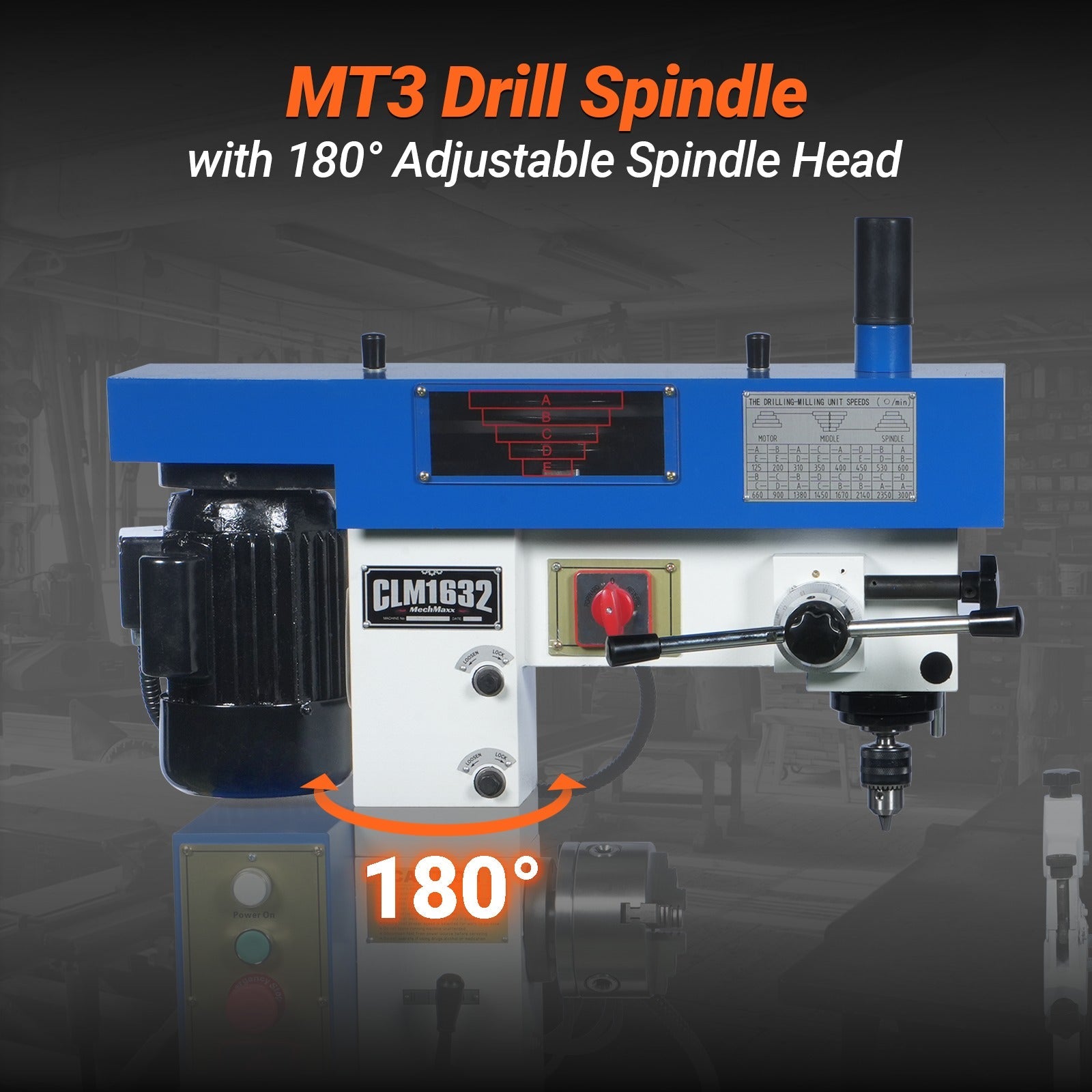

Lathe Motor Power (Lathe) 1PH(750W), Single-Phase, 110V,  60HZ Swing Over Bed 16-8/15''(420mm) Swing Over Cross Slide 11-1/2"(120mm) Distance Between Centers 31-1/2''(800mm) Bed Width 5-5/16''(135mm) Spindle Bore 1-1/10''(28mm) Spindle Mount Flange mount Spindle Type Integrated Spindle DIA of  the chuck 5''(125mm) Spindle Taper MT4 Tailstock Taper MT3 Tailstock Quill Travel 2-3/4''(70mm) Carriage Travel 29-1/8''(740mm) Carriage Leadscrew Diameter 25/32"(20mm) Cross Slide Travel 7-7/8''(200mm) Compound Slide Travel 3''(76.2mm) Spindle Speed Range 160-1360RPM Number of Speed Ranges 7 Longitudinal Feed Rate 0.002''-0.014'' Transverse Feed Rate 0.002''-0.014'' Leadscrew Size & Pitch 20mm 6TPI Threading Capacity – Inch 4-120TPI Threading Capacity – Metric 0.2-6mm Thread Dial Indicator YES Maximum Tool Bit Size 1/2''x1/2''(12x12mm) Drill/Mill Motor Power (Mill Head) 1PH(750W) Mill Taper MT3 Spindle Speed Range 120, 200, 310, 350, 400, 450, 530, 600, 660, 900, 1380, 1450, 1670, 2140, 2350, 3000 RPM Number of Speed Steps 16 Spindle Travel  4-5/16"(110mm) Drawbar Thread Size 3/8''(9.52mm) Drawbar Length 13''(330mm) Drawbar Thread Pitch 16TPI Drill Capacity 7/8''(22mm) End Milling Capacity 1-1/8"(28mm) Face Milling Capacity 3-5/32''(80mm) Vertical Travel (Z-Axis) / Distance: Spindle to Table 14-1/2''(370mm) Distance: Spindle to Center Line 6-1/8''(156mm) Headstock Height 3-1/8''(79.4mm) Head Tilt Angle 0° Swivel angle of the headstock 360° Drive Type Belt-driven AC Motor Overall Dimensions 57''x23''x45''(1440x580x1140mm) N.W/G.W 595/653lbs(270/296kg)
