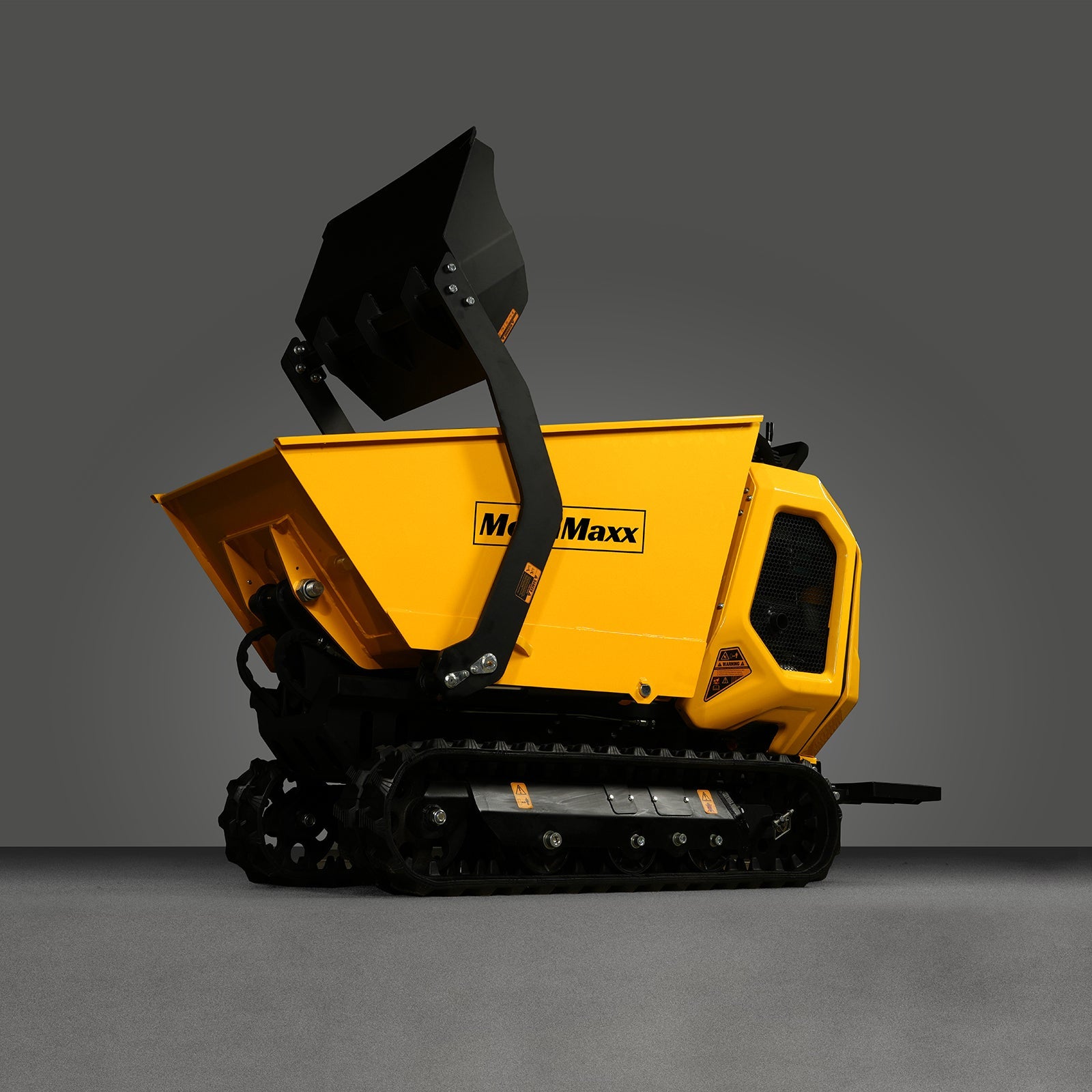

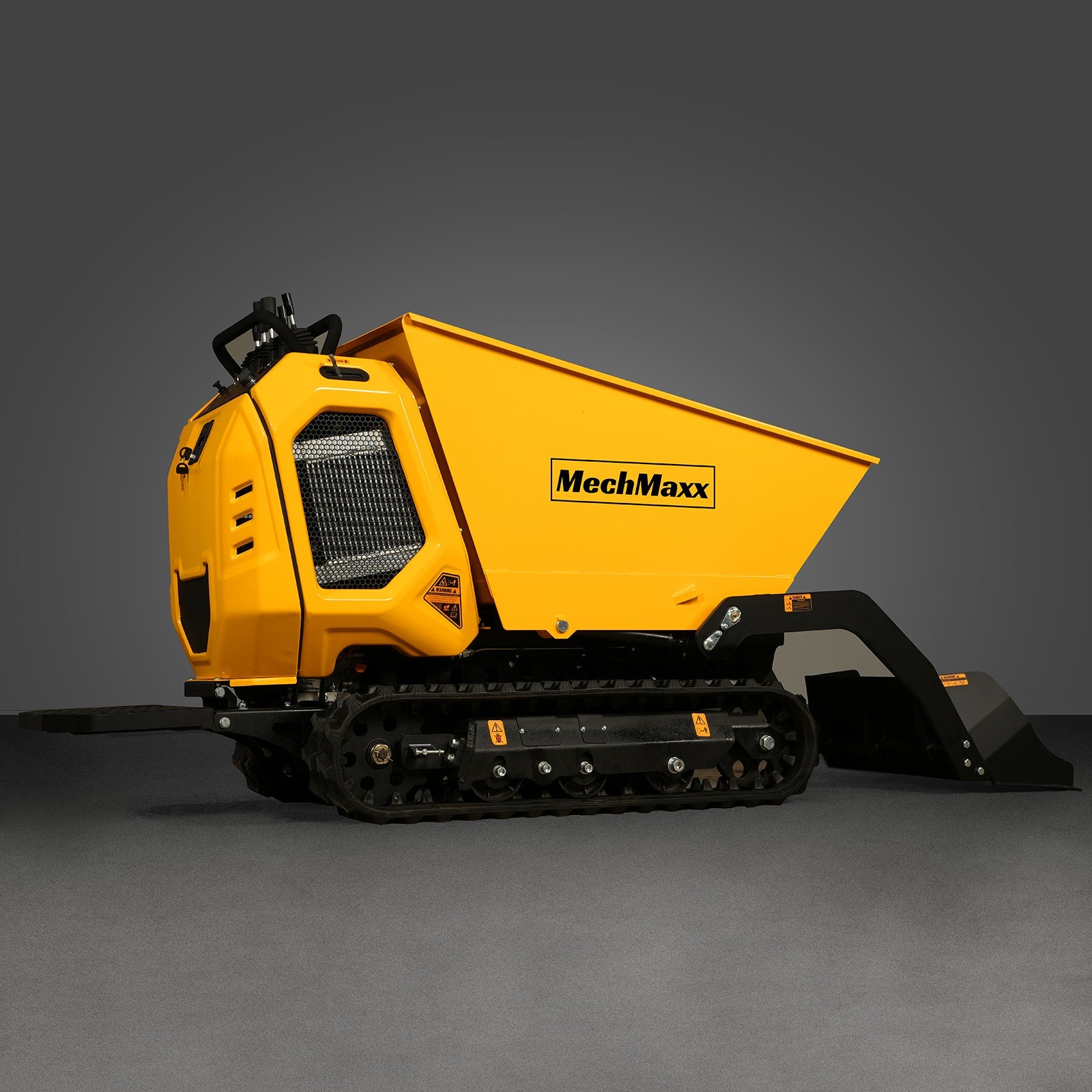

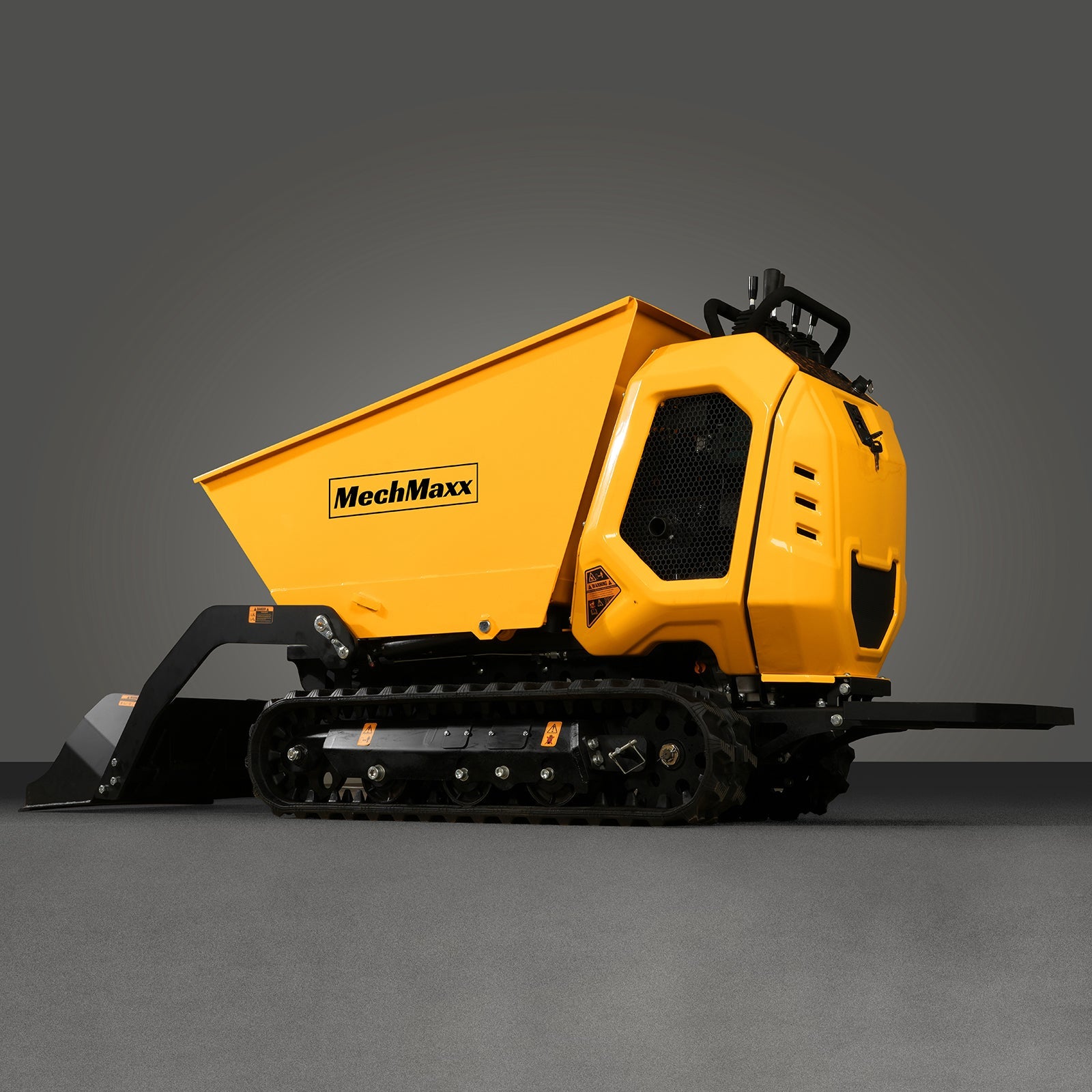

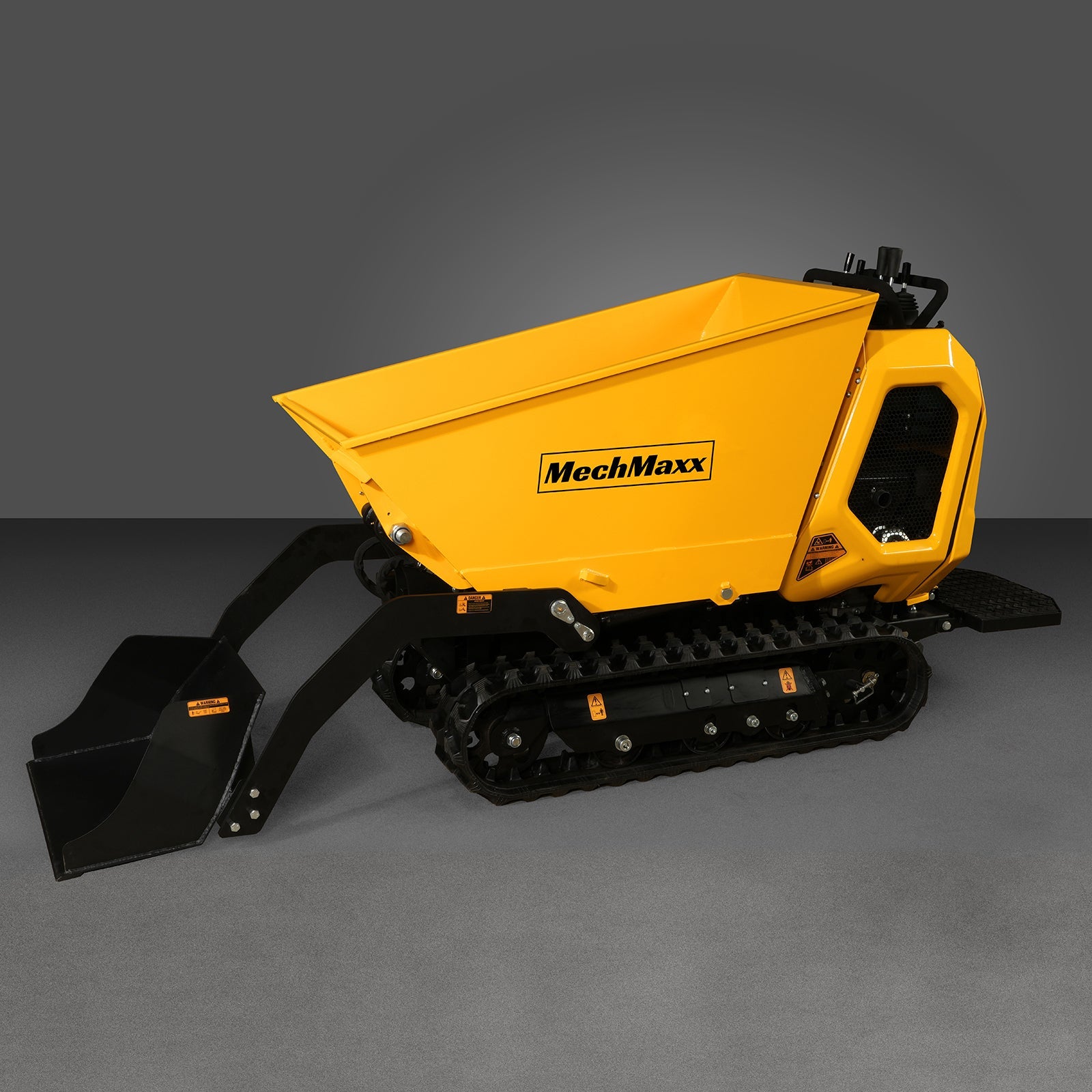

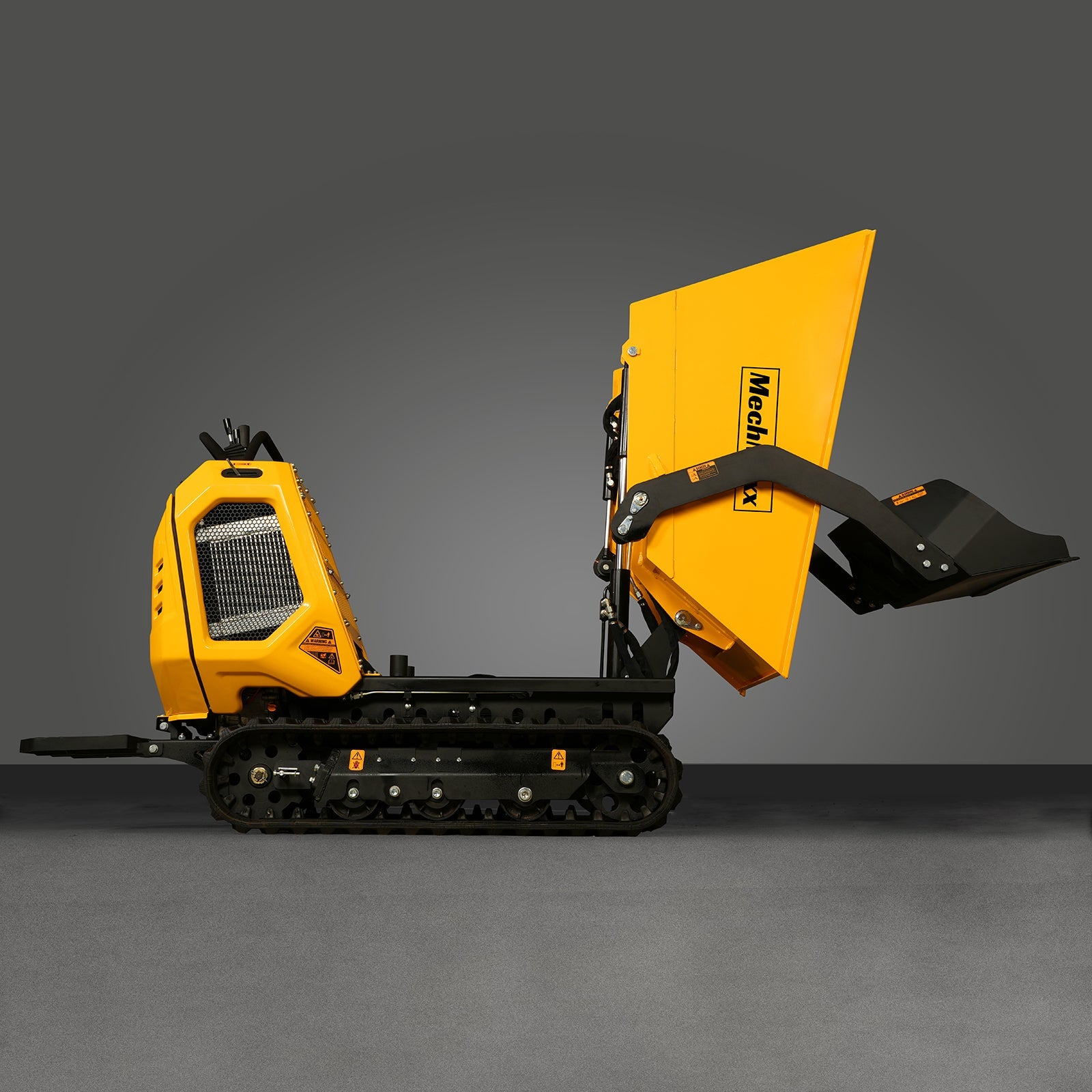

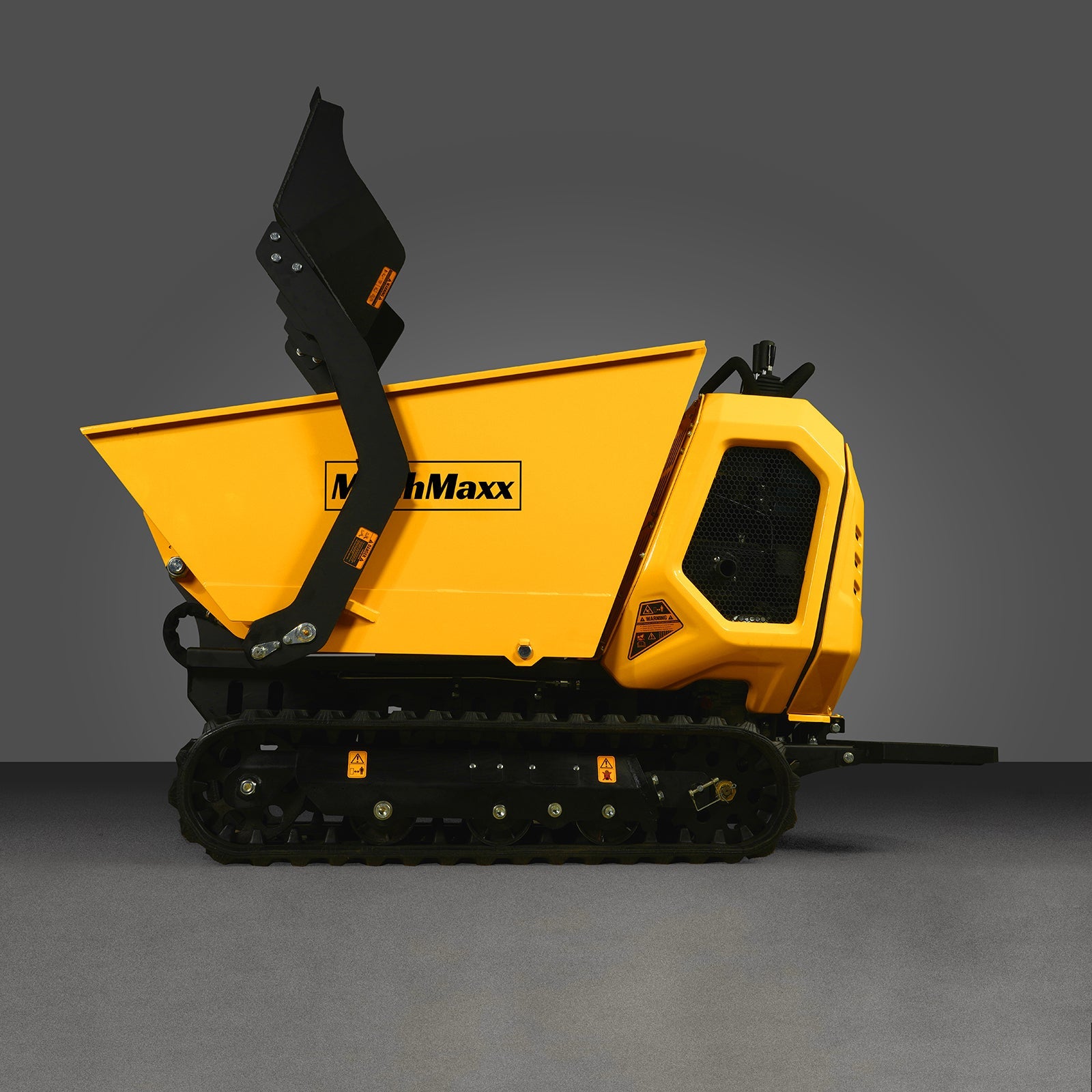

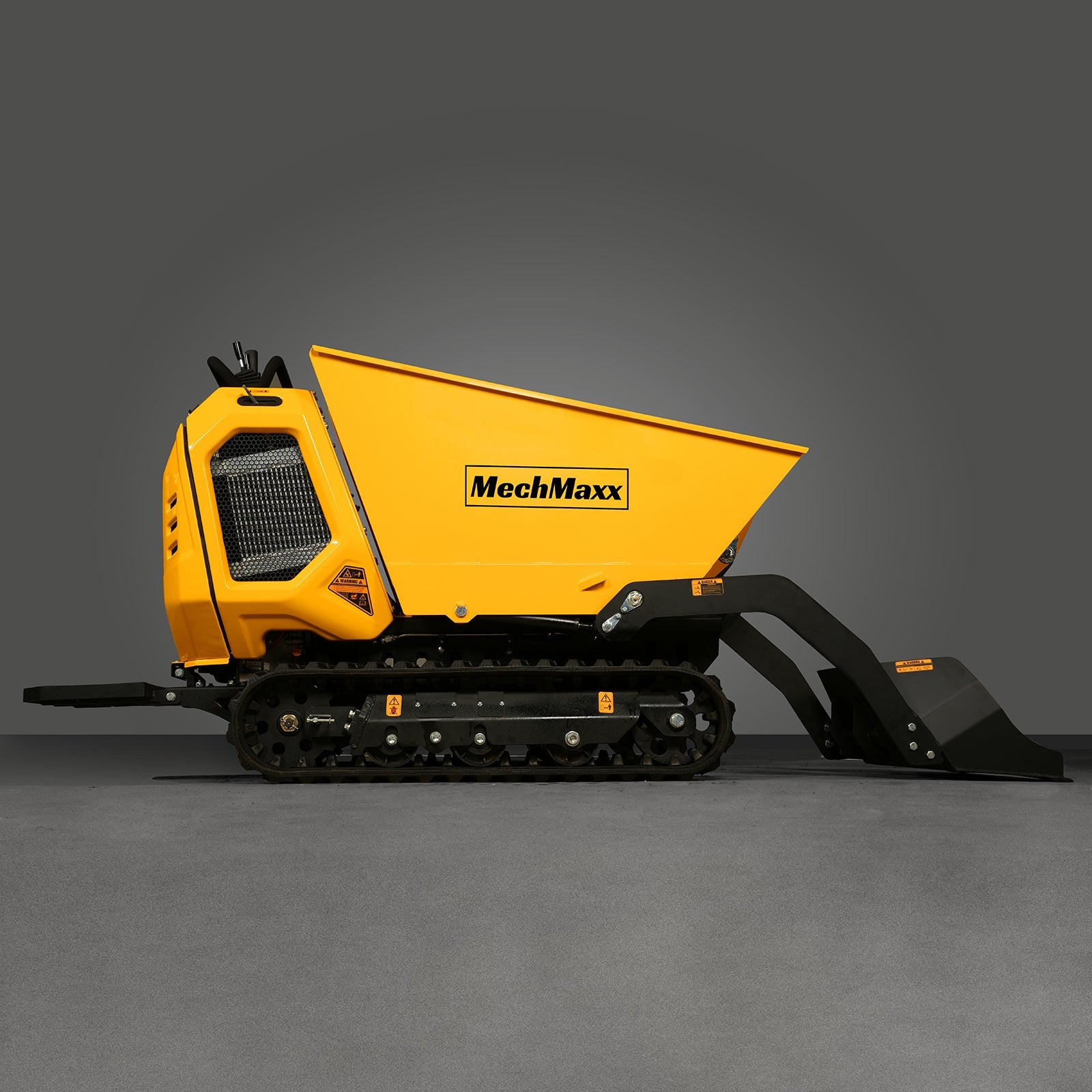

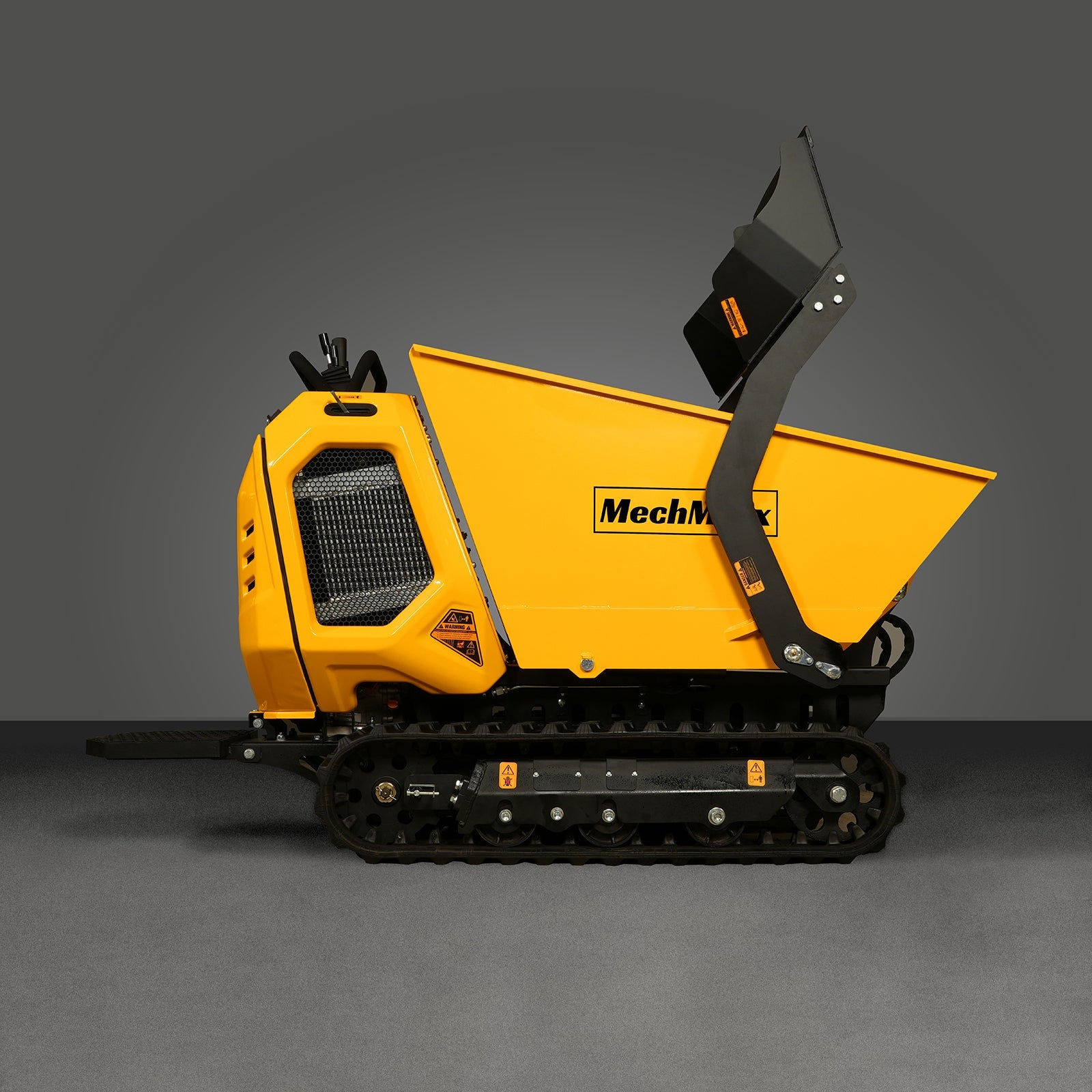

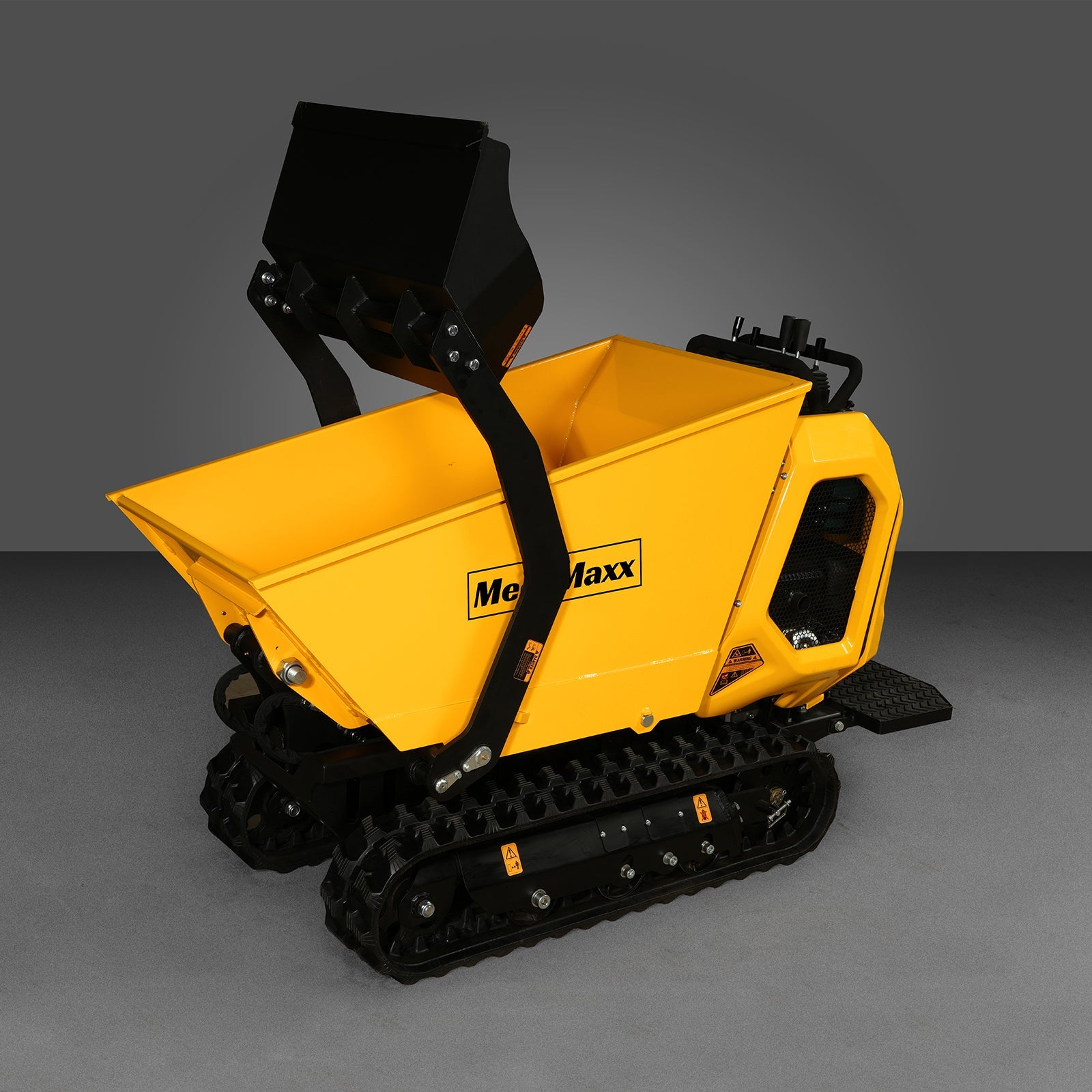

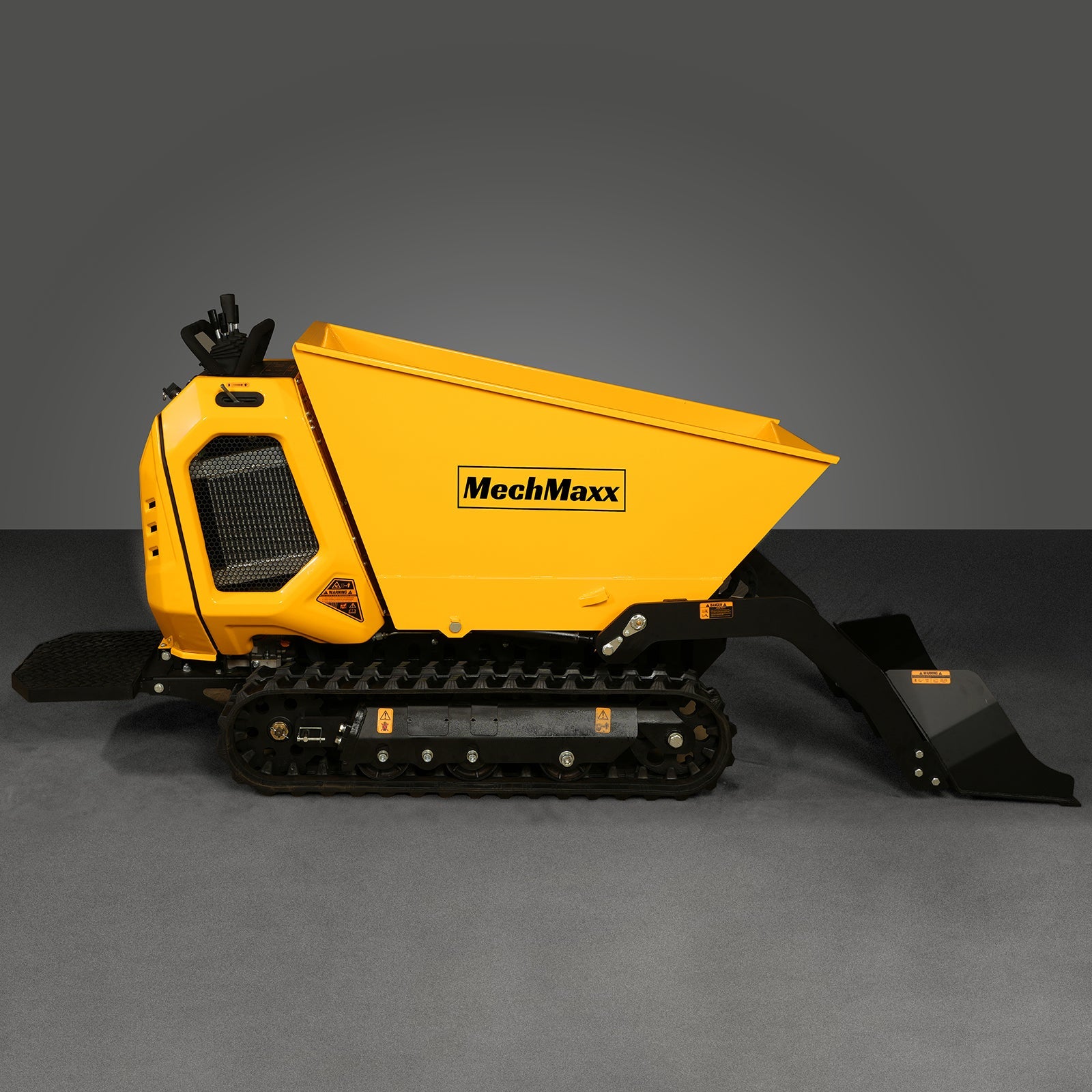

1800lb 420cc E-start Gas Engine Stand-ON Hydraulic Track Dumper with Self-Loading , T80
Sale price
$2,834.55
Regular price $6,299.00
Skip to product information
Engine
LONCIN G420F(D)
Working Type
Self Loading and Unloading
Engine Type
Single Cylinder, 4 Stroke, Air Cooled, OHV
Transmission
Hydrostatic Track Drive System
Engine Displacement
420 cc
Parking Brake
Yes
Horsepower
15 HP
Operator Platform
Stand-On
Engine Power
9.0 kw / 3600 RPM
Max.Travel Speed
0-2.73 mph
Start
E-Start
Min. Travel Speed
0-1.37 mph
Maximum Torque
26.5 N·m / 2500 RPM
Max. Gradeability
0.3
Loading Capacity
1800 lbs
Ground Pressure (with Operator)
2.9 Psi (20 Kpa)
Wheelbase
39 in
Hydraulic Pressure
2900 Psi (20 Mpa)
Bucket Capacity
10.6 cu.ft.
Hydraulic Tank Capacity
6 gal
Track Width
7.09 in
Fuel Tank Capacity
1.72 gal
Track Length
51.2 in
Battery Capacity
12 V 20 Ah
Track Height
11.8 in
Pump Type
Triple Gear Pump
Shovel Height
63.8 in
Overall Length (W/O Shovel)
80 in
Dump Front End Height
33.3 in
Overall Length with Shovel
108 in
Dump Back End Height
43.3 in
Overall Height
48 in
Dump Width
24.3 in
Overall Width
29 in
Console Height
40.2 in
Weight (N.W / G.W)
1253 / 1385 lbs
Platform Ground Clearance
10.4 in
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
