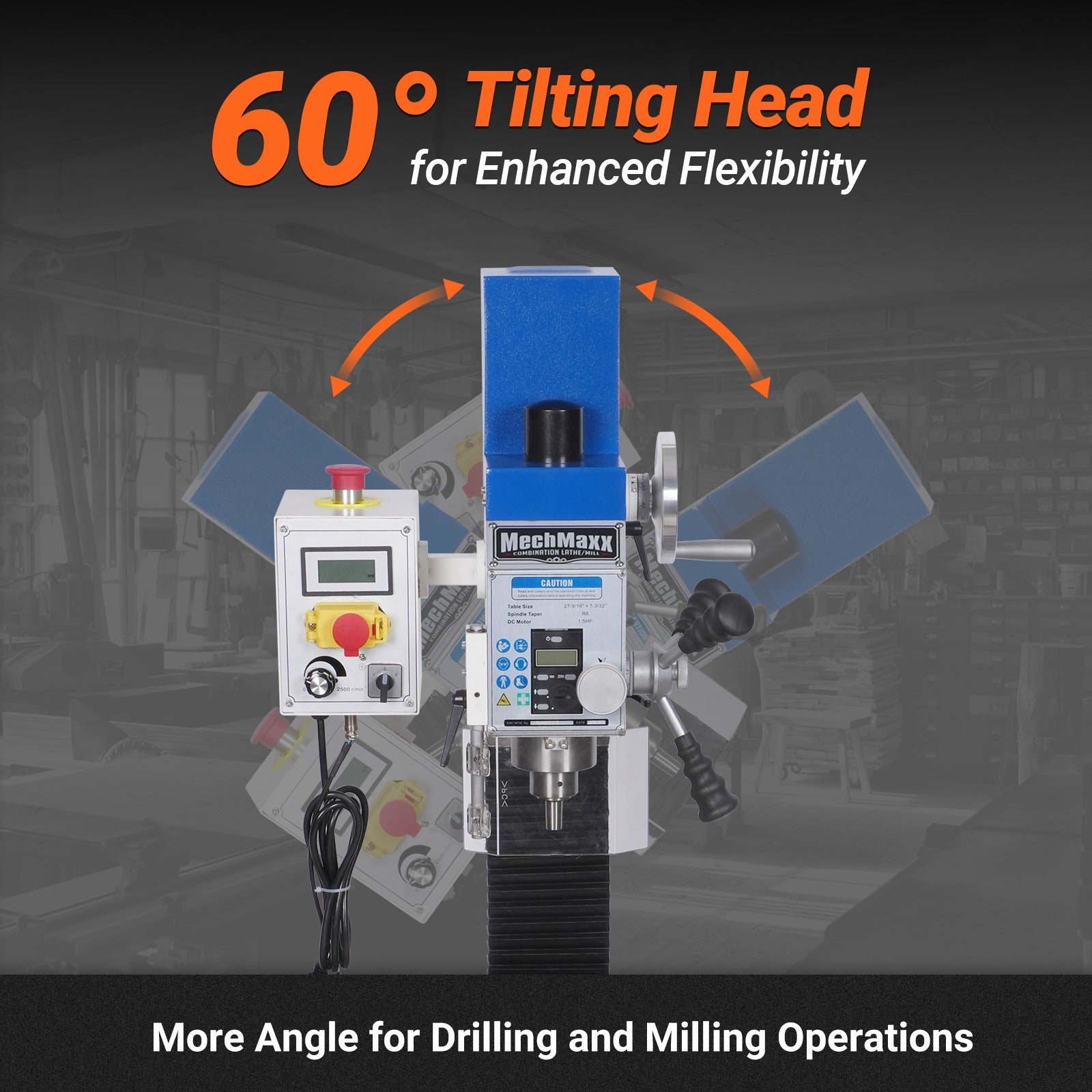

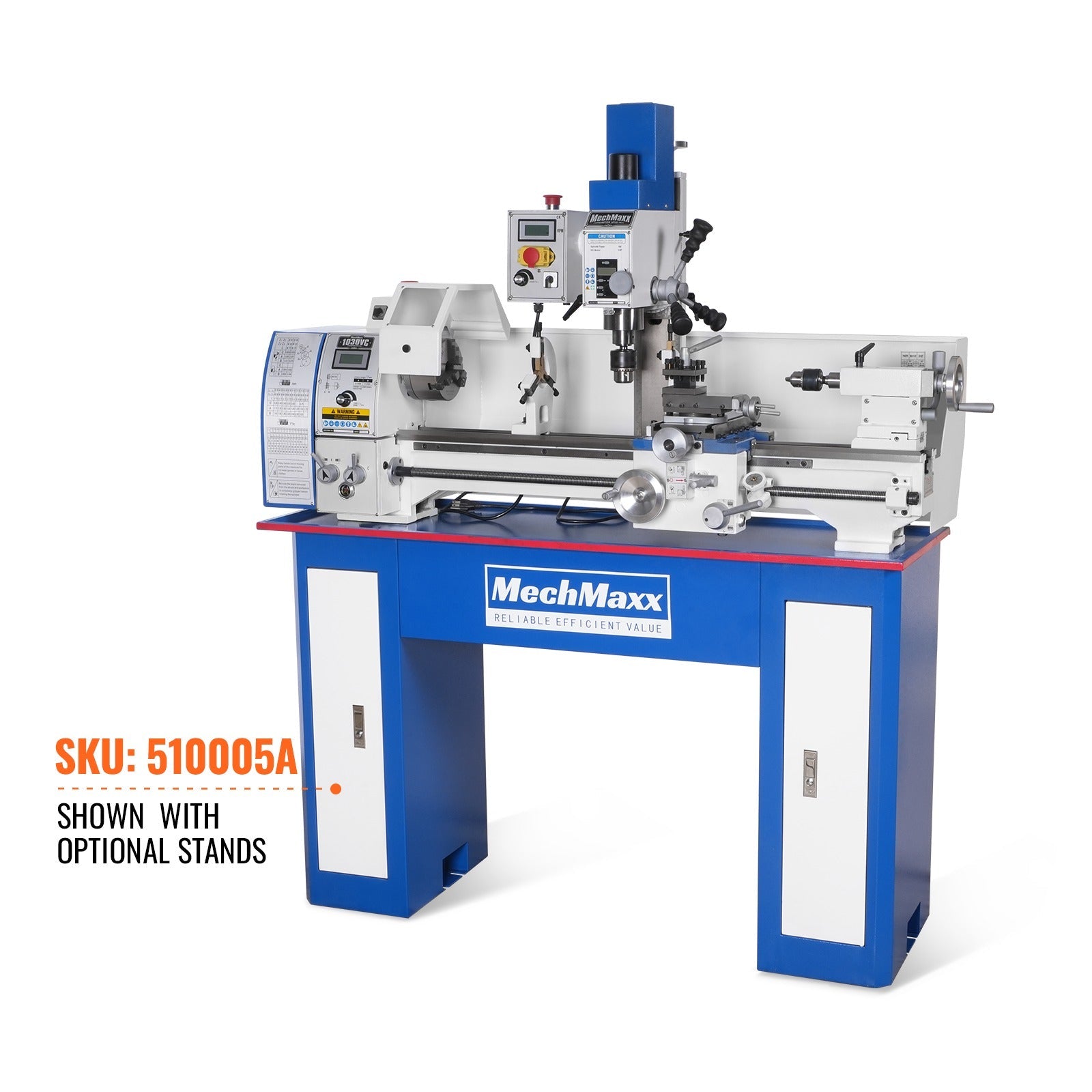

2 HP 11'' x 30'' Combination Lathe Milling Drilling Machine Brushless Motor, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1130VC

2 HP 11'' x 30'' Combination Lathe Milling Drilling Machine Brushless Motor, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1130VC

$2,249.55 $4,999.00
Skip to product information
2 HP 11'' x 30'' Combination Lathe Milling Drilling Machine Brushless Motor, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1130VC
  • 2 HP 11'' x 30'' Combination Lathe Milling Drilling Machine Brushless Motor, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1130VC
  • 2 HP 11'' x 30'' Combination Lathe Milling Drilling Machine Brushless Motor, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1130VC
  • 2 HP 11'' x 30'' Combination Lathe Milling Drilling Machine Brushless Motor, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1130VC
  • 2 HP 11'' x 30'' Combination Lathe Milling Drilling Machine Brushless Motor, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1130VC
  • 2 HP 11'' x 30'' Combination Lathe Milling Drilling Machine Brushless Motor, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1130VC
  • 2 HP 11'' x 30'' Combination Lathe Milling Drilling Machine Brushless Motor, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1130VC
  • 2 HP 11'' x 30'' Combination Lathe Milling Drilling Machine Brushless Motor, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1130VC
  • 2 HP 11'' x 30'' Combination Lathe Milling Drilling Machine Brushless Motor, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1130VC
  • 2 HP 11'' x 30'' Combination Lathe Milling Drilling Machine Brushless Motor, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1130VC
  • 2 HP 11'' x 30'' Combination Lathe Milling Drilling Machine Brushless Motor, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1130VC
2 HP 11'' x 30'' Combination Lathe Milling Drilling Machine Brushless Motor, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1130VC

2 HP 11'' x 30'' Combination Lathe Milling Drilling Machine Brushless Motor, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1130VC

$2,249.55 $4,999.00
Lathe Parameter Motor Power (Lathe) 2 HP, 110V, single-phase, 20A Swing Over Bed 11-2/5"(290mm) Swing Over Cross Slide 7-1/4"(185mm) Swing Over Saddle 5-3/4"(147mm) Distance Between Centers 29-1/2" (750 mm) Bed Width 7(180mm) Spindle Bore 1-1/2" (38 mm) Spindle Mount D1-4 Spindle Taper MT#5 Tailstock Taper MT#3 Tailstock Quill Travel 3-1/8"(85mm) Tailstock Offset Carriage Travel 27-1/2" (700 mm) Cross Slide Travel 5-3/4"(147mm) Compound Slide Travel 3-3/8" Spindle Speed Range 0–2000 RPM Number of Speed Ranges Variable Longitudinal Feed Rate 0.017-0.25mm/R(0.0007-0.0098 in./rev.) Transverse Feed Rate 0.07-0.53mm/r(0.0027-0.02in./rev) Leadscrew Size & Pitch 20mm(8TPI) Threading Capacity – Inch 8-56TPI(21KIDS) Threading Capacity – Metric 0.4-3.5 mm(12kids) Thread Dial Indicator YES Tool Post Type 4-way Max Tool Bit Size 15/32''(12mm) Mill/Drill Head Specifications Motor Power (Mill Head) 1.5HP(1100W) Spindle Taper R8 Spindle Speed Range 0-2500RPM Spindle Travel (Quill Stroke) 2"(50mm) Quill Diameter Ø60 mm Drawbar Thread Size 7/16"-20 Drilling Capacity 1''(25mm) End Milling Capacity 5/8"(16mm)  Face Milling Capacity 2-1/2"(63mm) Vertical Travel (Z-Axis) 14-1/2"(370mm) Head Tilt Angle ±90° Distance: Spindle to Table 14-1/2"(370mm) Distance: Spindle to Column 7-1/2"(190mm) Column Type Dovetail Slot Drive Type Belt Drive Brushless Machine Dimensions & Utilities Electrical Requirements 110V 1PHASE Overall Dimensions 55''x29''x42''(1400x720x1050mm) Net / Gross Weight 638/726lbs(290/330kg) Shipping Dimensions 59''x30''x42''(1500x750x1050mm)
