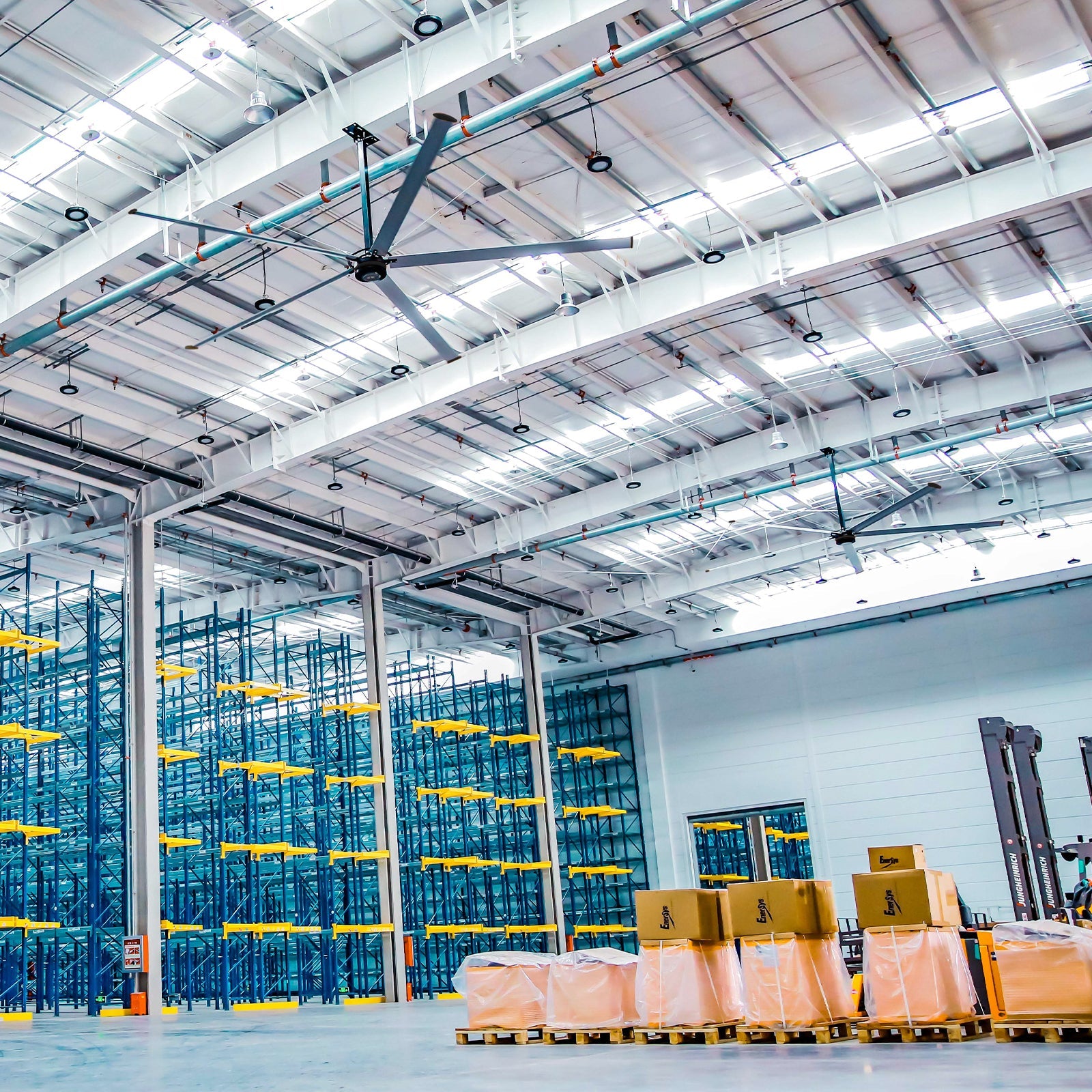

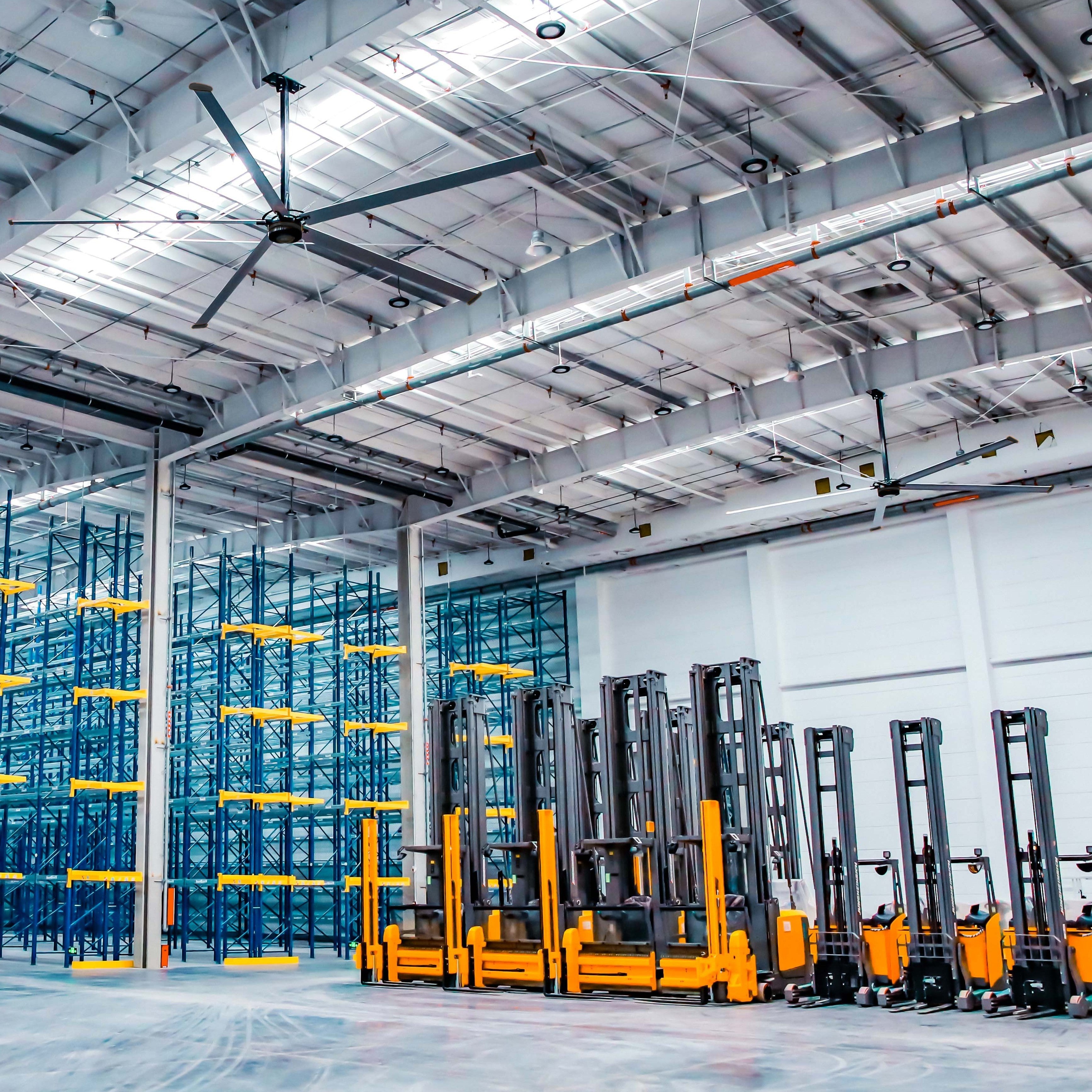

24FT HVLS Industrial Ceiling Fan 208-240V 1Ph - Energy Efficient Large Area Air Circulation Fan for Warehouses & Factories, 24FT1PH
Sale price
$1,889.55
Regular price $4,199.00
Skip to product information
Model
24FT1PH
Certifications
cULus,CE,SAA
Fan Diameter
24FT
Number of Blades
5
Cooling Coverage
16146ft²
Voltage
220V ±10% 1Ph
Full Load Current
4.9 A
Fan Watts
1.5KW
RPM Range
10-54 RPM
Air Flow@Max Speed
549,144 CFM
Drive Motor
Permanent Magnet Synchronous Motor
Speed
Variable Speed
Drive Type
Direct
Blade Material
Al-Mg
Fan Weight
273LBS
Noise Level
＜40dB
Protection Level(Motor)
IP55
Standard Includes
I-Beam Structure Mounting Kits;
59" Extension Tube;
Control Cabinet;
131Wire Conduit;
131'Wire Rope;
164' UL Listed Wire.
Packing Size
Box A:34.6"x31.5"x20.9"
Box B:135.4"x13.4"x10.6"
Gross Weight
Box A: 356 LB
SBox B: 178 LBS
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
