3-Point PTO Stump Grinder & 22" Portable Sawmill & Forestry Log Skidding Winch Bundle,SG24 & SM22 &FW8800
Sale price
$2,383.65
Regular price $5,297.00
Skip to product information
3-Point PTO Stump Grinder
Flywheel Diameter
24 in
Mounting
3 Point Hitch Cat. 1 (Quick Attach Compatible)
Flywheel Thickness
3/4 in
PTO Input
540 RPM
Carbid Tip
34 PCS
Max. Torque
1200 N·m
Carbid Tip Material
YG11C
PTO Shaft Weight
44 LBS
Tip Holder Material
42CrMo
Dimensions
29 × 37 × 38 in
PTO HP Required
15–45 HP
Packing
Iron Frame + Carton
PTO Shaft (Included Shipping)
1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch
Weight (N.W/G.W.)
450/563 LBS
Friction Torque Limiter (Slip Clutch)
Included

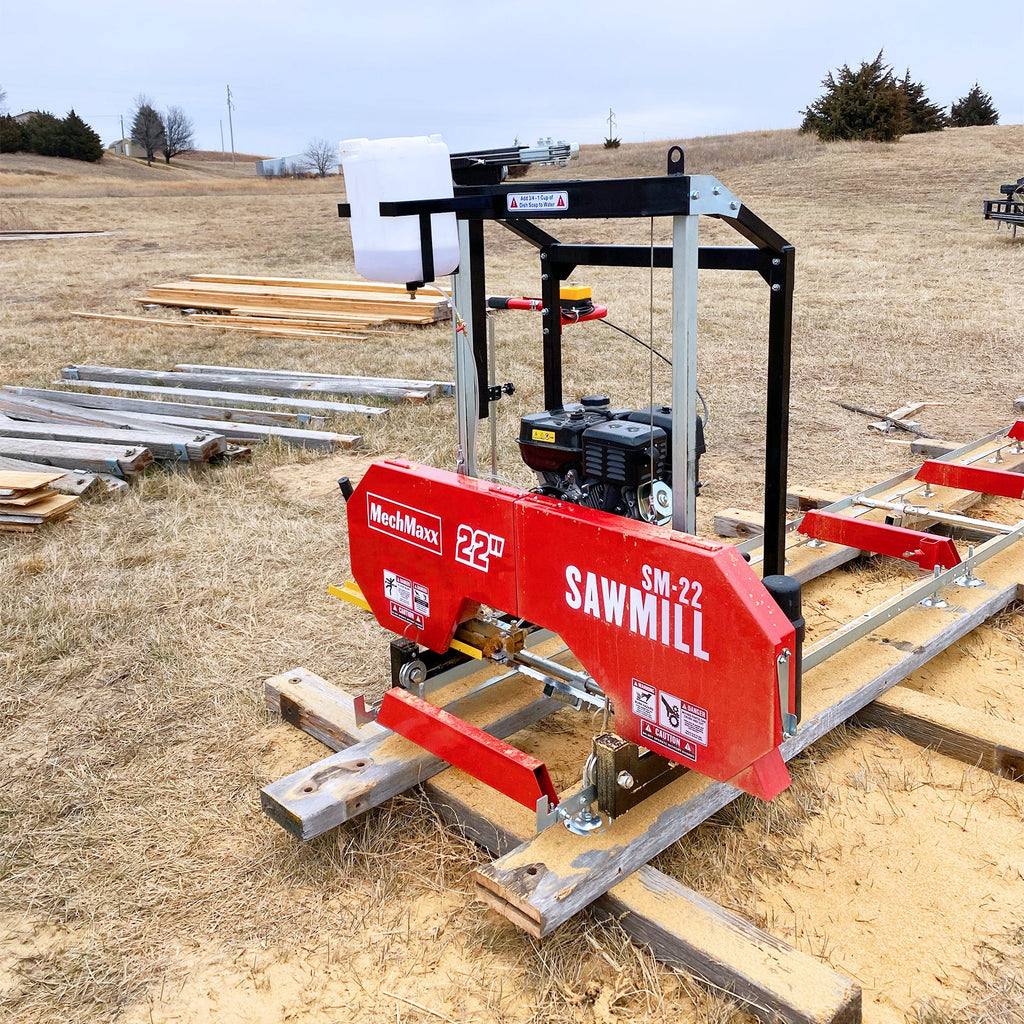

22" Portable Sawmill
Engine
DUCAR DH275
Lubricant Tank Size
2.6 gal
Engine Type
Single Cylinder, 4 Stroke, Air-Cooled, OHV
Track Load-Bearing
2 ton
Engine Displacement
274 cc
Track Width
2 ft 2 in
Horsepower
8.1 HP
Track Length
13 ft
Start
Recoil
Track Extension Length
6.4 ft
Log Diameter
22 in
Leveling Feet
12
Max Live Edge Width
18 in
Log Rests
2 Long and 2 Short Rests
Standard Cutting Length
10.4 ft
Log Clamps
2 x Quick Lock
Max Board Thickness
6 in
Track Bunks
1.6 x 3.9 in
Blade Engagement System
Centrifugal Clutch
4 Post Head Design
Yes
Cast Iron Bandwheel Diameter
16.5 in
Finish
Powder Coat Paint Galvanized Steel
Blade Wheel Engagement
Belt Drive
Sawmill Warranty
2 Years
Blade Guide
By Roller
Engine Warranty
1 Year
Blade Tension
By Adjustable Lever
Package Method
Wood
Blade Size
127 x 1.3 in
Packing Size
87 x 19 x 32 in
Blade Pitch
7/8 in
Weight (N.W./G.W.)
509/600 lbs
Blade Lubrication
Water Lube - Manual Valve

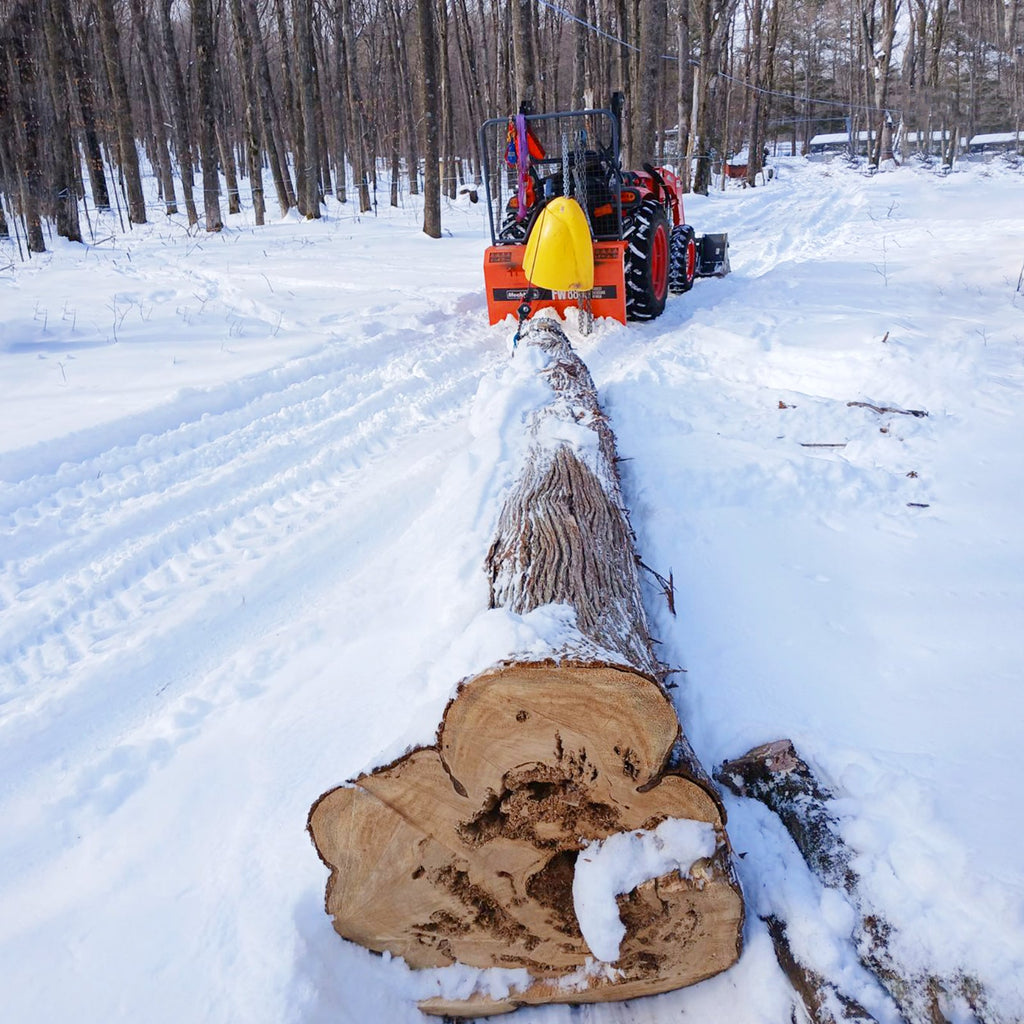

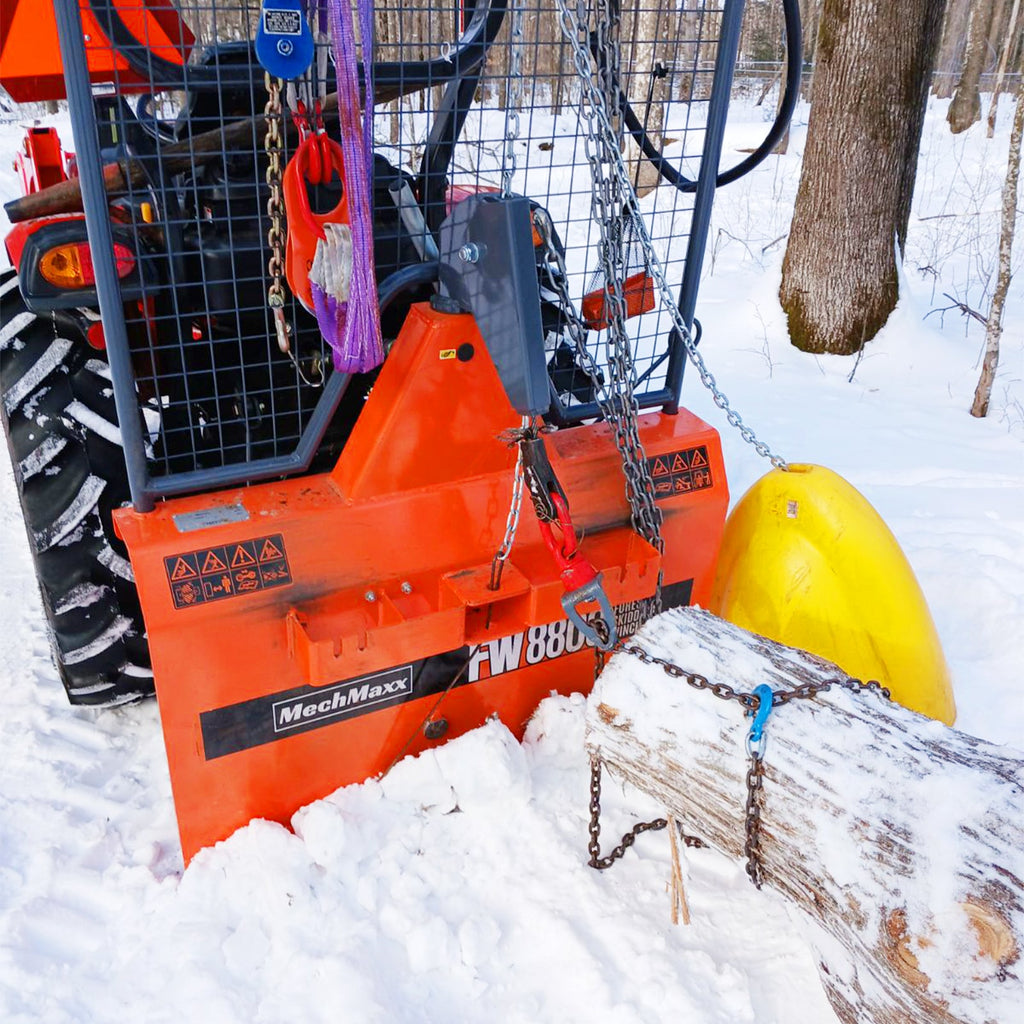

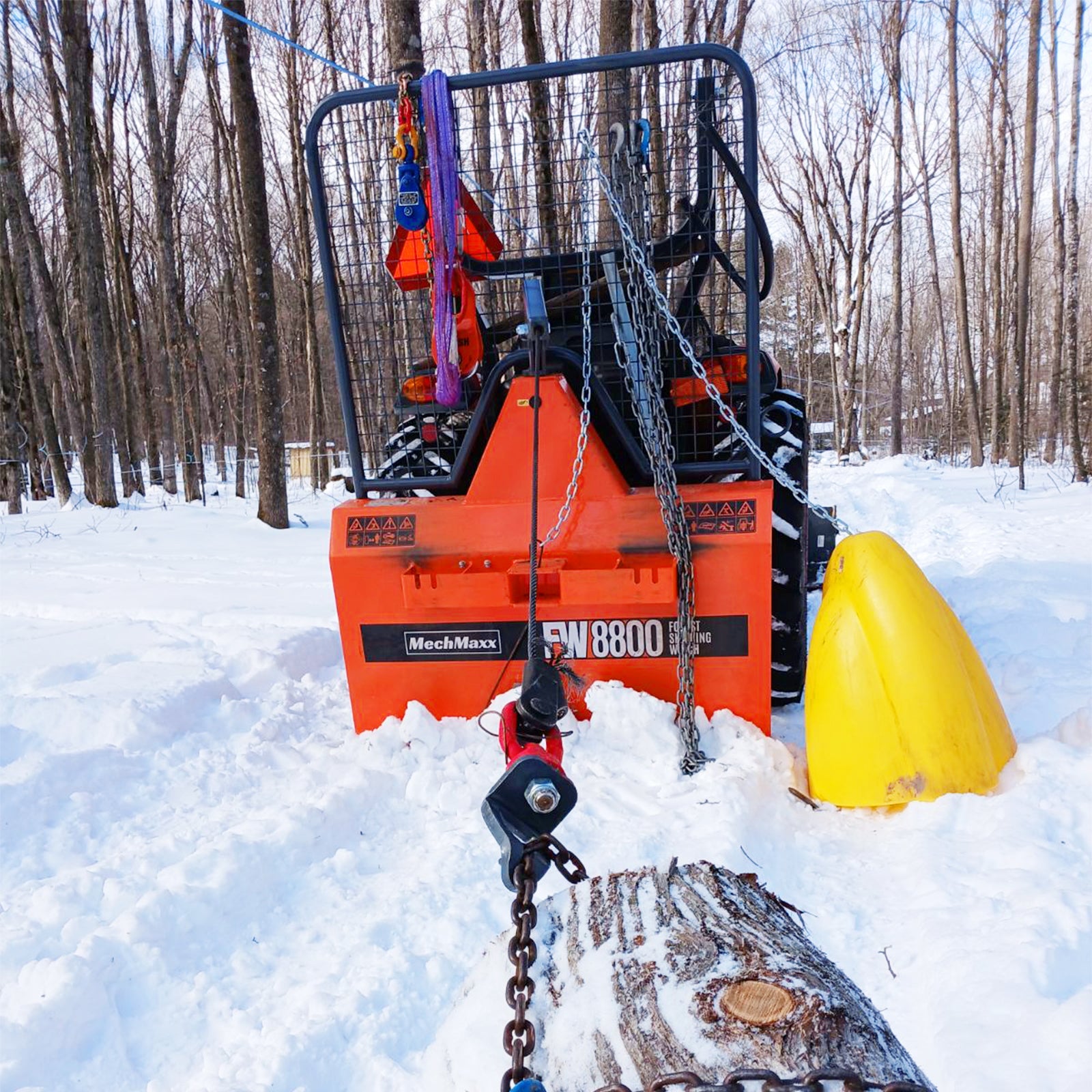

Forestry Log Skidding Winch
Recommended Tractor Power
25-60hp
Pulling Capacity
8800lbs
Winch Type
Mechanical, Dry Disc Clutch
Average Winching Speed
180 ft/minute
Cable Length
200 ft
Cable Diameter
3/8 in
Cable Type
Steel
Tractor CAT
CAT 1
PTO Input Speed
540 RPM
PTO Shaft
1-3/8in 6 Spline Tractor， With Shear Bolt
Dimensions
47 X 20 X 71 in
Packing Size
49 x 21 x 73 in
Weight (N.W/G.W.)
602/659 lbs
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
