3-Point PTO Stump Grinder & 6", 3 Point Hydraulic PTO Wood Chipper Bundle, SG24 & WC68H
Sale price
$1,799.10
Regular price $3,998.00
Skip to product information
3-Point PTO Stump Grinder
Flywheel Diameter
24 in
Mounting
3 Point Hitch Cat. 1 (Quick Attach Compatible)
Flywheel Thickness
3/4 in
PTO Input
540 RPM
Carbid Tip
34 PCS
Max. Torque
1200 N·m
Carbid Tip Material
YG11C
PTO Shaft Weight
44 LBS
Tip Holder Material
42CrMo
Dimensions
29 × 37 × 38 in
PTO HP Required
15–45 HP
Packing
Iron Frame + Carton
PTO Shaft (Included Shipping)
1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch
Weight (N.W/G.W.)
450/563 LBS
Friction Torque Limiter (Slip Clutch)
Included

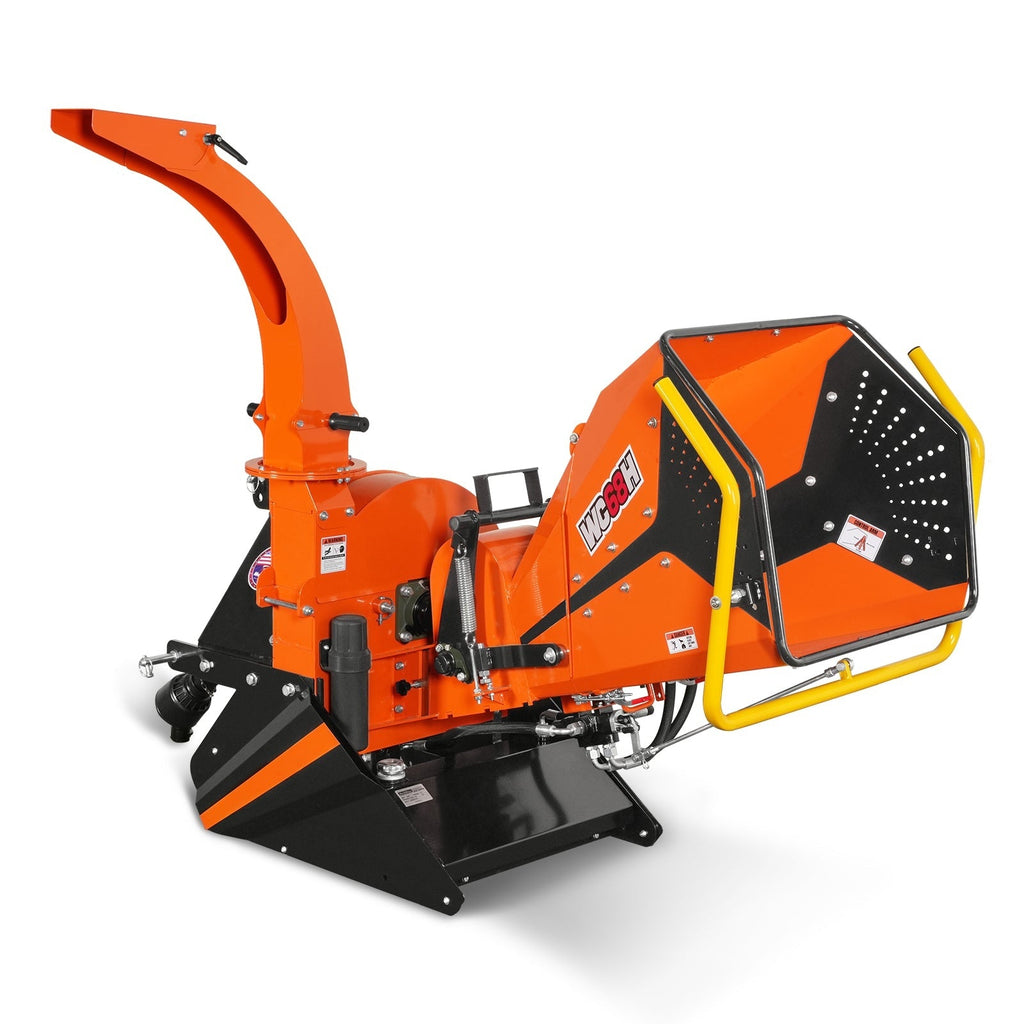

3 Point Hydraulic Wood Chipper
Required PTO HP
20 - 50HP
Flywheel Housing System
Easy To Open Clamshell
Chipping Diameter
6in
Flywheel Housing Thickness
0.3in
In-feed Chute Opening
25.6 x 25.2 in
Flywheel Shaft
2in
In-feed Opening
6 x 8in
Hydraulic Oil
5.3 gal of ISO 32 or ISO 46 (warmer climates)
In-feed Chute
Quick folding for transport/storage
Hydraulic Pump
Yes - Belt Driven
In-feed System
Self Contained Hydraulic System
Discharge Chute
360 Degree Swivel
In-feed Drive
Forward/Neutral/Reverse with Variable Speed: (0-75 ft/min)
PTO Shaft
Shear Pin Protected PTO Shaft Included
In-feed Roller Size
8in Chisel Tooth
PTO Shaft Length
T4/31.1-38.3 in
In-feed Roller Pressure
Adjustable via Spring Tension
Number of Blades
4 Reversible Blades
Quick Hitch Compatible
Cat 1 Quick Hitch
Finish
Powder Coat Paint
3 Point Hitch
CAT1
Warranty
1 Year
Flywheel Speed
540 RPM
Dimensions (L x W x H)
45x33x45 in
Flywheel Drive System
Direct Drive
Net Weight
695 lbs
Flywheel Diameter
24in
Gross Weight
882 lbs
Flywheel Thickness
0.75in
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
