3-Point PTO Stump Grinder & 4" PTO Wood Chipper & Forestry Log Skidding Winch Bundle, SG24 & BX42S &FW8800
Sale price
$2,248.65
Regular price $4,997.00
Skip to product information
3-Point PTO Stump Grinder
Flywheel Diameter
24 in
Mounting
3 Point Hitch Cat. 1 (Quick Attach Compatible)
Flywheel Thickness
3/4 in
PTO Input
540 RPM
Carbid Tip
34 PCS
Max. Torque
1200 N·m
Carbid Tip Material
YG11C
PTO Shaft Weight
44 LBS
Tip Holder Material
42CrMo
Dimensions
29 × 37 × 38 in
PTO HP Required
15–45 HP
Packing
Iron Frame + Carton
PTO Shaft (Included Shipping)
1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch
Weight (N.W/G.W.)
450/563 LBS
Friction Torque Limiter (Slip Clutch)
Included

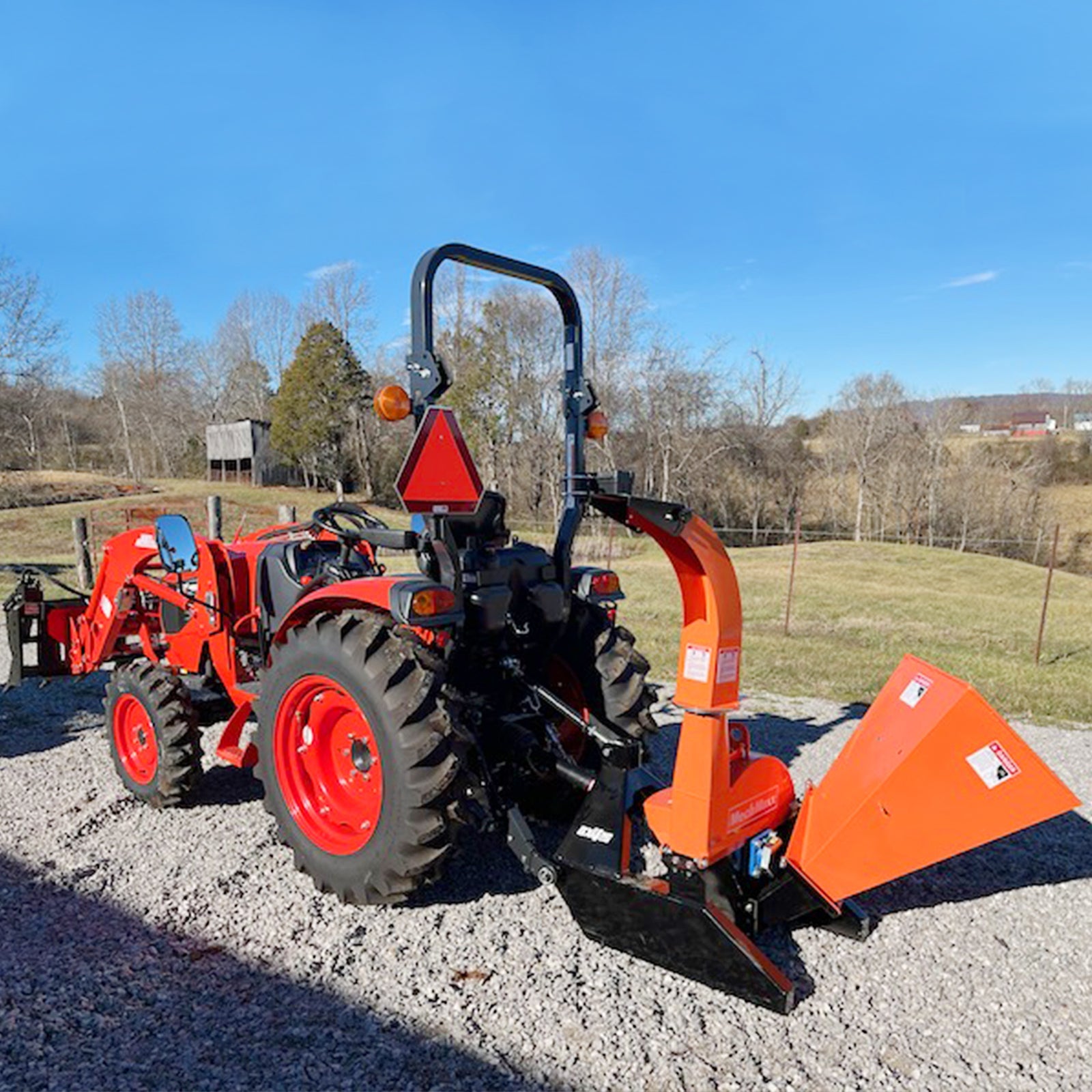

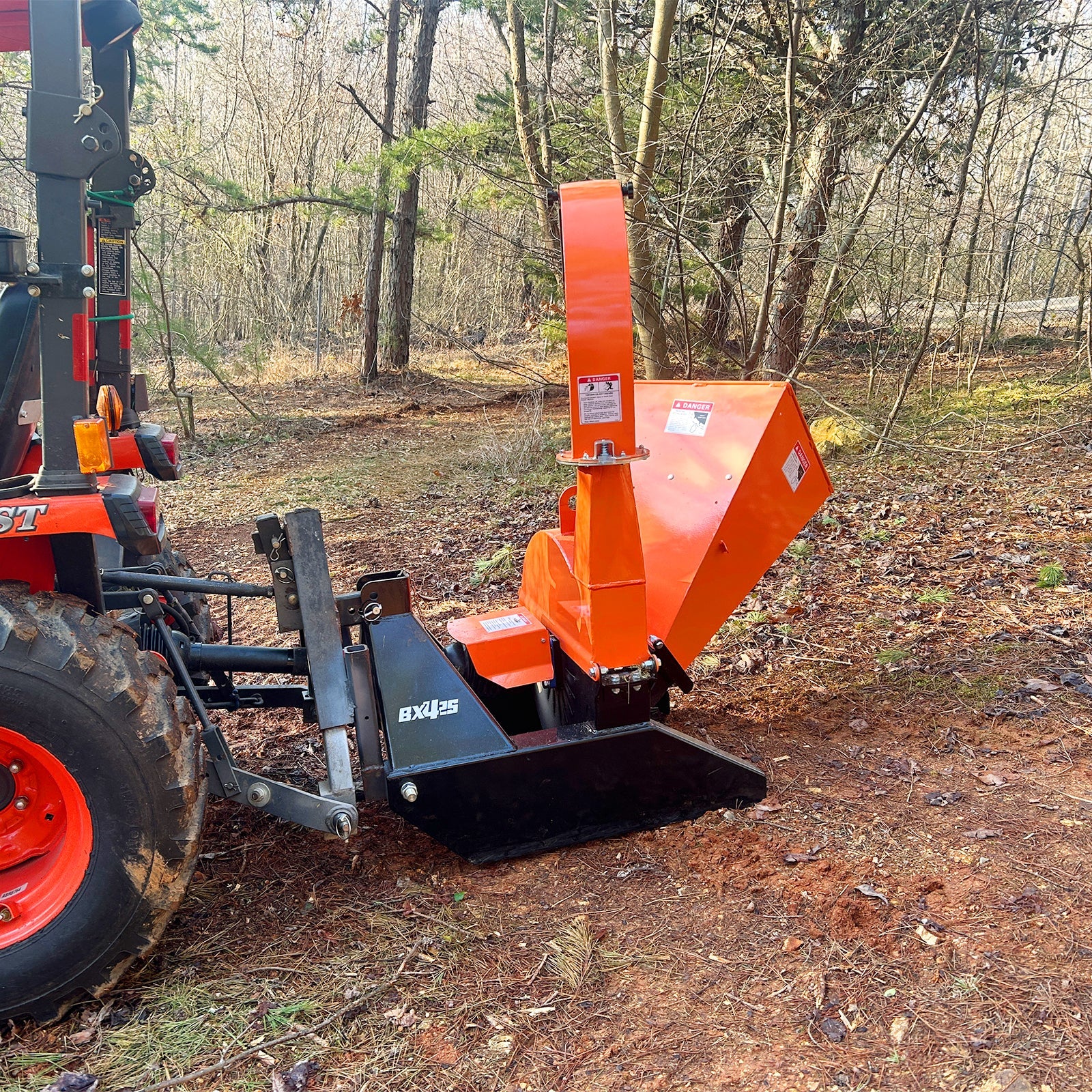

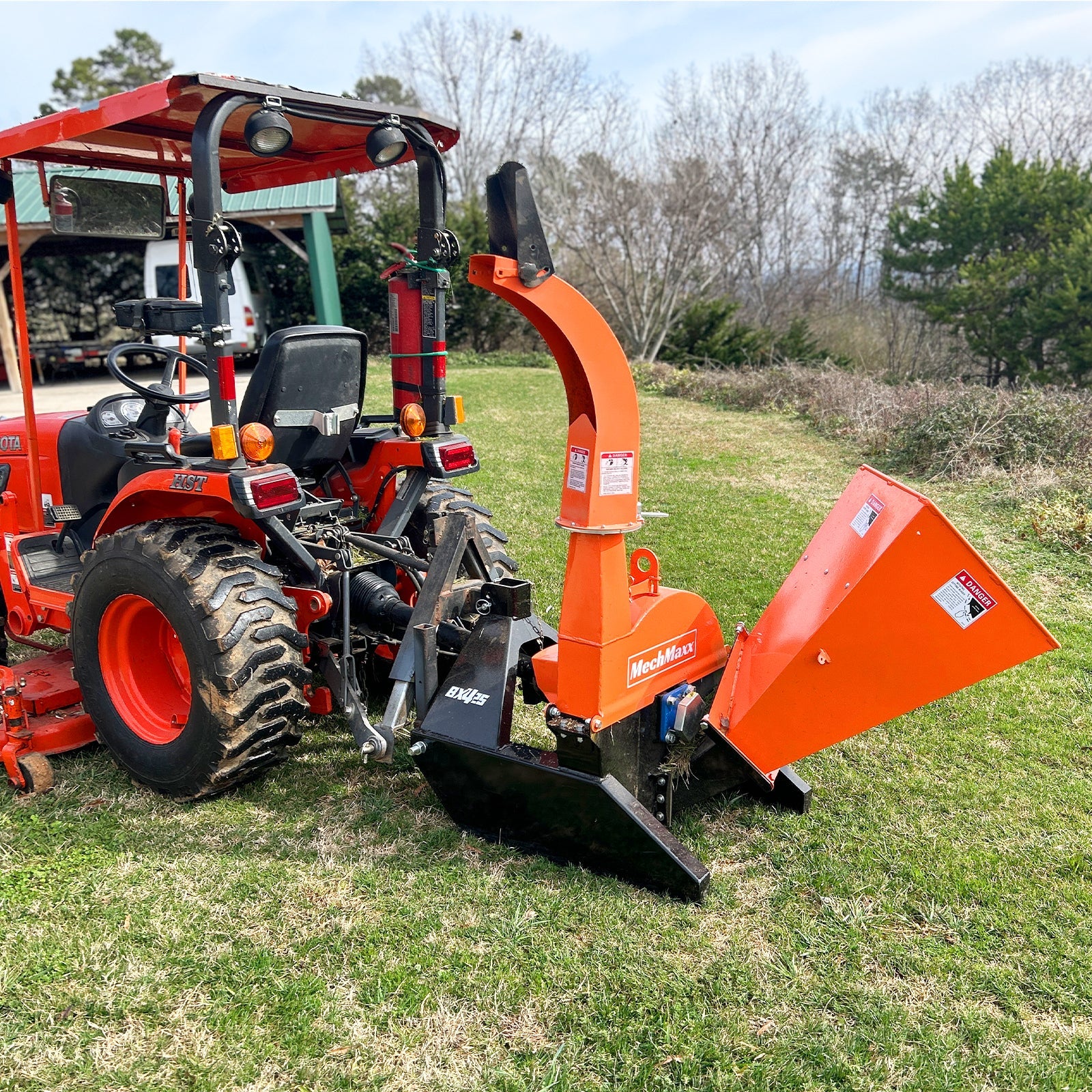

4" PTO Wood Chipper
Tractor Power
18-45HP
Blade (Tines) Material
4CrW2Si
Max. Throughput Capacity
4 in
PTO Shaft RPM
540 RPM
Infeed Opening
4*10 in
Flywheel Speed
540 RPM
lnfeed Chute Opening
20*20 in
Drive Type
PTO
Feeding Opening
Gravity Feed
Driveline Shaft Length
T5-LF-31 in with shear bolt, 31.5-43 in
Discharge Chute Rotation
360 Degrees
3-Point Hitch
CAT 1
Rotor Diameter
25 in
Dimensions (L x Wx H)
38x 33x 43 in
Rotor Thickness
0.5 in
Finsh
Powder Coat Paint Galvanized Steel
Rotor Weight
82 lbs
Warranty
1 year
Number Of Blades
4+1
Net Weight
397 lbs
Blade Weight
0.9 lbs
Gross Weight
441 lbs

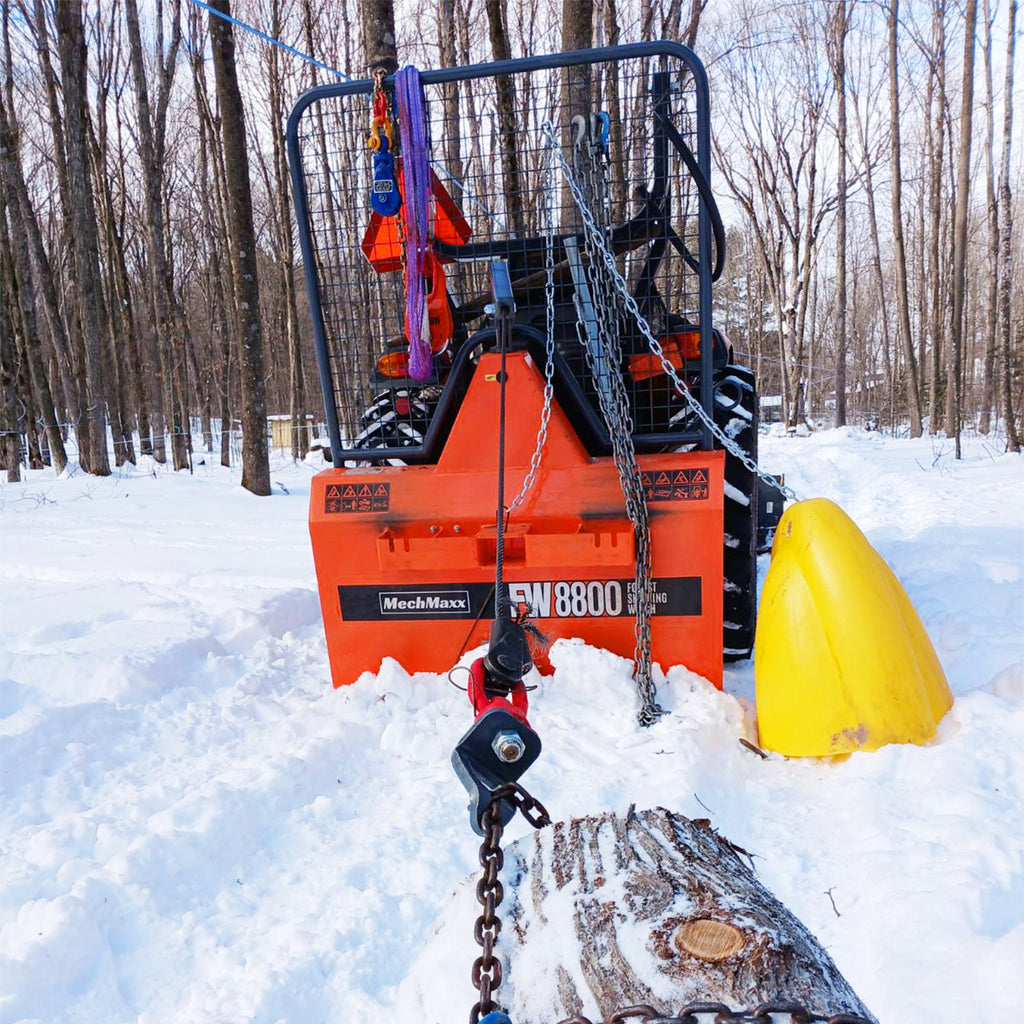

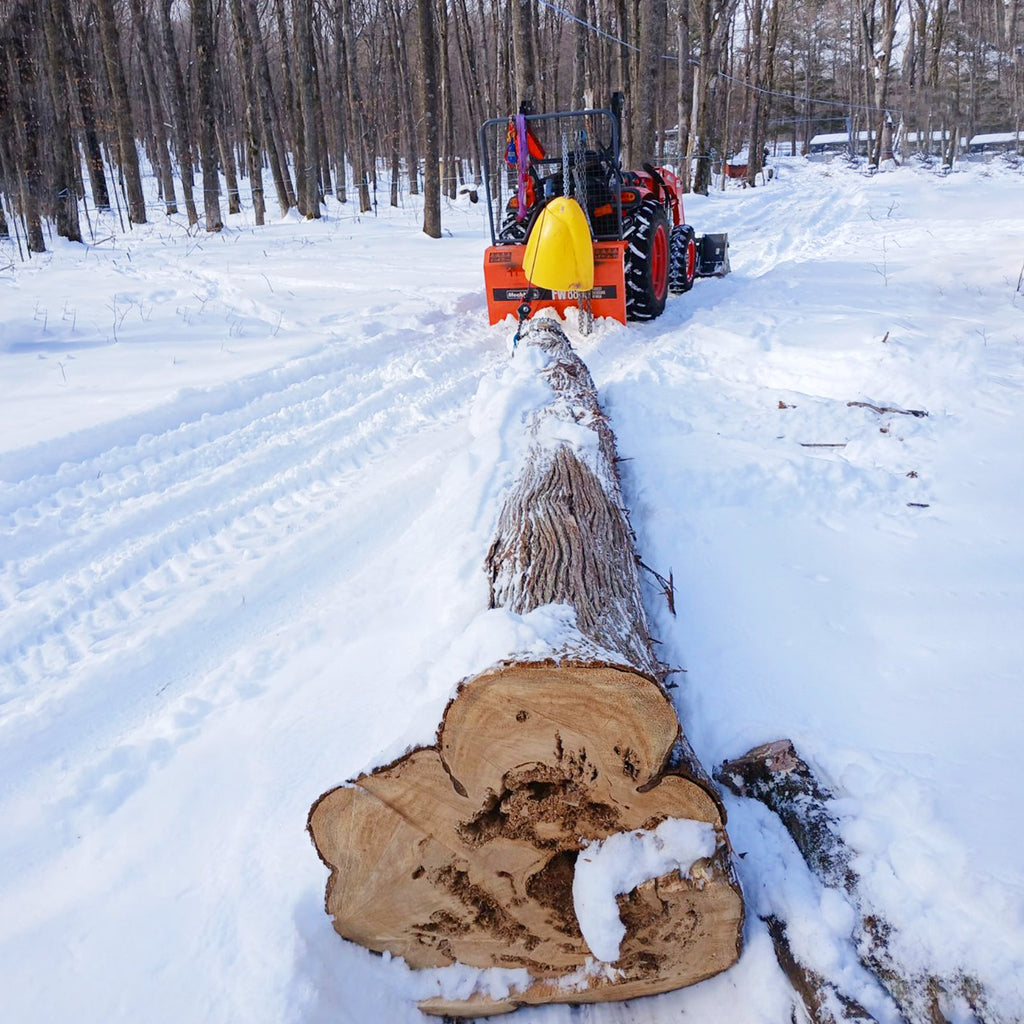

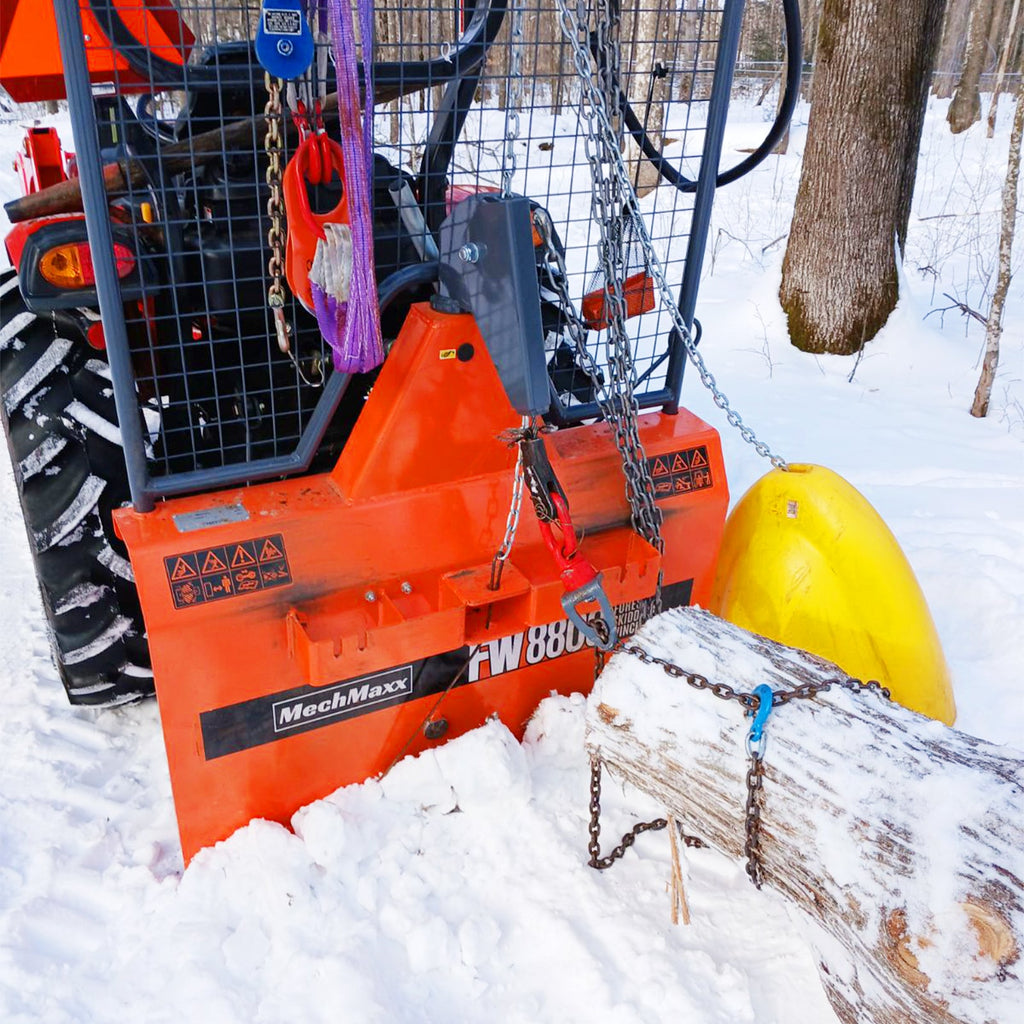

Forestry Log Skidding Winch
Recommended Tractor Power
25-60hp
Pulling Capacity
8800lbs
Winch Type
Mechanical, Dry Disc Clutch
Average Winching Speed
180 ft/minute
Cable Length
200 ft
Cable Diameter
3/8 in
Cable Type
Steel
Tractor CAT
CAT 1
PTO Input Speed
540 RPM
PTO Shaft
1-3/8in 6 Spline Tractor， With Shear Bolt
Dimensions
47 X 20 X 71 in
Packing Size
49 x 21 x 73 in
Weight (N.W/G.W.)
602/659 lbs
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
