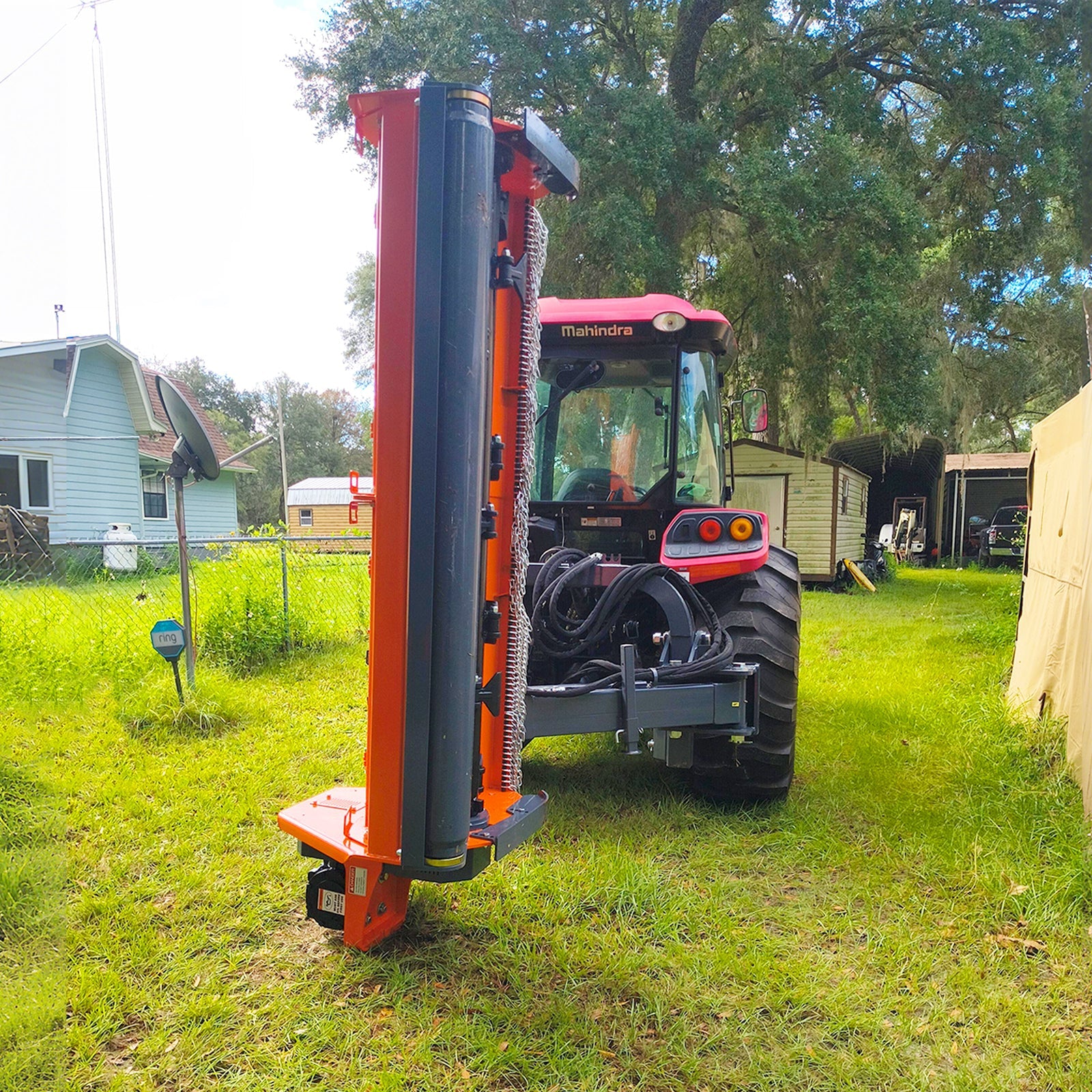

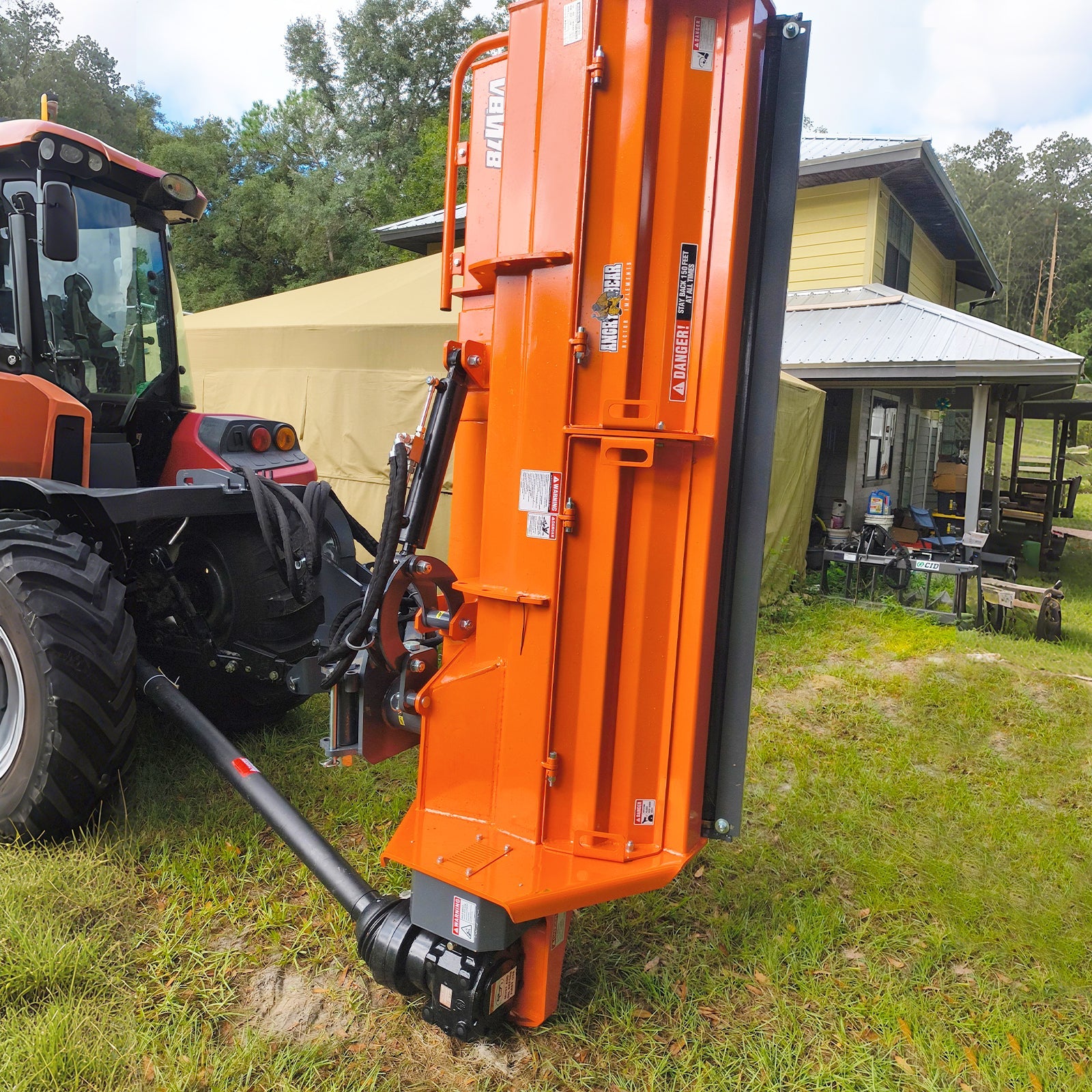

78" Heavy Duty 3 Point Offset Ditch Bank Verge Flail Mower Italy CMR Gearbox, 80-110HP, PTO Driven, VBM78
Sale price
$2,159.55
Regular price $4,799.00
Skip to product information
Engine Power Required
80-110 Hp
Rotor Diameter
5.5 in
Working Width
78 in
Rotor Thickness
0.5 in
Overall Width
94 in
Rear Roller Diameter
6 in
Blade Ground Clearance (Four Gears)
0.2-0.9-1.7-2.4 in
Rear Roller Thickness
0.25 in
Max. Cutting Diameter
Depends On The Type Of Grass
PTO Shaft Speed
540 rpm
Offset Distance from The Center (Maximum)
122 in
Deck Thickness
2 in
Tilt-Up Angle
90°
Side Plate Thickness
0.25 in
Tilt-Down Angle
55°
Driveline Shaft Length
T6-LF-73 With Shear Bolt ; 73in-126in
Number Of Blades
18
Spline End
1.375in Z6
Number of Belts
4
3-Point Hitch
CAT 2
Blade Type
Hammer
Gearbox 0il Type
85W-90
Blade Weight
2.6 lbs
Finish
Powder Coating
Blade Material
Cast Steel
Warranty
1 Year
Belt Adjustment
Bolt Tightening
Shipping Box
100x41x31 in
Working Efficiency450 cu.ft./Hr.
450 cu.ft./Hr.
Weight (N.W./G.W.)
1848 /2040 lbs
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
