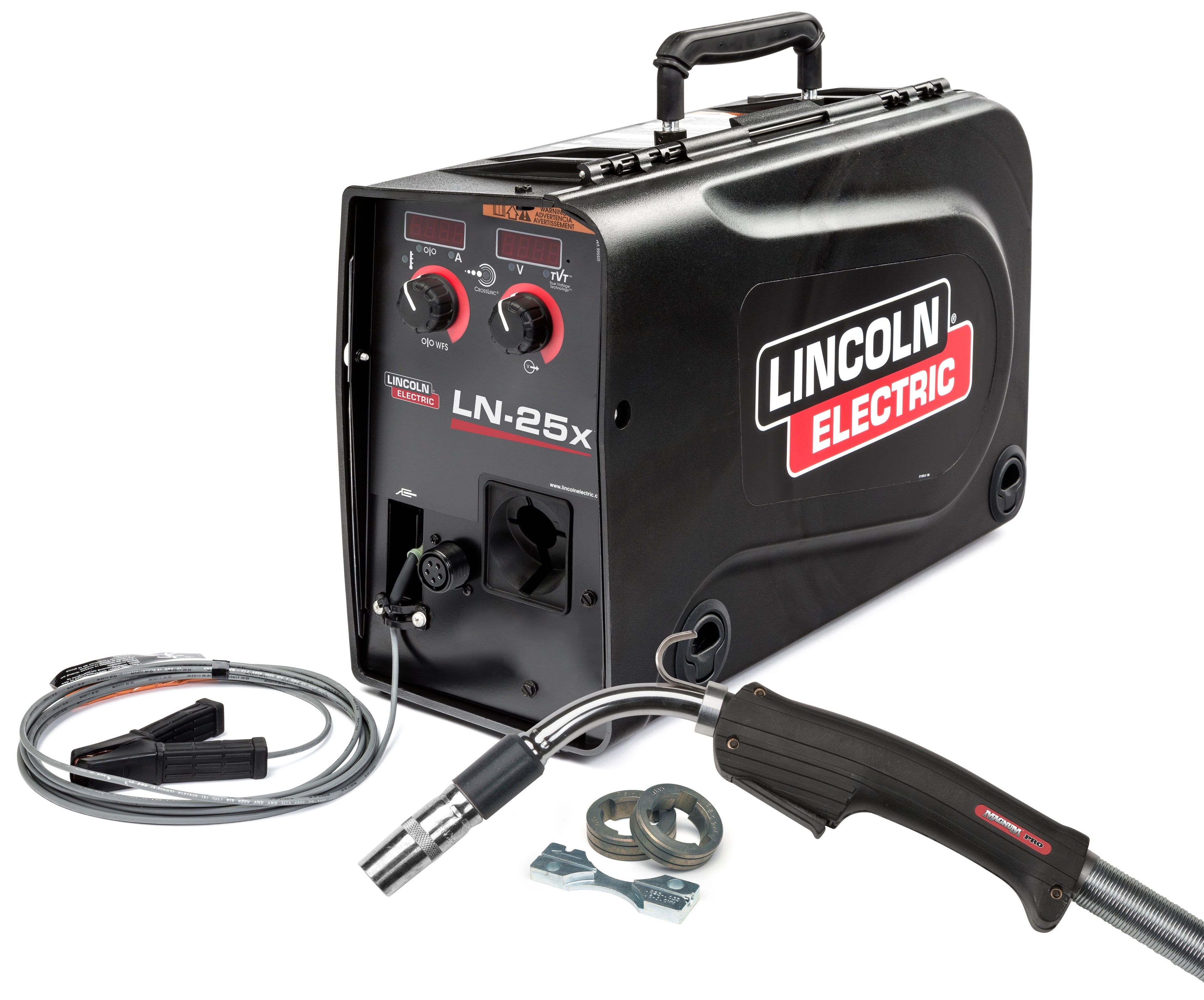

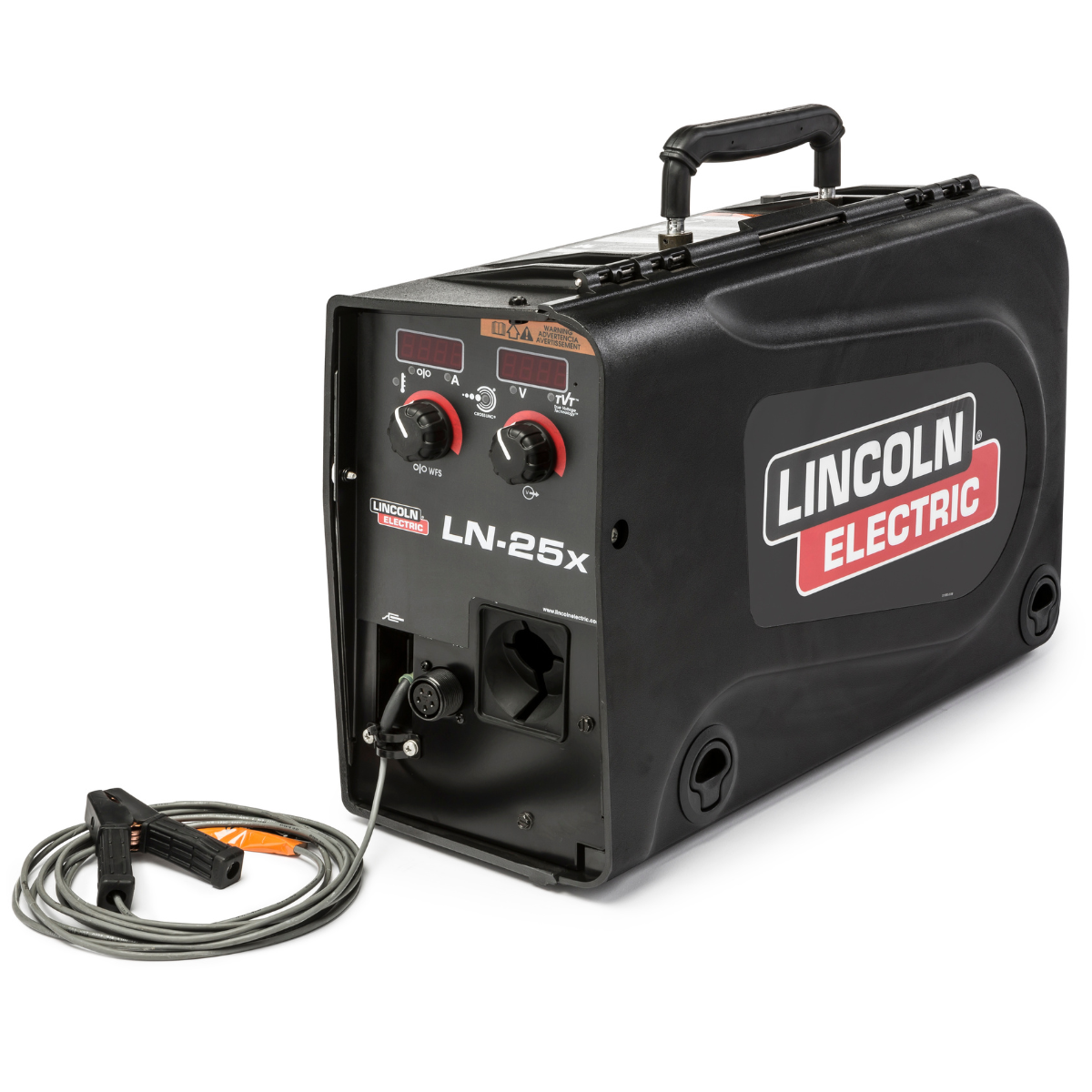

Lincoln Electric LN-25X Pro w/ TVT 045 One-Pak - K4266-1
Sale price
$1,765.40
Regular price $5,044.00
Skip to product information
Description
The Lincoln LN25X Wire Feeder with CrossLinc is a voltage sensing feeder that has full remote voltage and amperage control without the need of remote control cables.
Safety
Reduces job site clutter by removing the need for cables. Eliminates unnecessary movement of personnel and cables across the job site.
Quality
Full control at the feeder results in the correct settings for every weld. Accurately compensates for voltage drop across long cable runs and saves unintentional machine adjustments.
Productivity
Faster set up with fewer cable connections. Eliminates trips to the power source for adjustments and less rework with adjustments at the users fingertips.
CrossLinc Technology
Exclusive Lincoln technology that allows the operator to adjust voltage at the point of use. Greatly reducing the complexity to the environment and time to set up. Basically fewer cables and greater control!
Features
•
Maxtrac Wire Drive System – Heavy-duty cast aluminum wire drive system provides reliable feeding and durability
•
CrossLinc Technology – Control output at a distance with no additional cables
•
True Voltage Technology (TVT) – Voltage drop compensation. Get what you set
•
Tachometer feedback ensures accurate wire feed speed
•
Trigger Interlock Switch – Provides operator comfort for long welds
•
Replaceable and Flame Resistant Case – Protects internal components, easy to replace
•
Potted PC Boards – For moisture and corrosion protection
•
Split Wire Guide — Reduces birdnesting and allows for easy cleaning no-fuss wire guide alignment
•
Bright digital meters for easy viewing even in bright sunlight
•
Included Tweco style male connector on input power cable. (Twistmate/Dinse connector on CE model)
•
Optional Flowmeter – for easy gas flow adjustment at the feeder
•
Weld Timers – Pre-Flow, Post-Flow, and Burn Back
•
Adjustable Wire Run-In Speed – for softer starting
Included With Product
•
K4267-2: LN-25X w/CrossLinc&TVT No Flowmeter wire feed
•
K2951-2-10-45: Magnum PRO Curve 300A MIG Gun
•
KP1697-045C Drive Roll Kit
Specifications
Click to view full spec sheet
