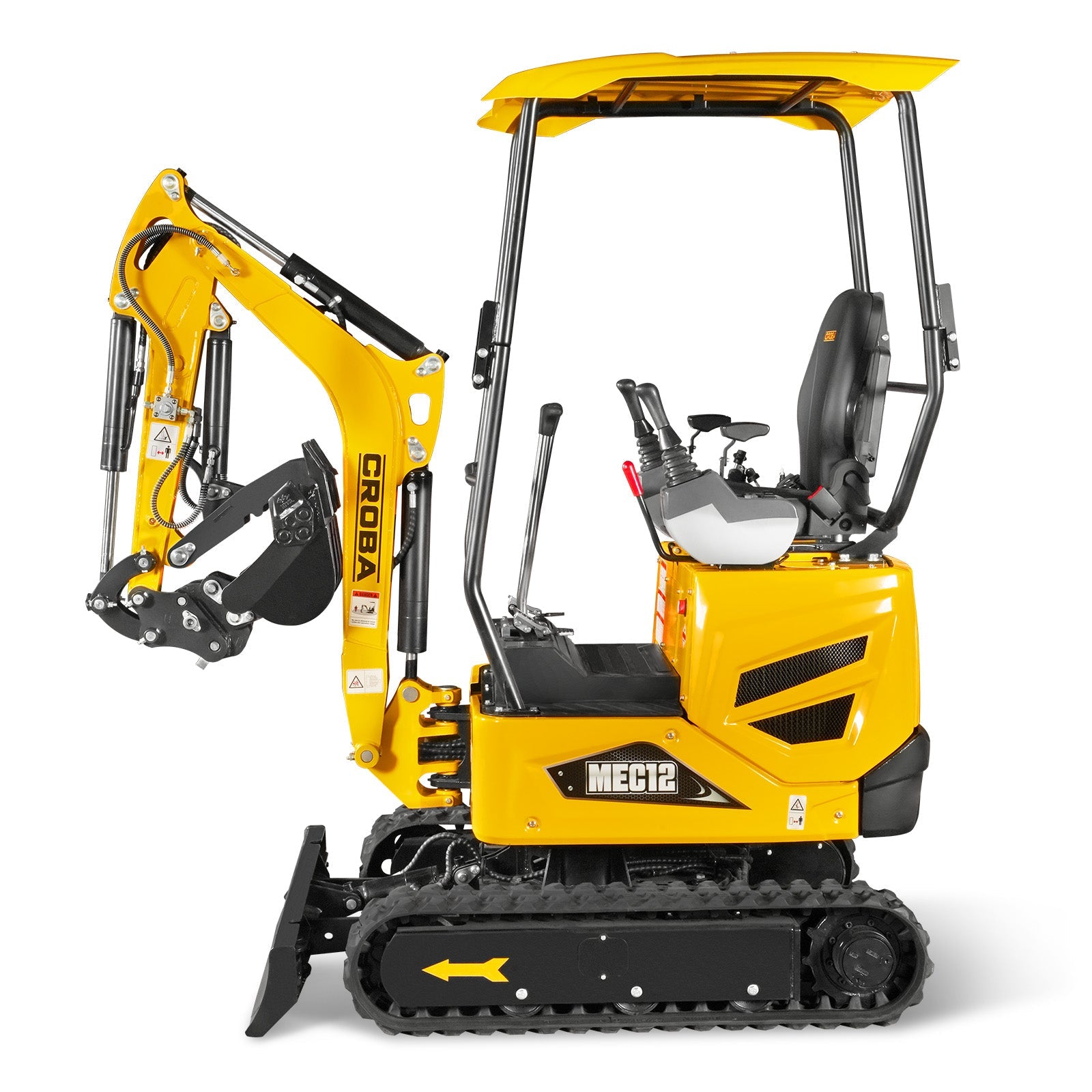

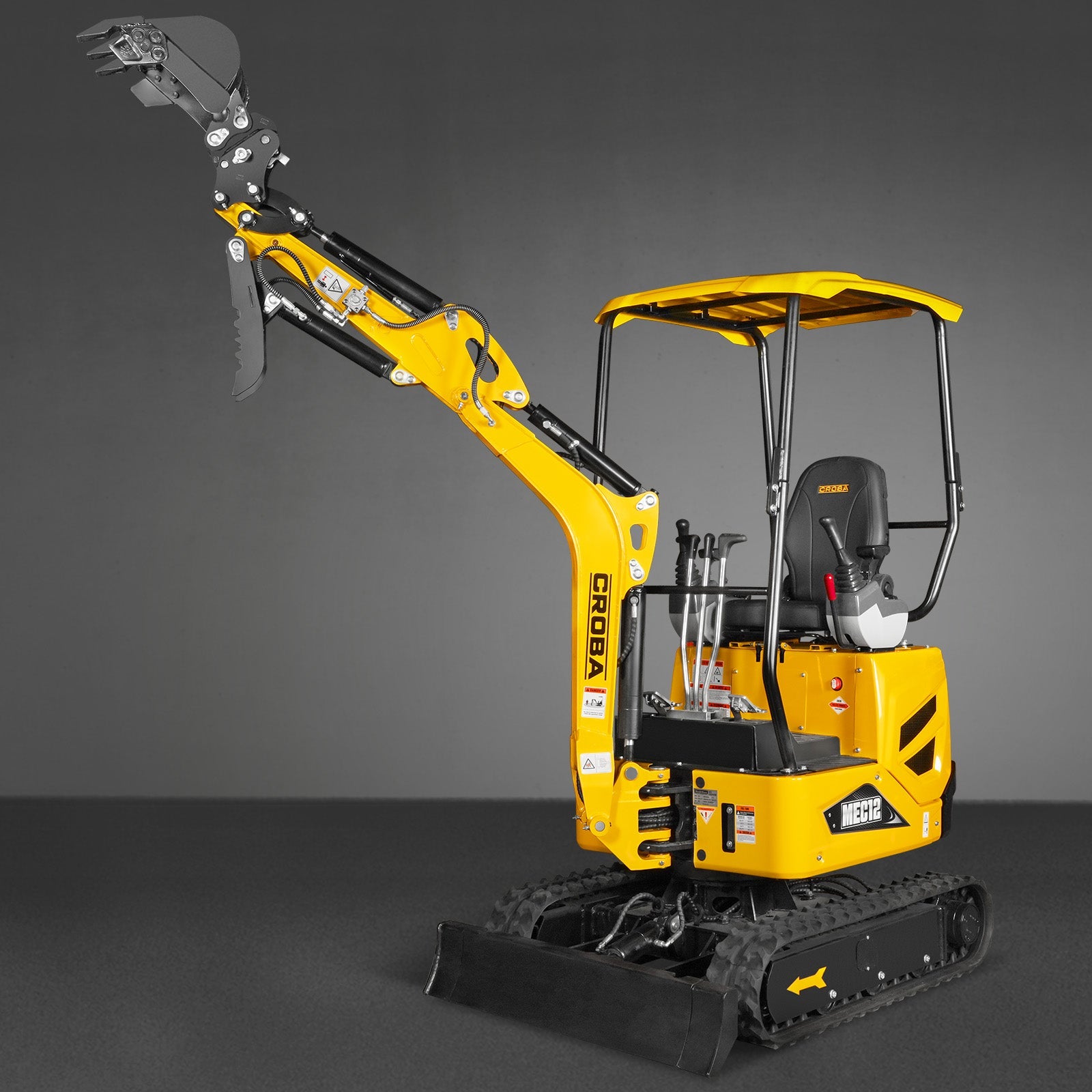

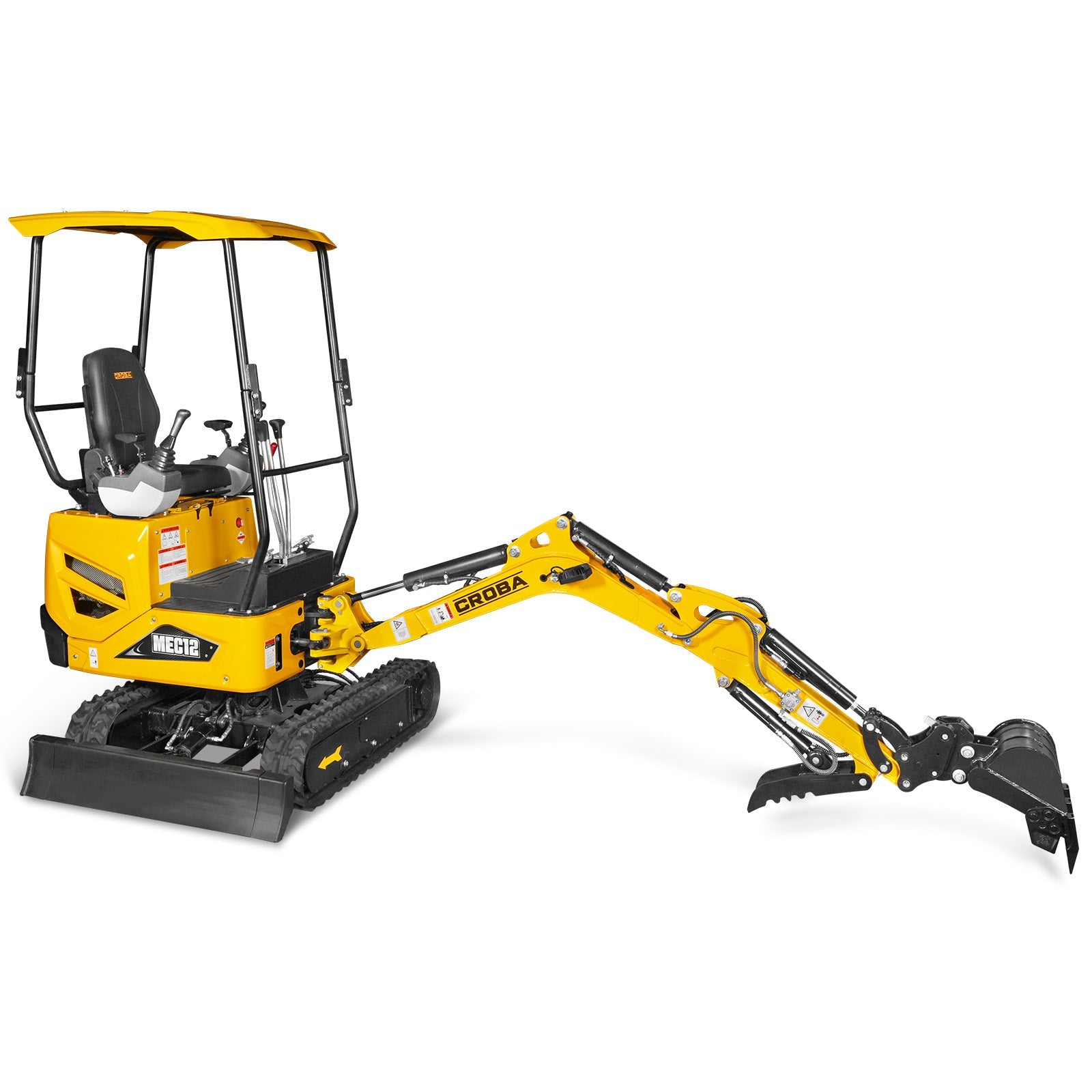

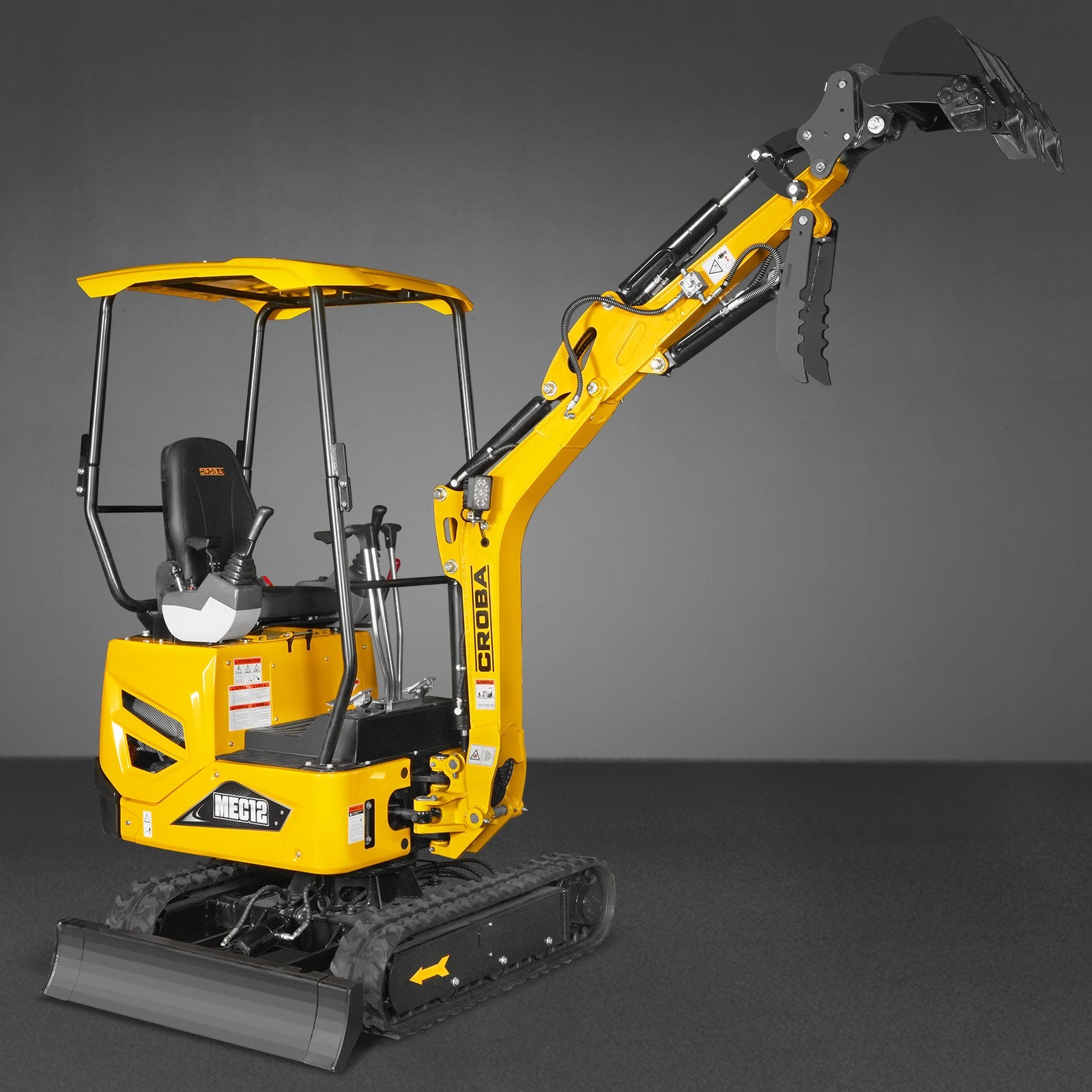

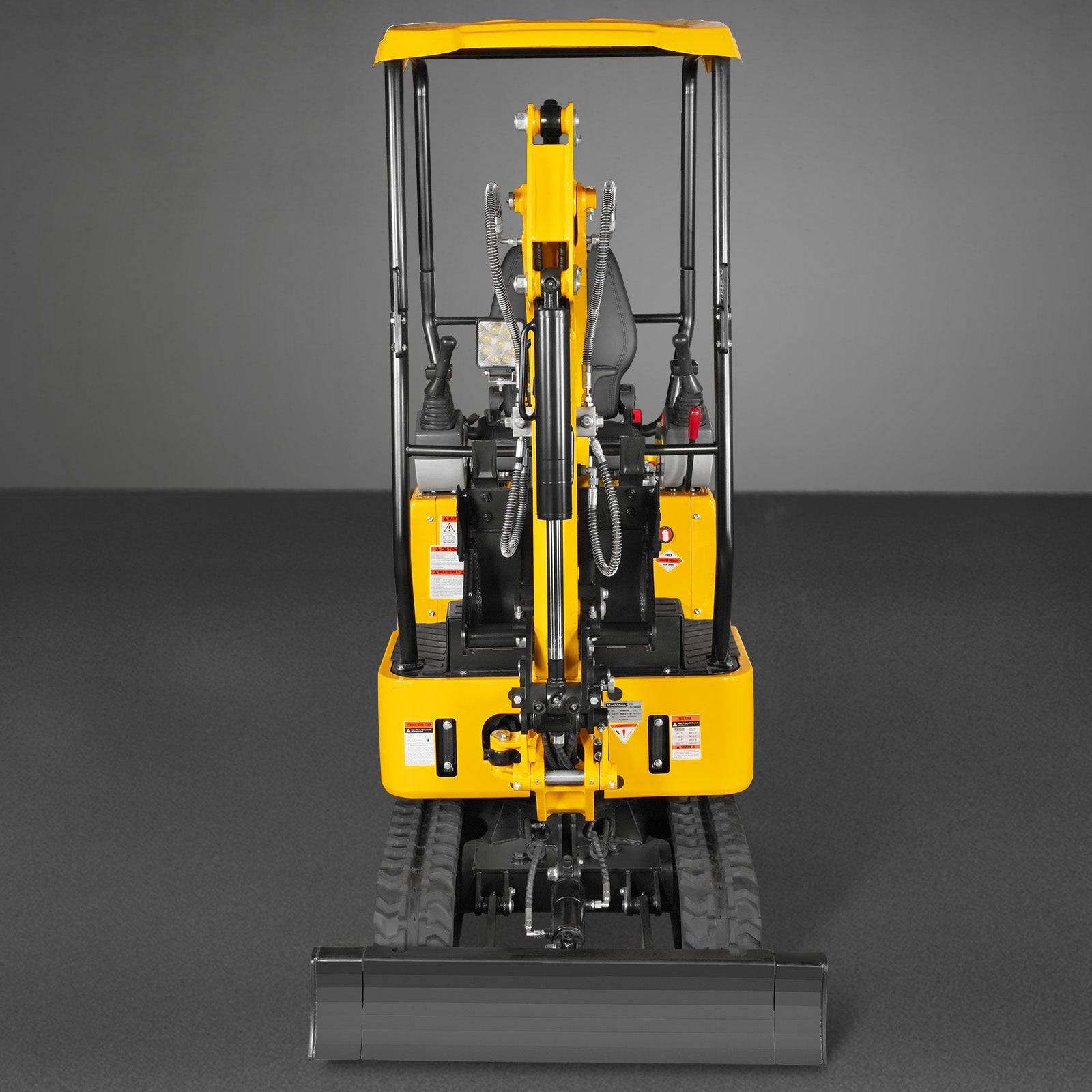

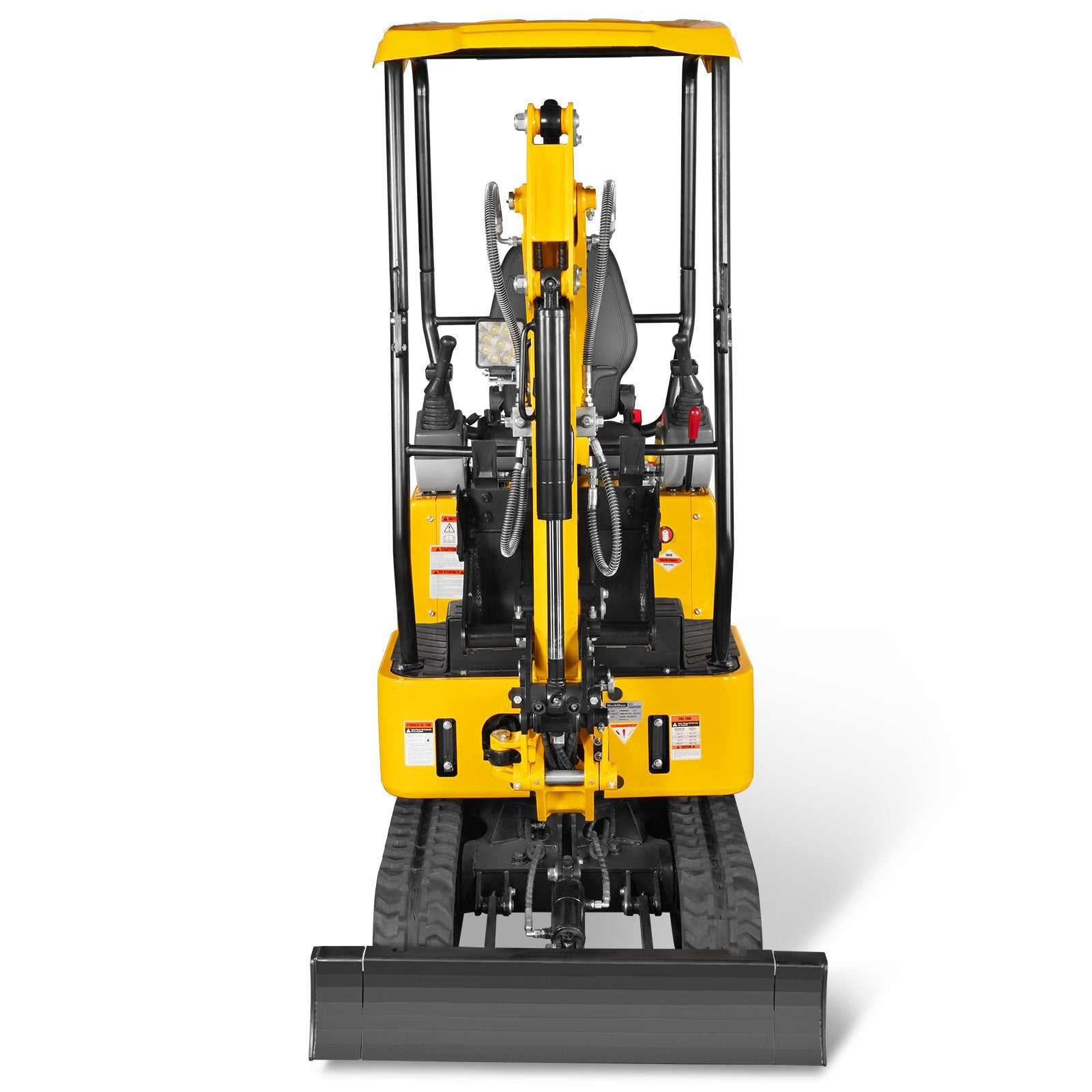

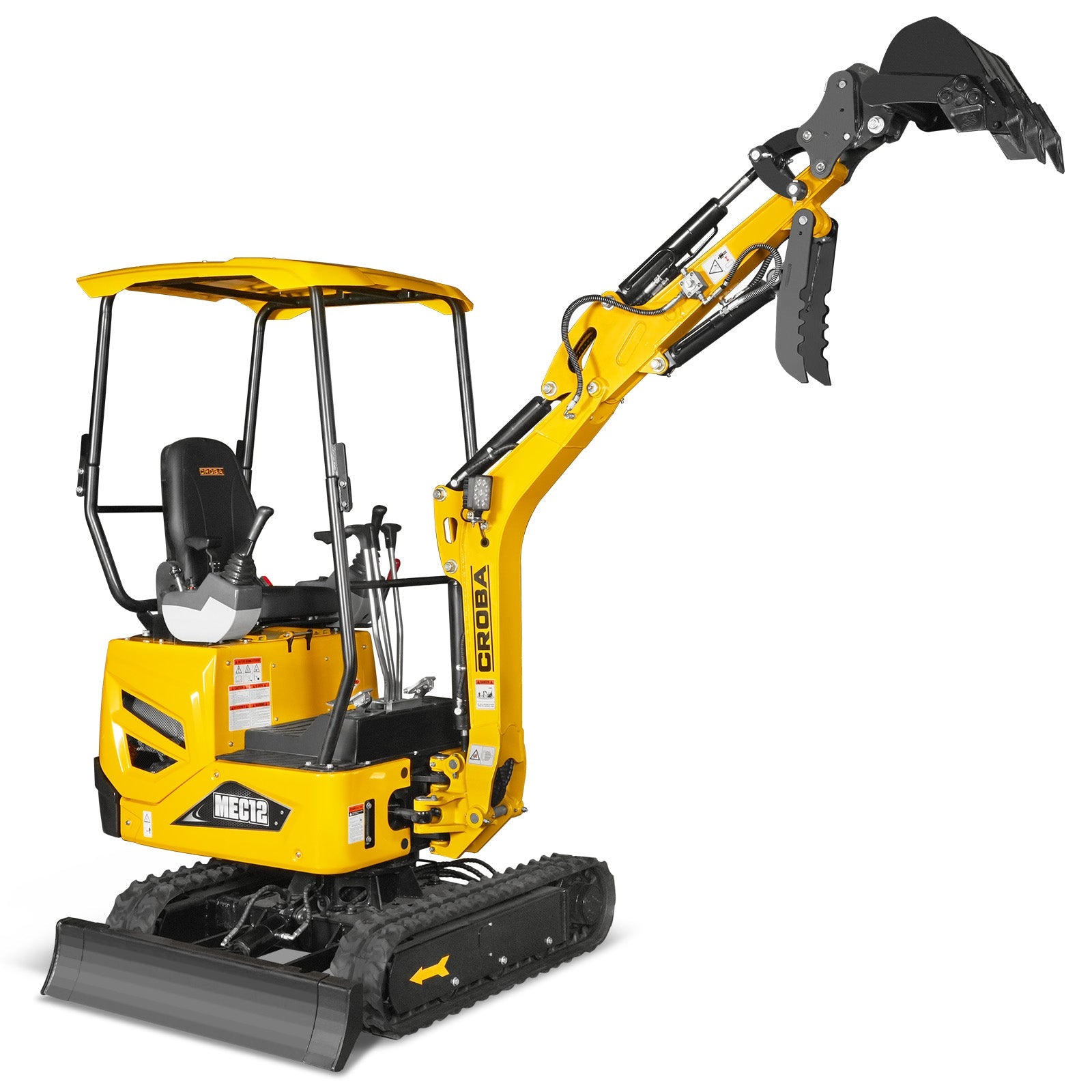

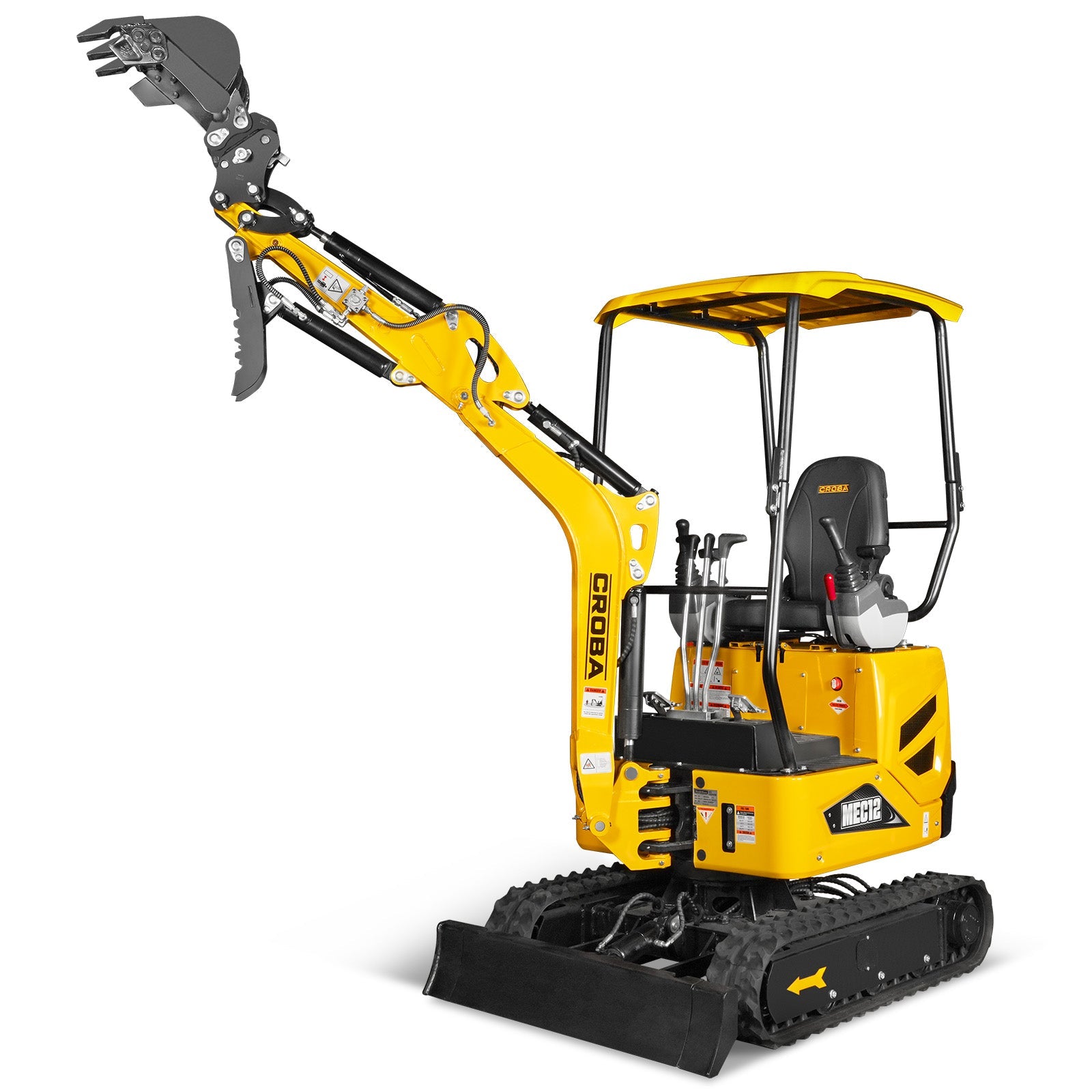

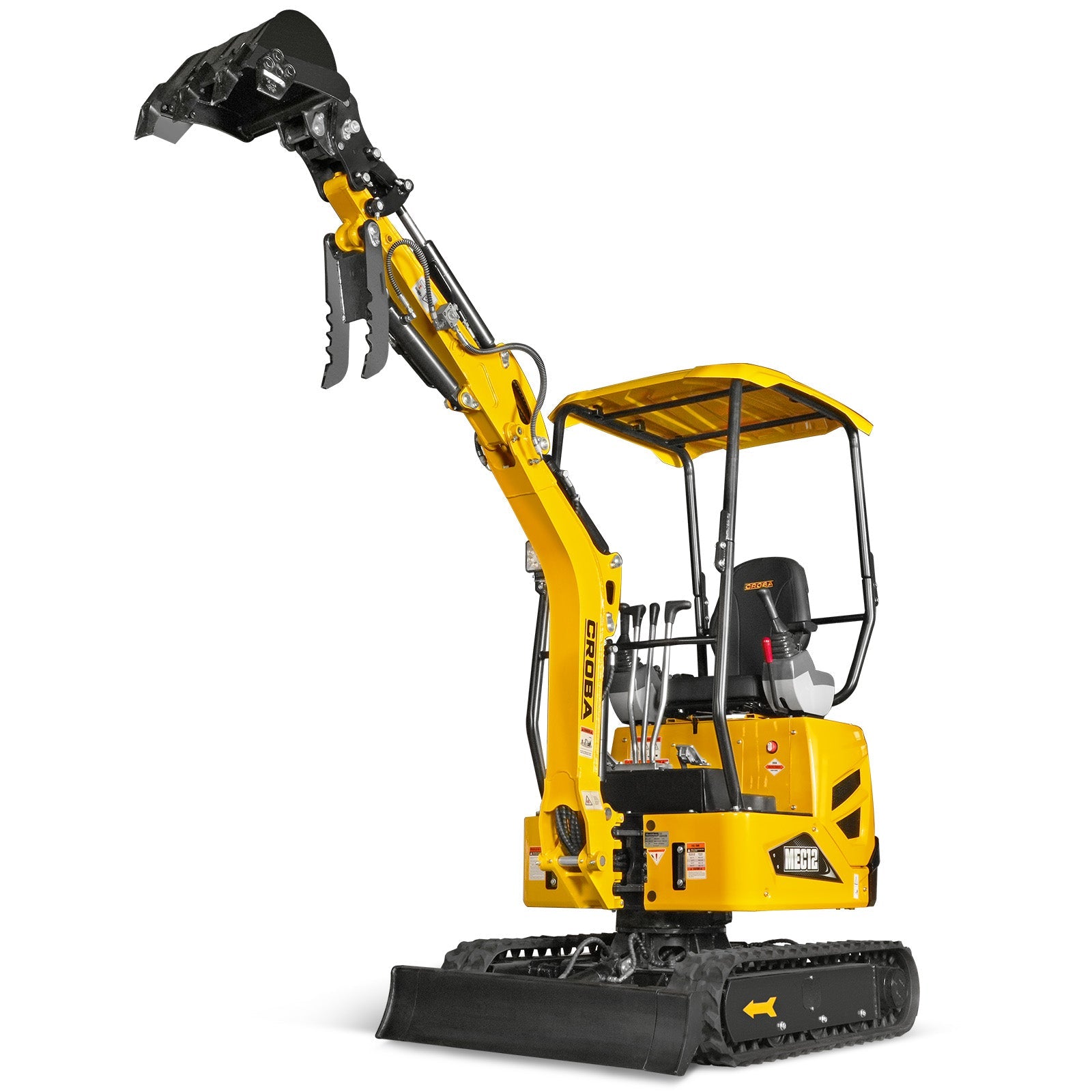

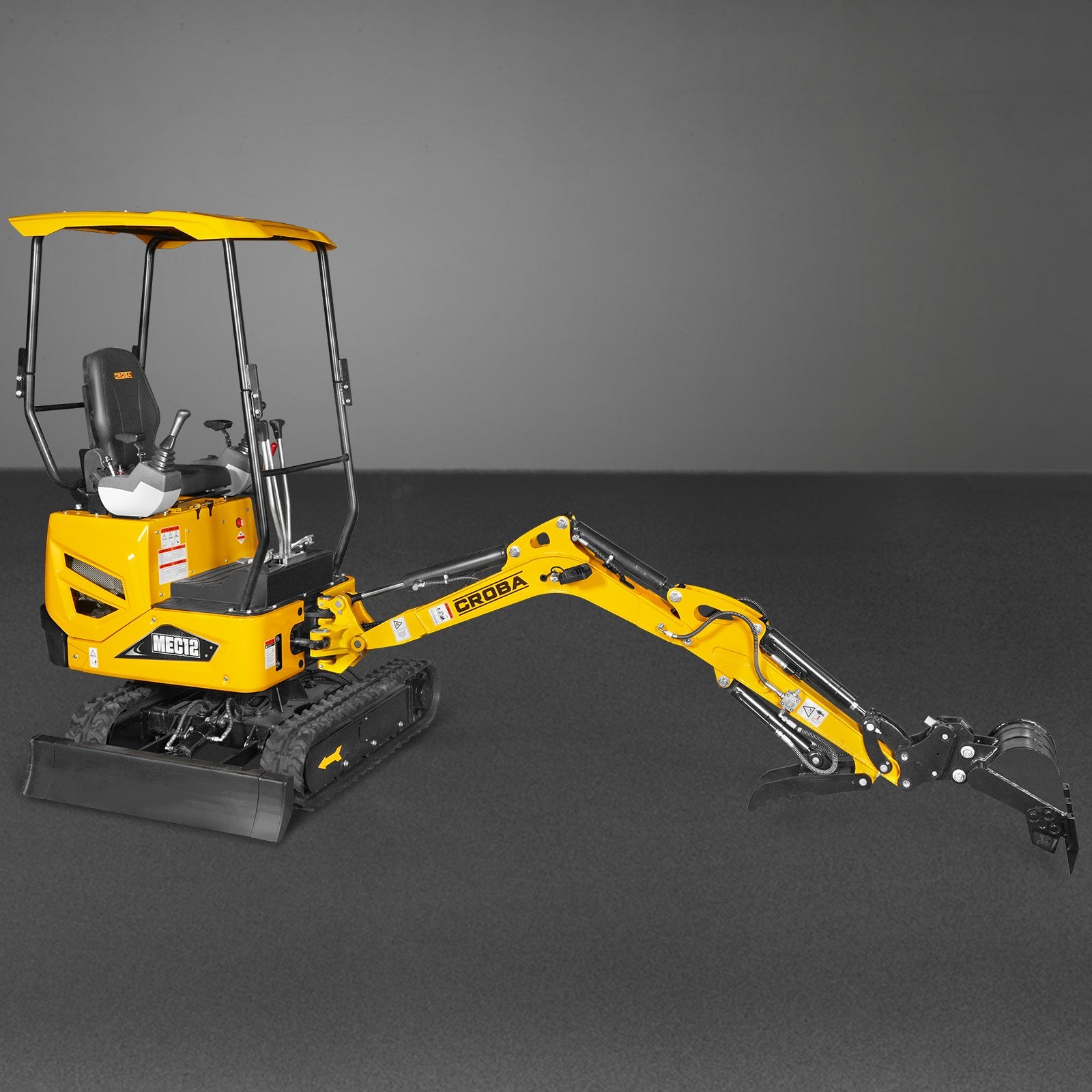

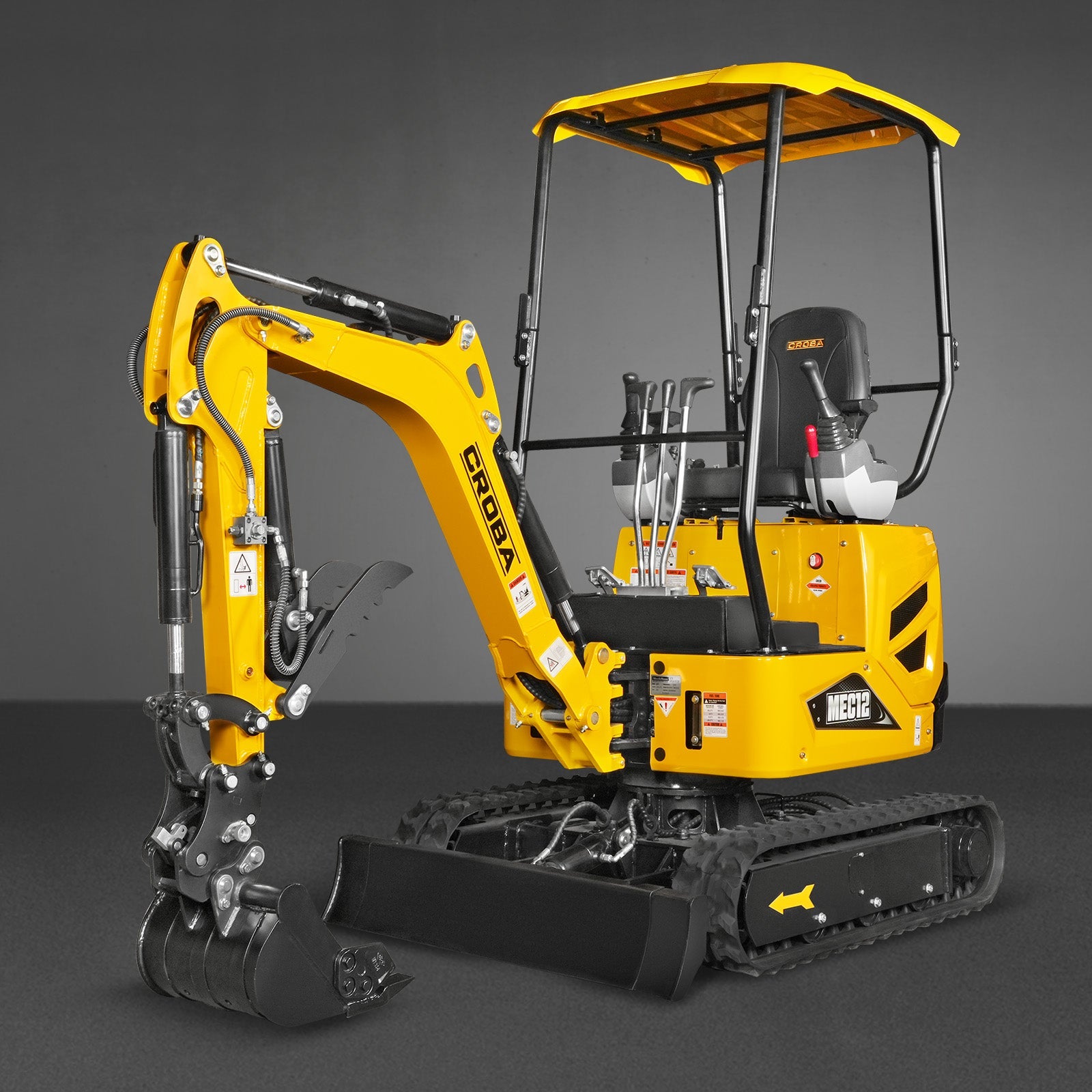

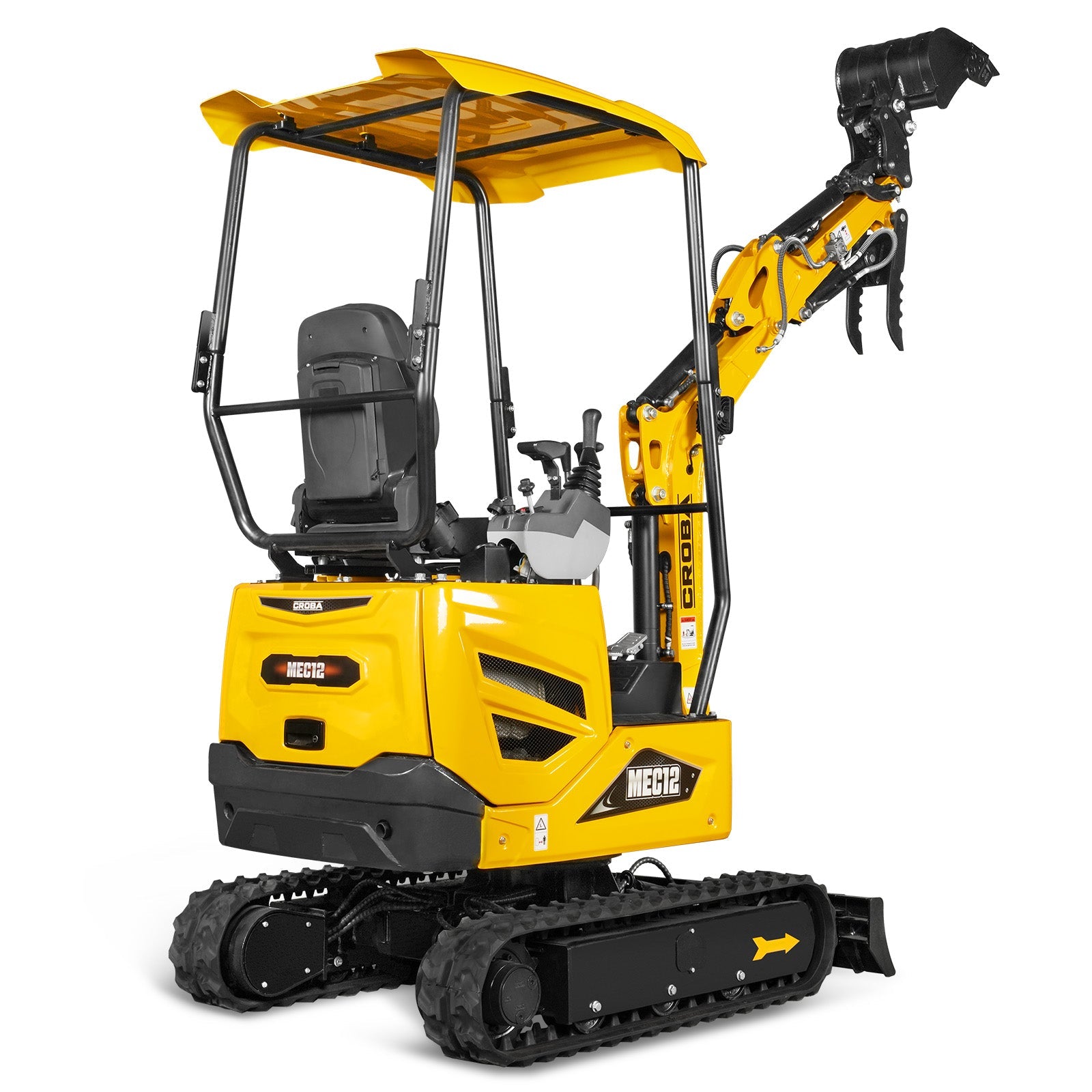

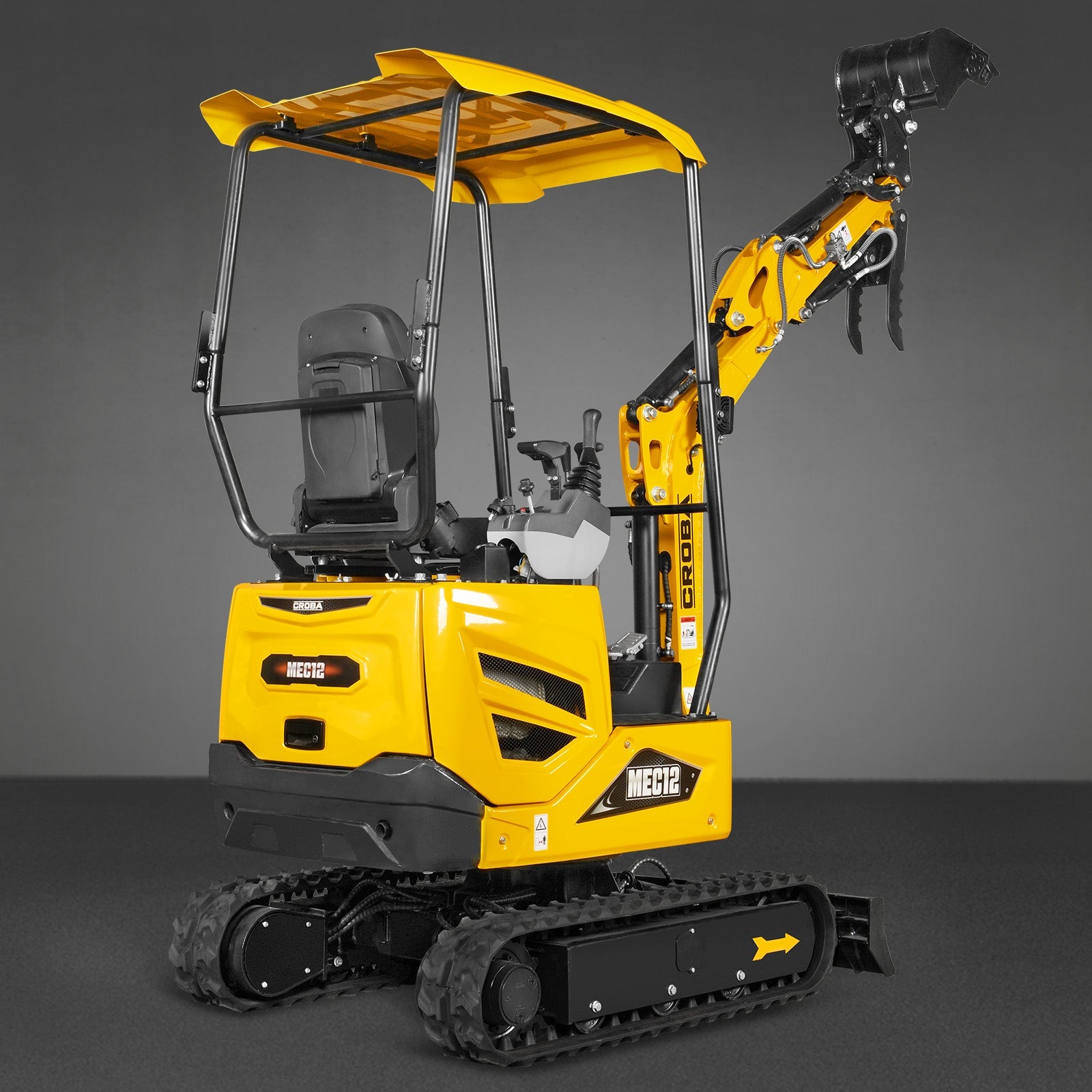

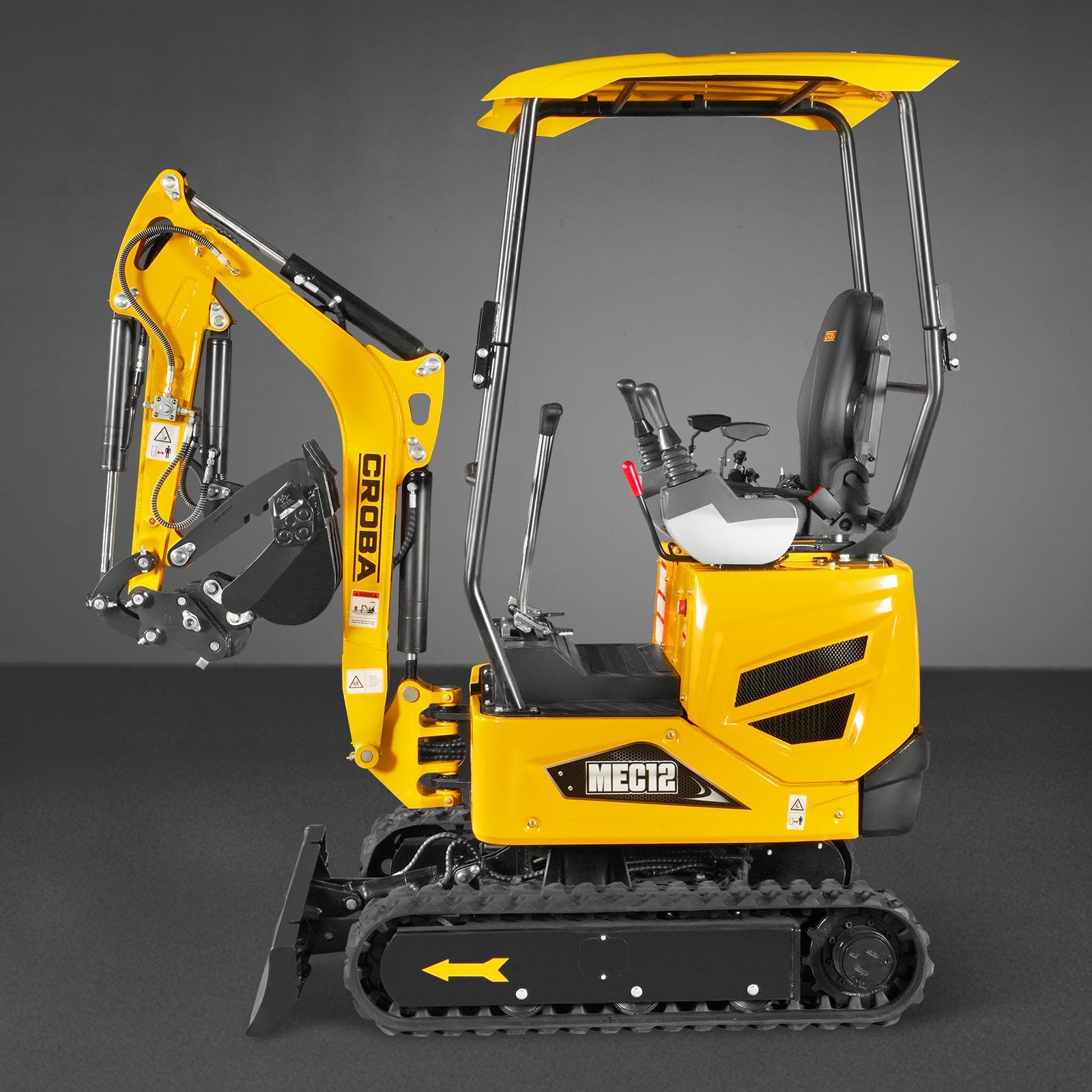

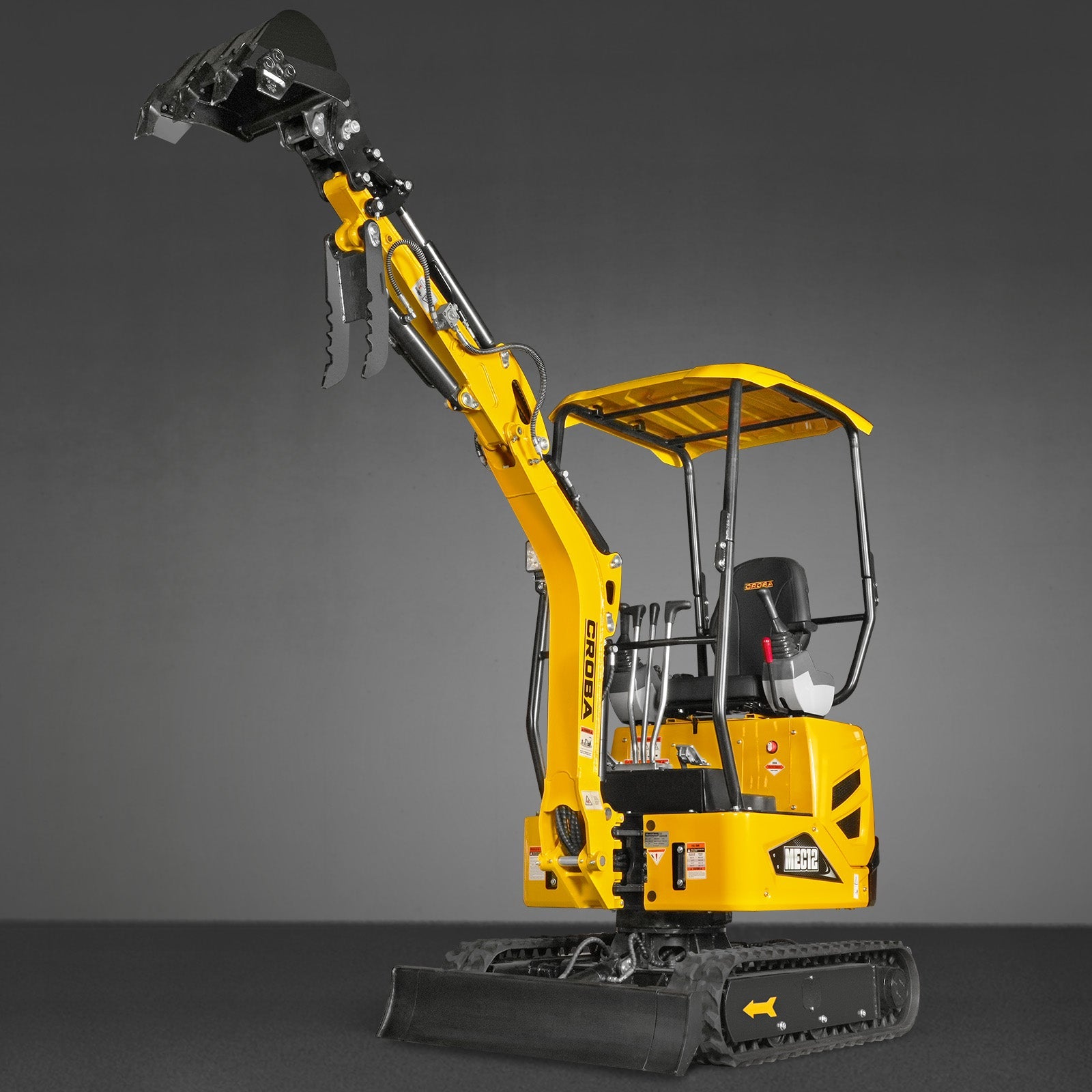

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12
Sale price
$7,559.55
Regular price $16,799.00
Skip to product information
ENGINE
Model
Kubota D722
Rated speed
2500rpm
No.Of Cylinders
3
Displacement
43.88in³
Stroke
2.68in
Engine Output
13.7hp
Bore
2.64in
Warranty for Engine
2-Year
TRAVEL SYSTEM
Travel Speed - High
2.24 mile/h
Ground Clearance
15.9in
Travel Speed - Low
1.12 mile/h
Ground Pressure
5.1psi
Maximum Traction Force - Low Speed
2923lbf
Gradeability - Maximum
Maximum 30 degrees
WEIGHT
Operating Weight
2700lb
HYDRAULIC SYSTEM
Type
Load Sensing Hydraulics with Variable Displacement Piston Pump
Max.Discharge Flow
4.65 gpm
SWING SYSTEM
Swing Speed
8rpm
Tail Swing Radius
48.1in
DIGGING FORCE（ISO6015)
Boom Length
52in
Bucket Digging Force
1960lbf
Arm length
35in
Arm Digging Force
875lbf
REFILING CAPACITIES & LUBRICATIONS
Fuel Tank
2.4gal
Hydraulic Oil Tank
3.2gal
Cooling System
1.1gal
System Capacity
4.8gal
Engine Oil
0.7gal
BUCKET
Bucket Capacity
0.7 ft³
Bucket Width
15 in
SCOPE OF WORK
Max.Digging Height
111.2in
Min Turning Radius Of Working Device
48.1in
Max.Dumping Height
81.1in
Max. Lift Above Ground
5.5in
Max.Digging Depth
65.7in
Max. Drop Below Ground
8.9in
Max.Vertical Digging Depth
62.6in
Boom Swing - Left
53°
Max Digging Radius
119in
Boom Swing - Right
40°
Max.digging Radius At Ground Level
118.7in
DIMENSIONS
Transportation Length
92.4in/114.8in
Crawler Wheel Base
42.5in
Overall Width （Retracted/Expanded)
42.7 in
Track Belt/Shoe Width
7in
Overall Height（To Top Of Cab）
89.5in
Track Length
55.5in
Counter Weight Ground Clearance
16.7in
Track Width（Retracted/Expanded)
34.6 in/42.7 in
Ground Clearance
15.9in
SERVICE
Package Method
Wood Case
Warranty for Machine
1 Year
Packing Size
91x40x98 in
Weight (N.W./G.W.)
2700/2978 lb
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
