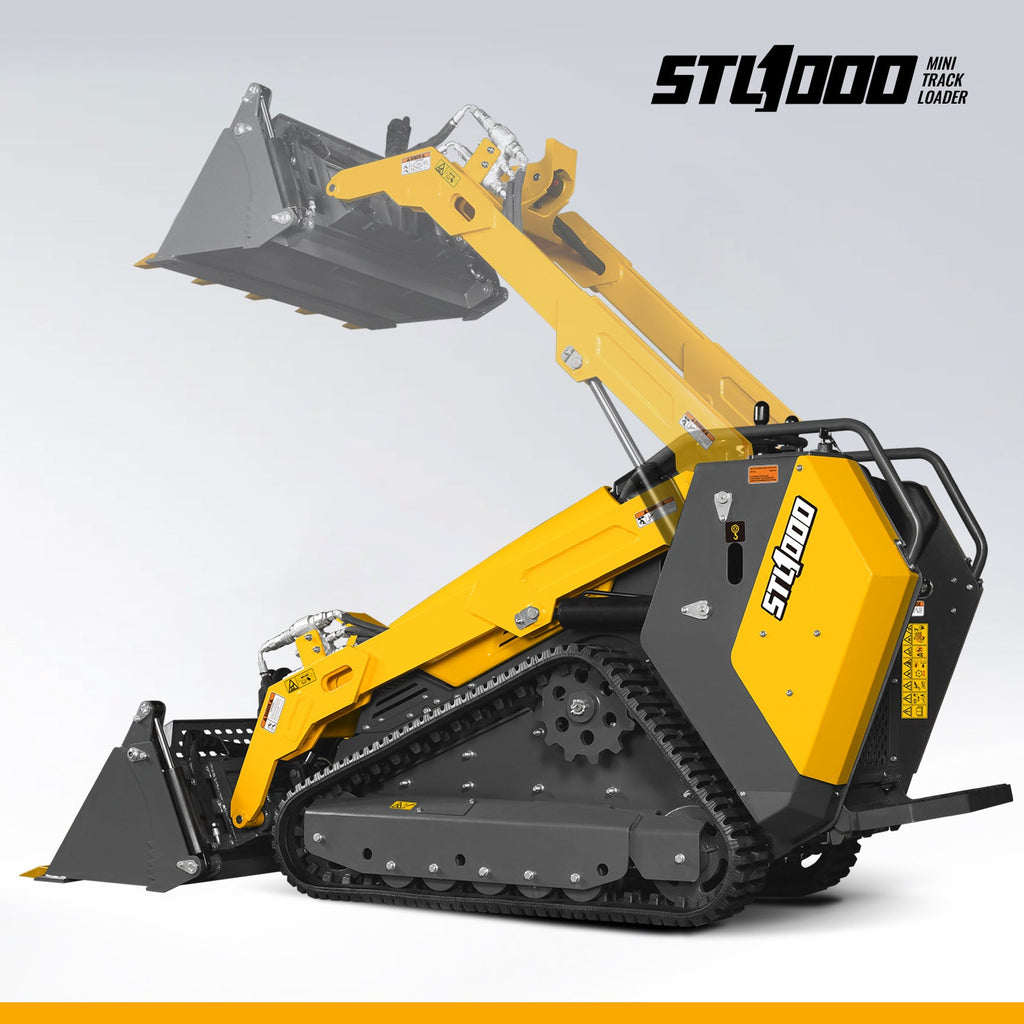

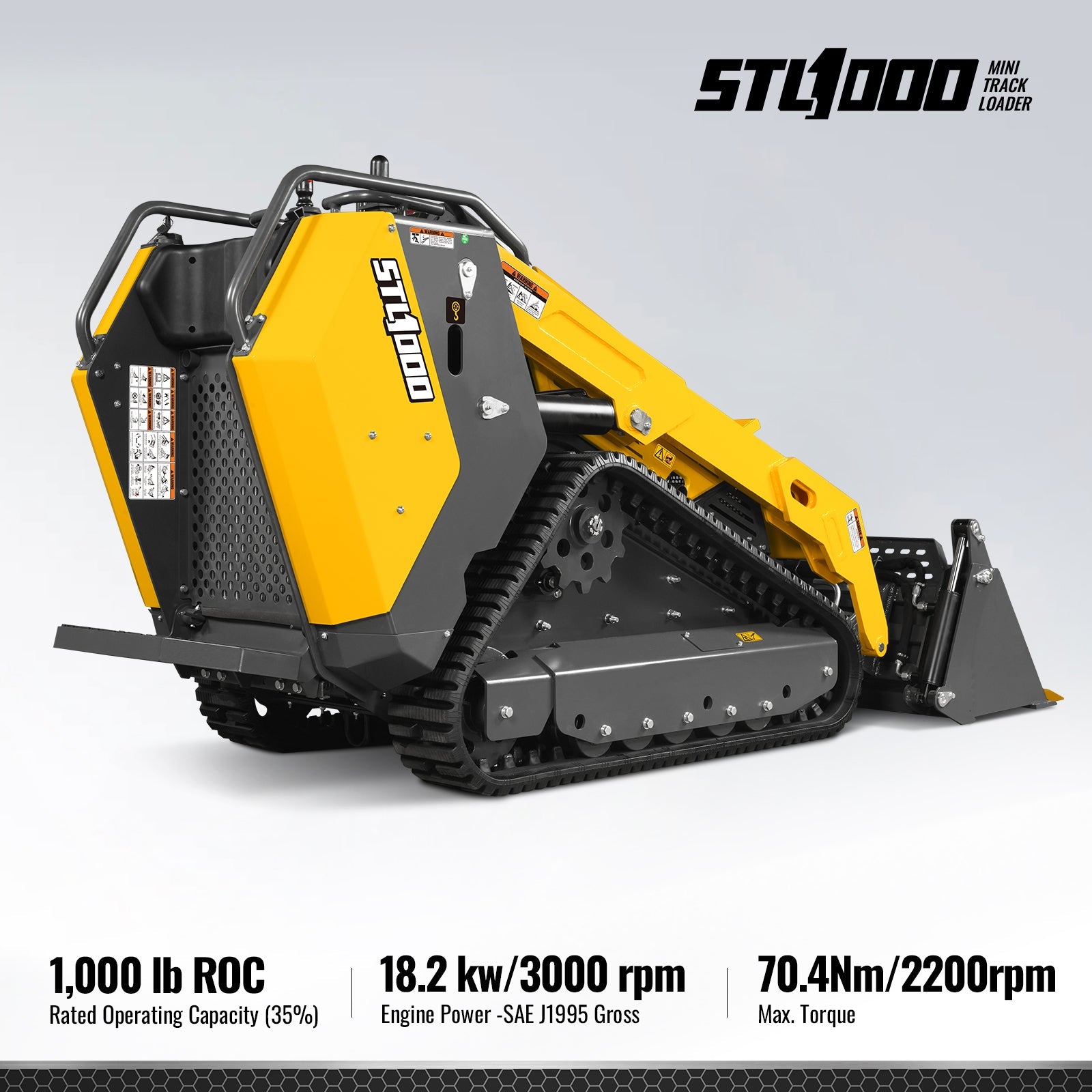

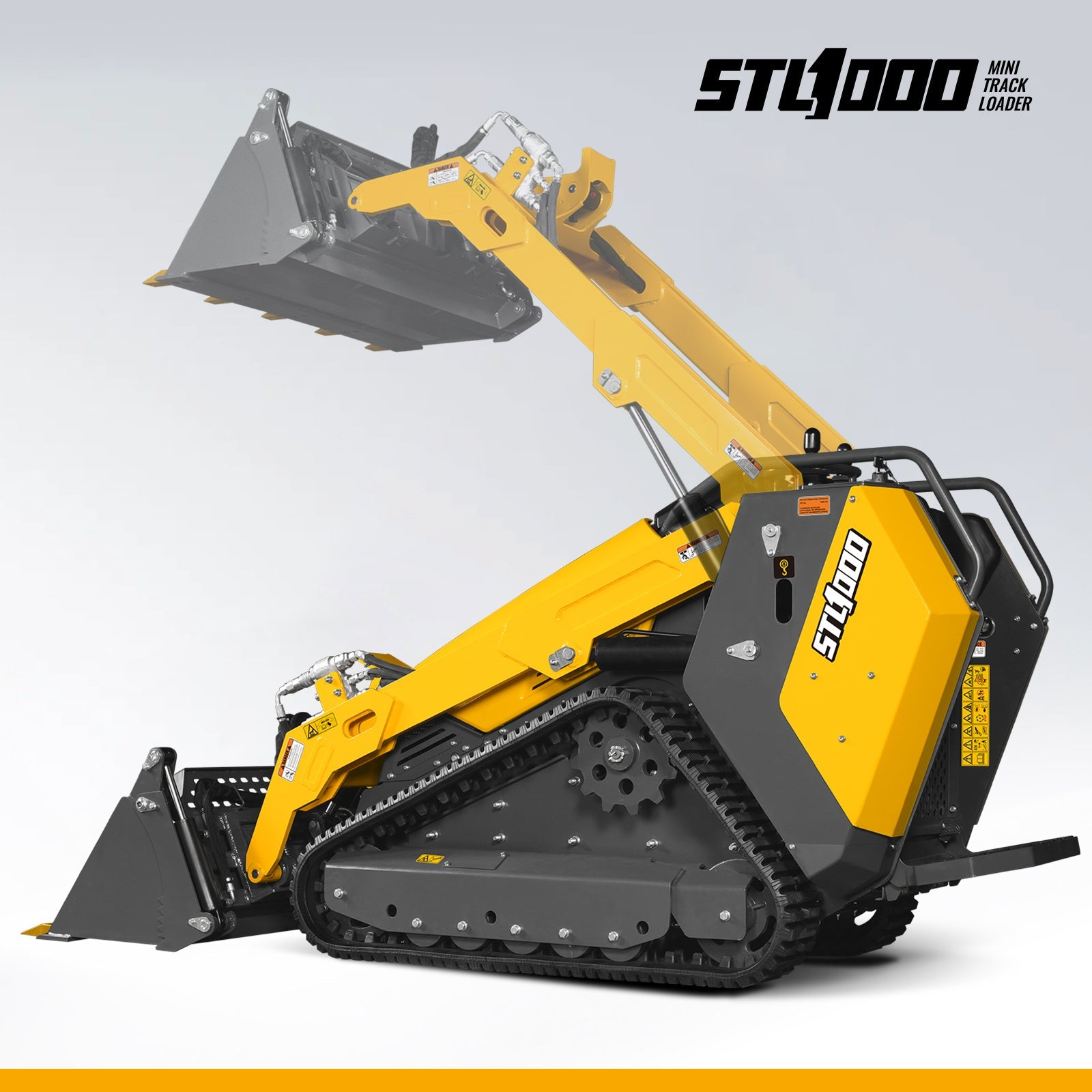

Mini Skid Steer Stand On Compact Track Loader ( 4 in 1 bucket included ) with 25HP KUBOTA D1105 Diesel Engine, Common Industry Interface (CII), CROBA STL1000
Sale price
$9,899.55
Regular price $21,999.00
Skip to product information

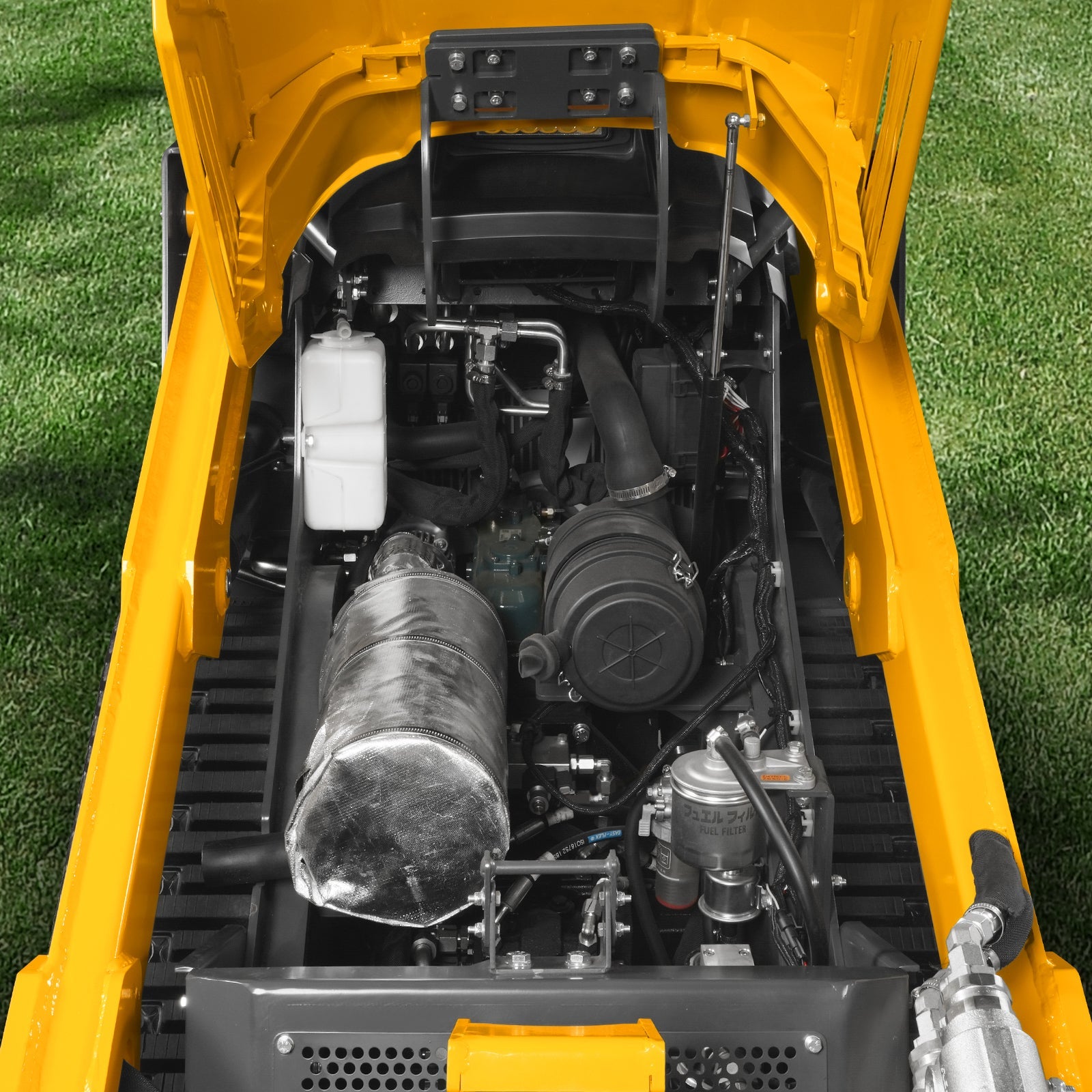

ENGINE
Engine Model

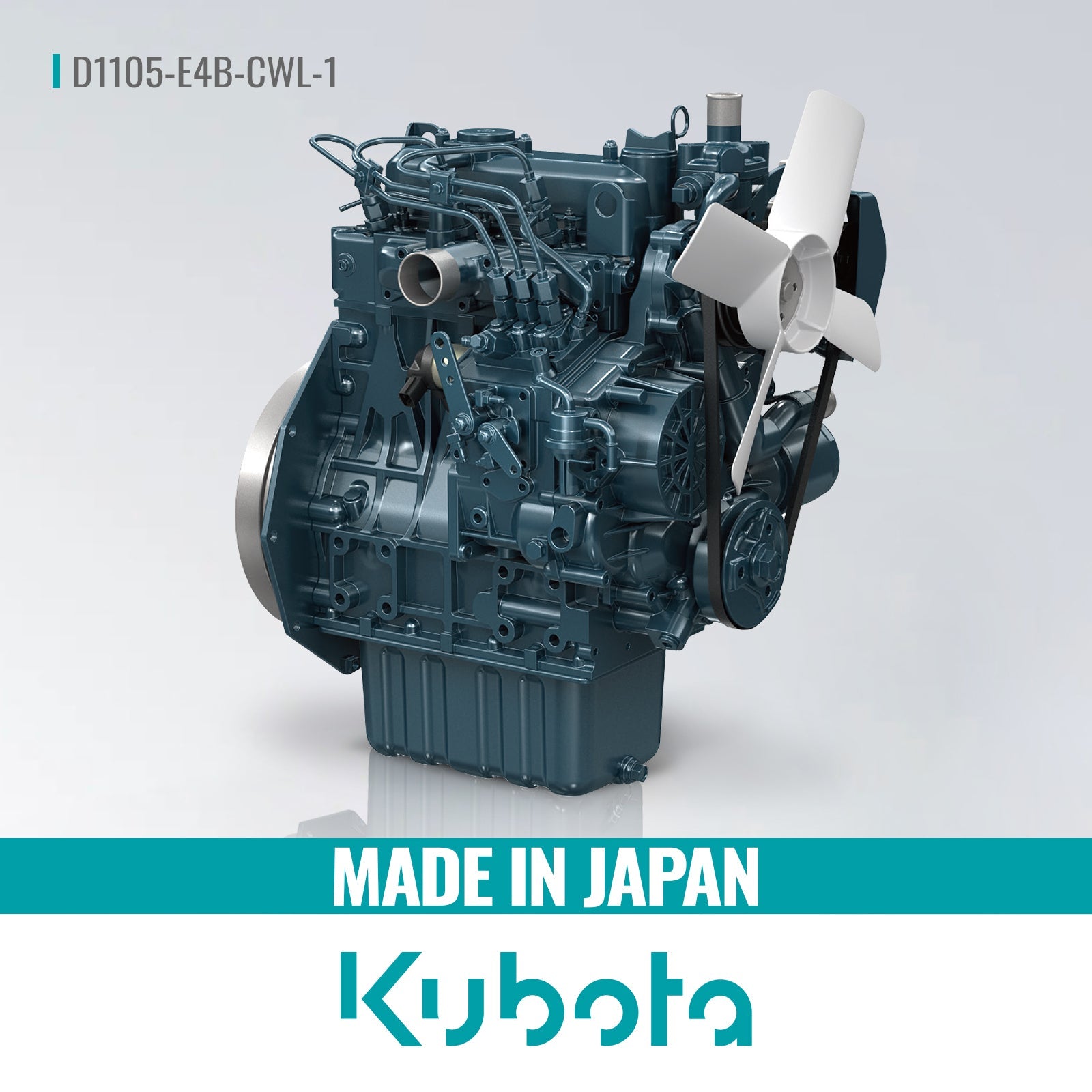

KUBOTA D1105-E4B-CWL-1
Type
Vertical, water-cooled, 4-cycle diesel
Total Displacement
68 cu.in.
Number of cylinder
3
Brake Horse Power -Net intermittent without fan ISO 14396
18.2 kw/3000 rpm
Rated Speed
3000 rpm
Max. Torque
70.4Nm/2200 rpm
Low Idling Speed
850-950 rpm

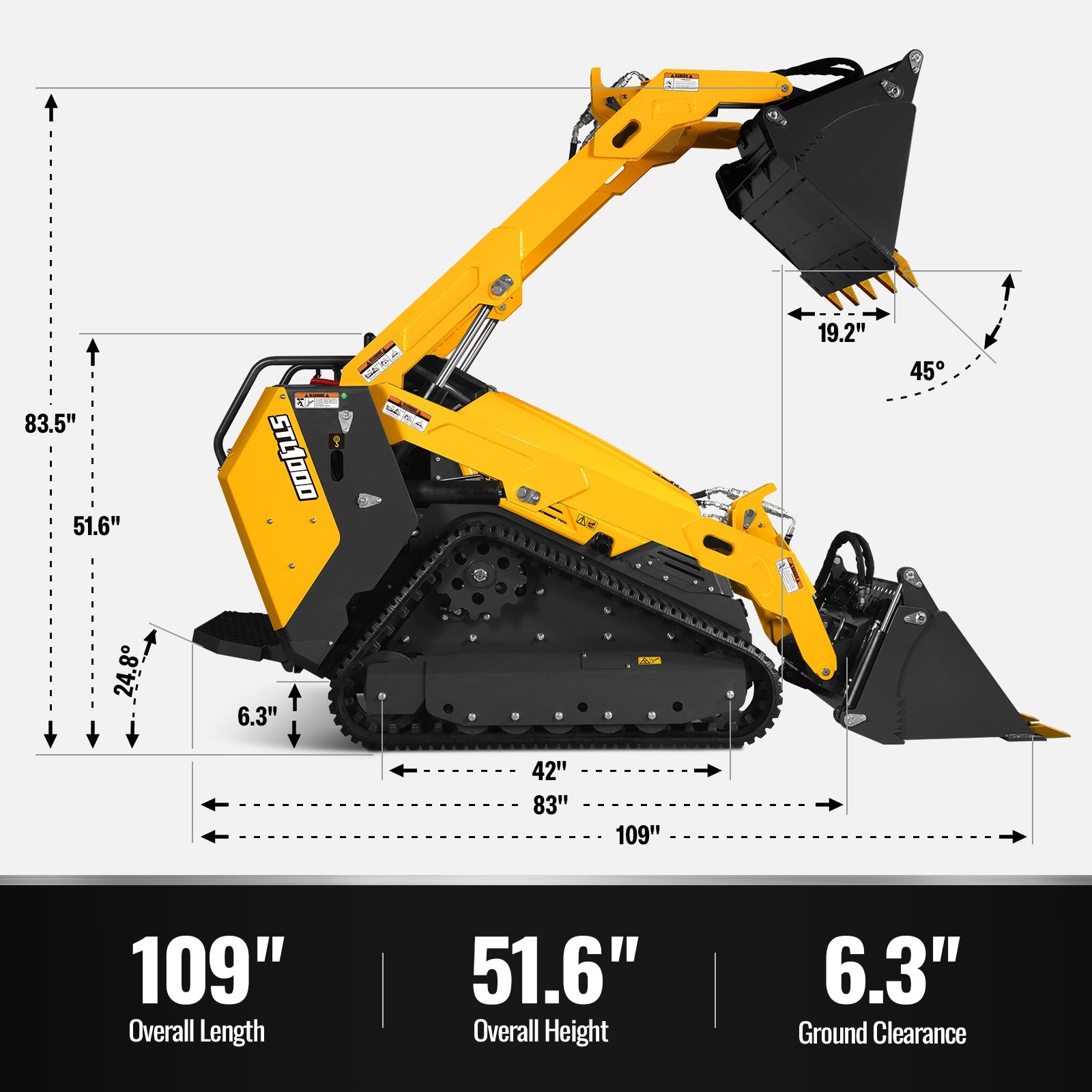

DIMENSIONS

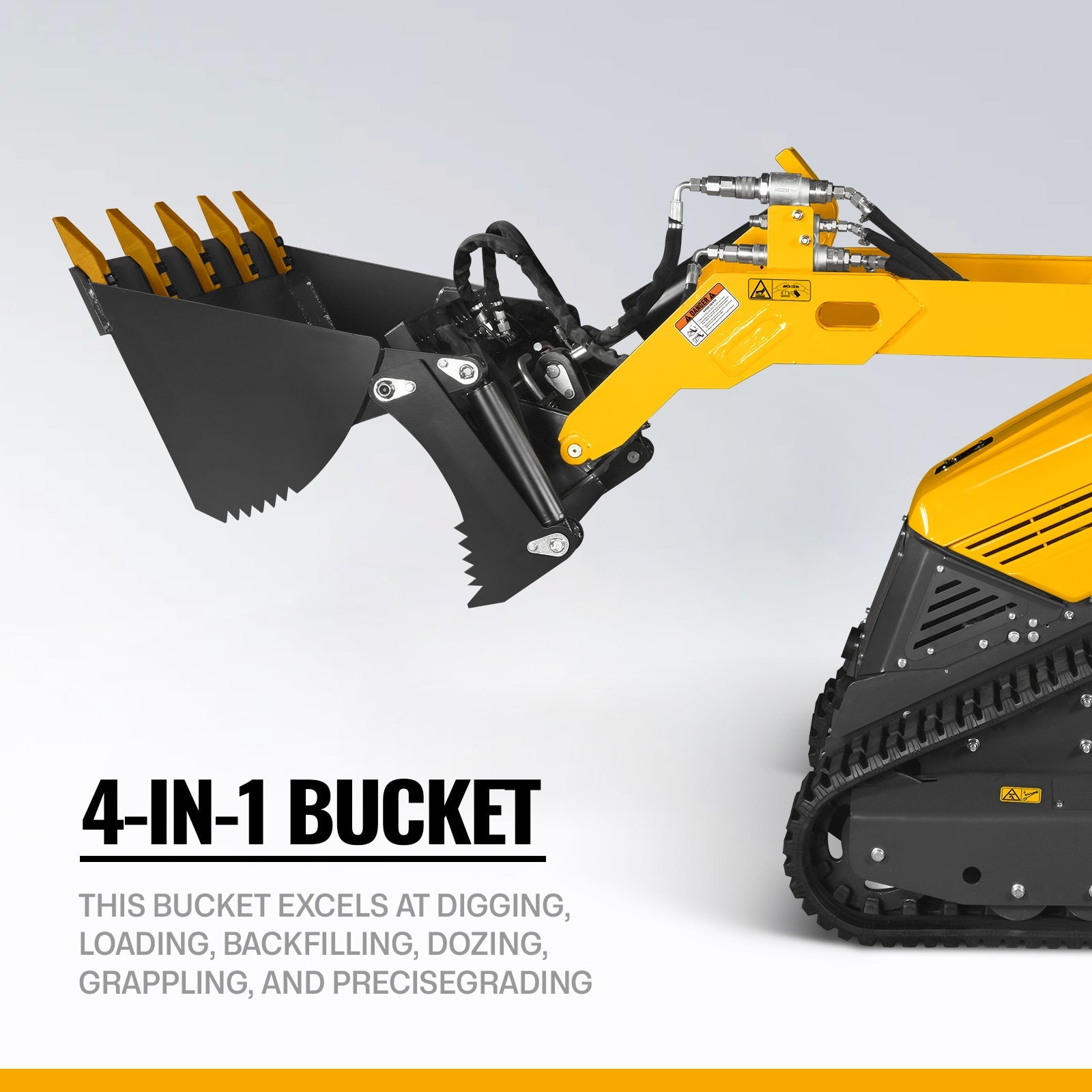

Overall Length (With 4-In-1 Bucket Parallel To Ground)
109 in
Overall Length (w/o 4-In-1 Bucket)
83 in
Overall Height
51.6 in

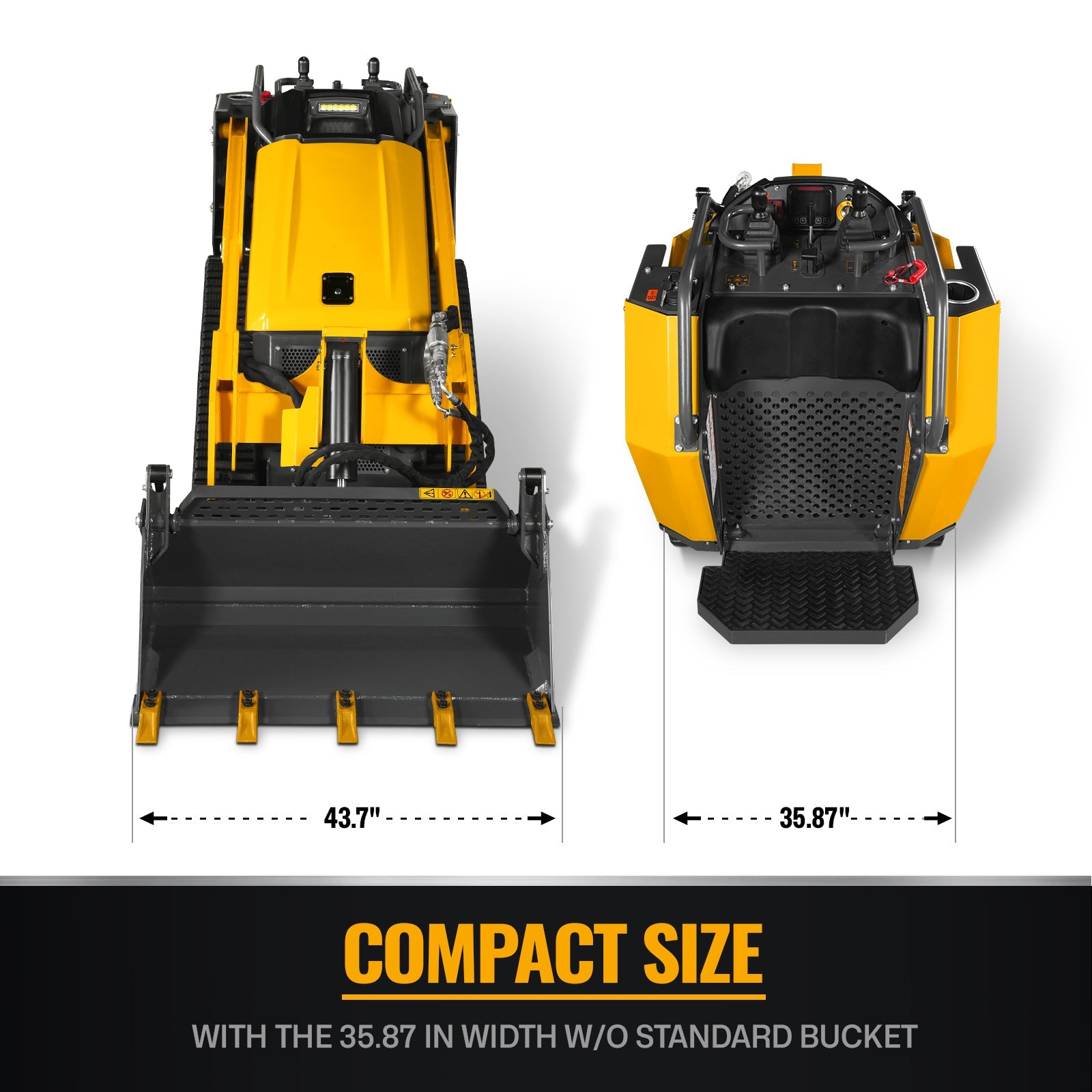

Overall Width With 4-In-1 Bucket
43.7 in
Overall Width w/o 4-In-1 Bucket Bucket
35.87 in
Weight With 4-In-1 Bucket (w/o Operator) lbs
3206 lbs
Weight w/o 4-In-1 Bucket
2895 lbs
Rated Operating Capacity (35%)
1,000 lbs ROC
Tipping Load
2,857 lbs
Wheelbase
42 in

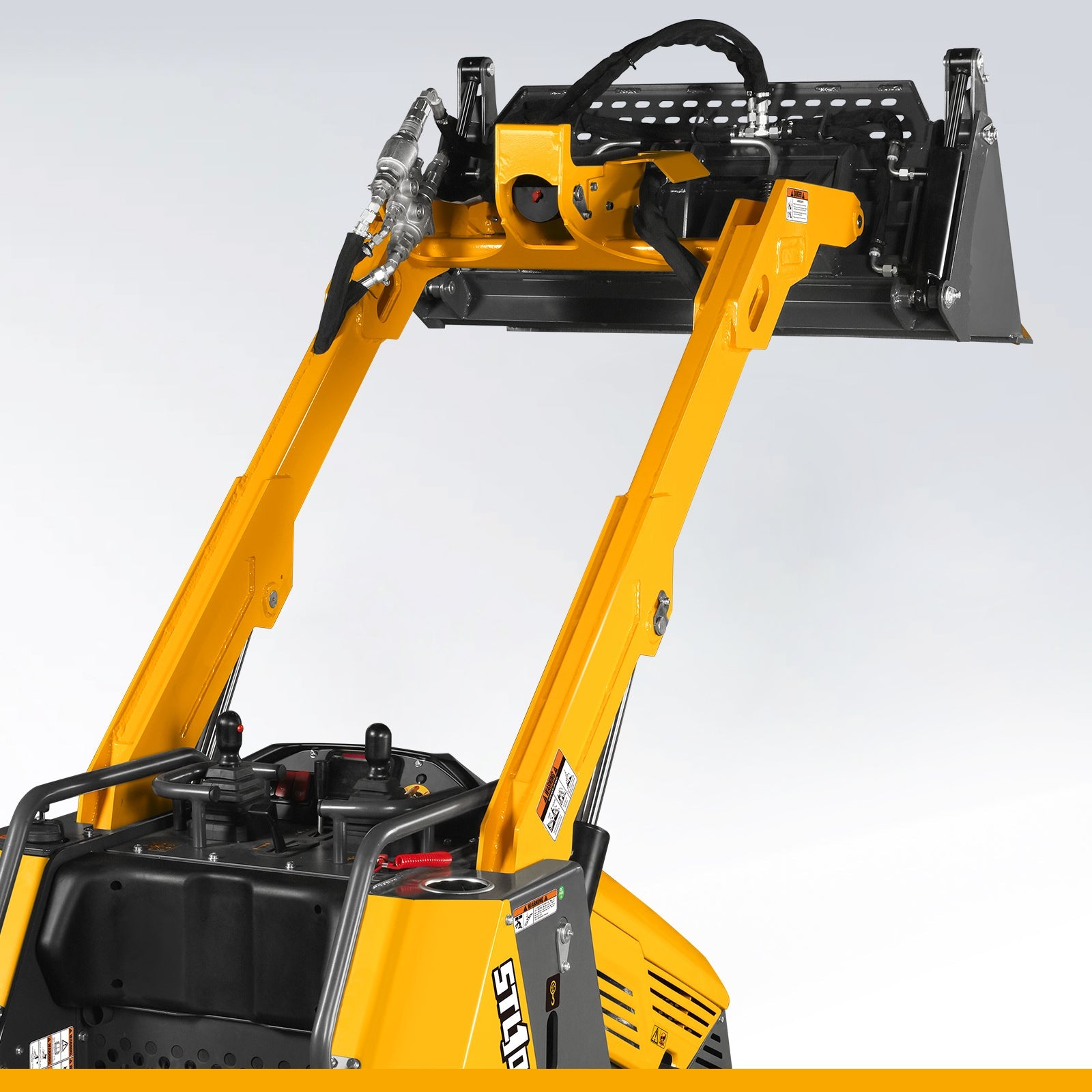

Hinge Pin Height At Max. Lift
83.5 in
Reach At Max. Lift And 45° Dump
19.2 in
Bucket Capacity
6.53 cu.ft.
Track Width
7.87 in
Ground Clearance
6.30 in
Angle of Departure
24.8°
OPERATION

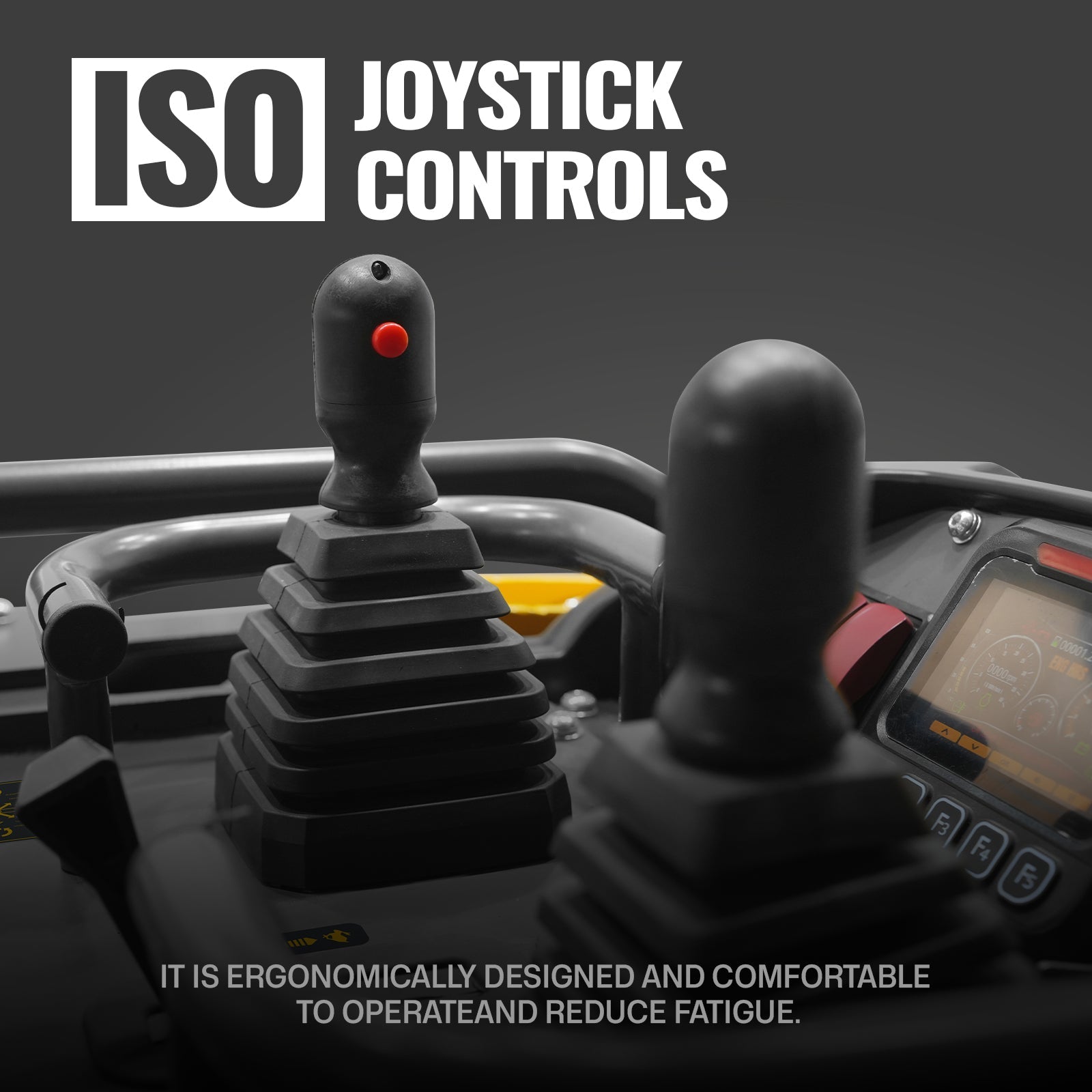

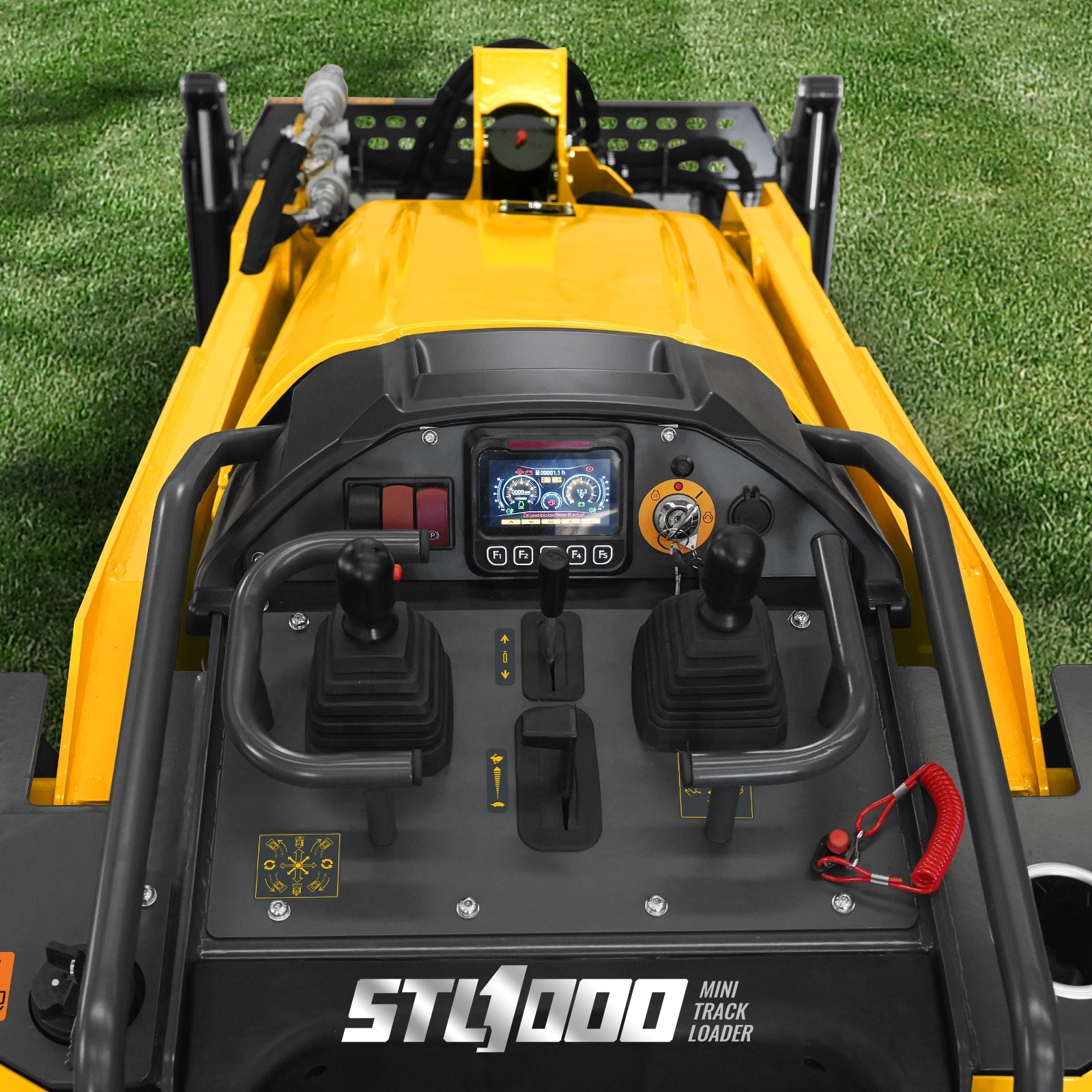

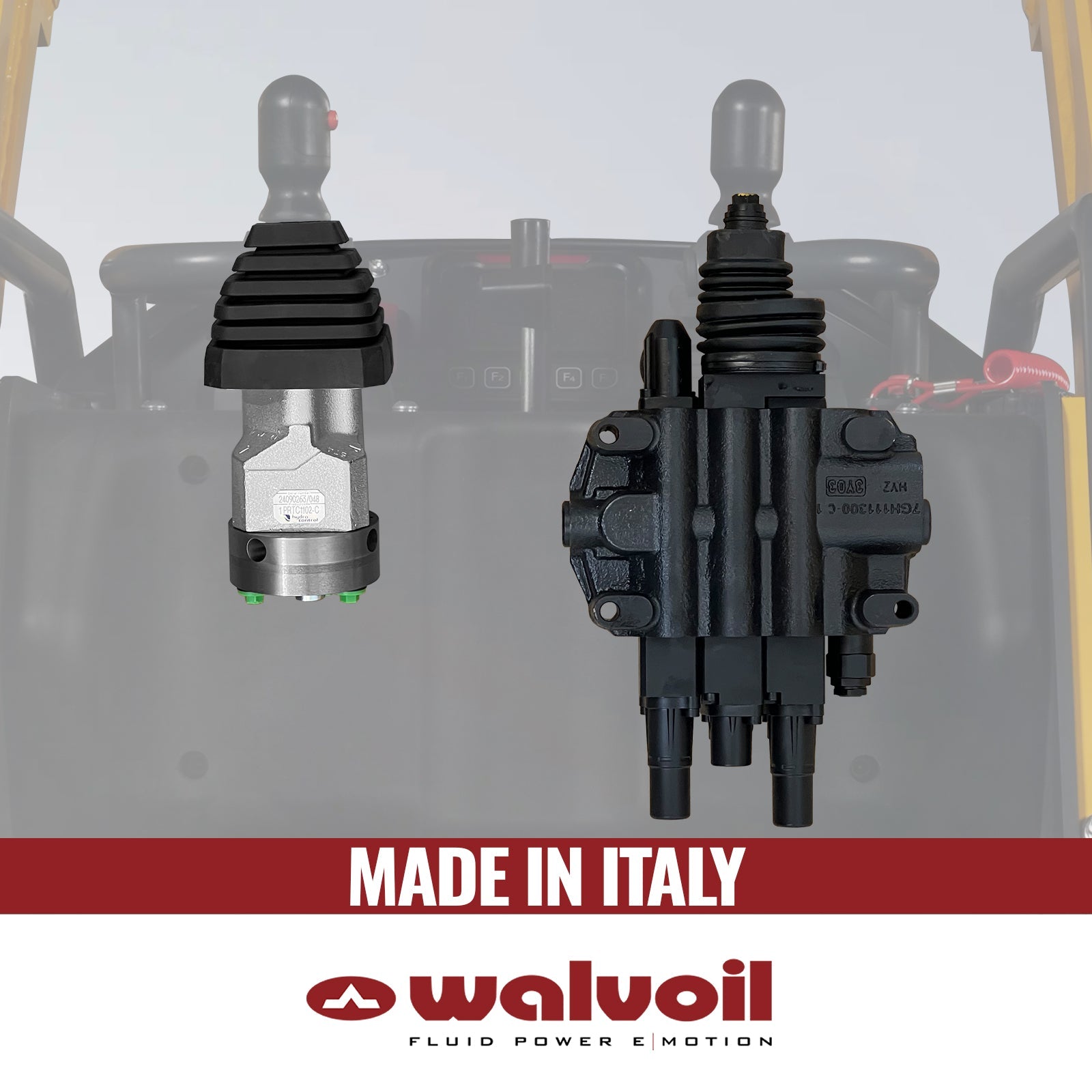

Steering And Drive
Dual axis, pilot-operated joystick
Lift And Tilt
Dual axis, manual-operated joystick
Transmission

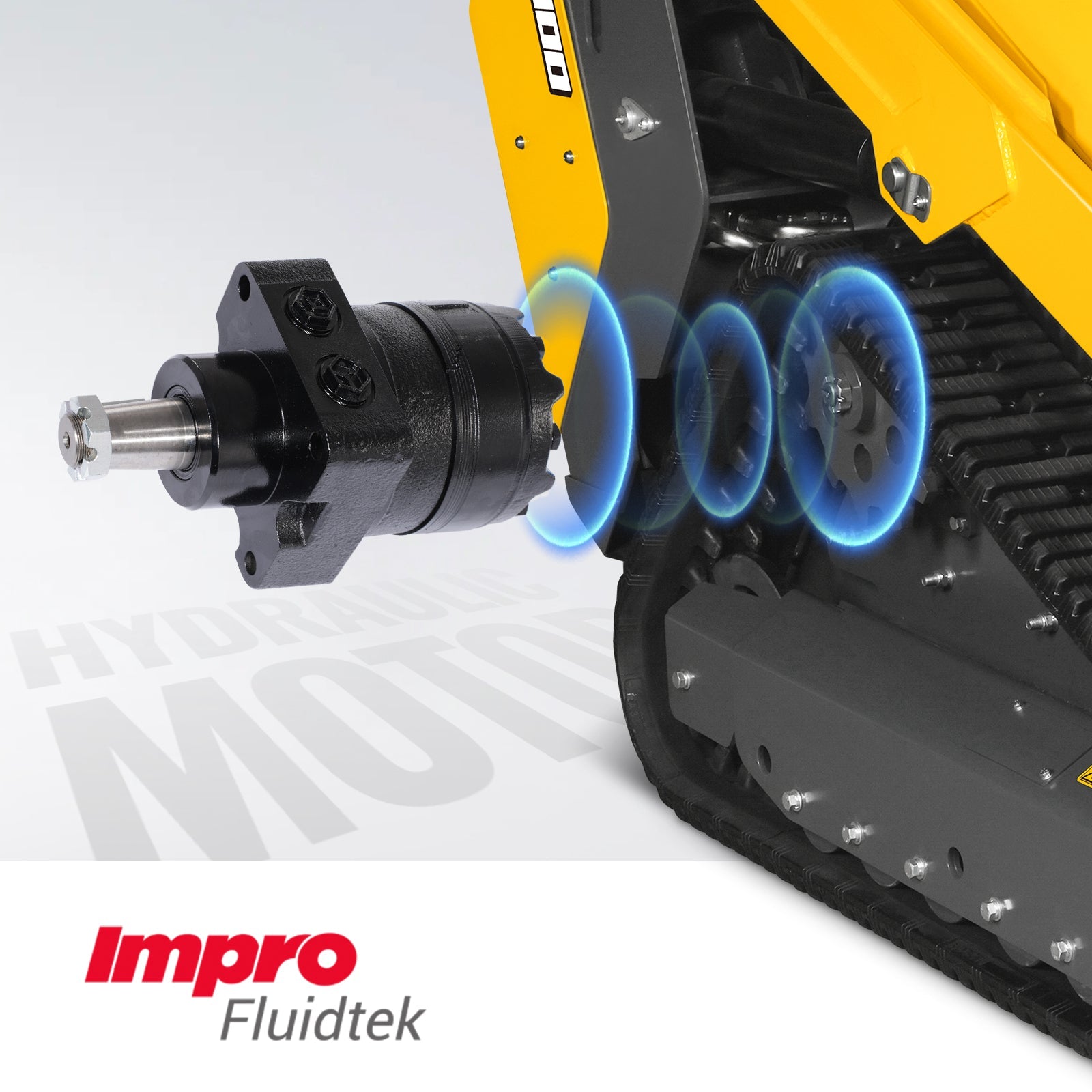

Hydrostatic track drive system
Attachment
One lever with dual direction detent
PERFORMANCE

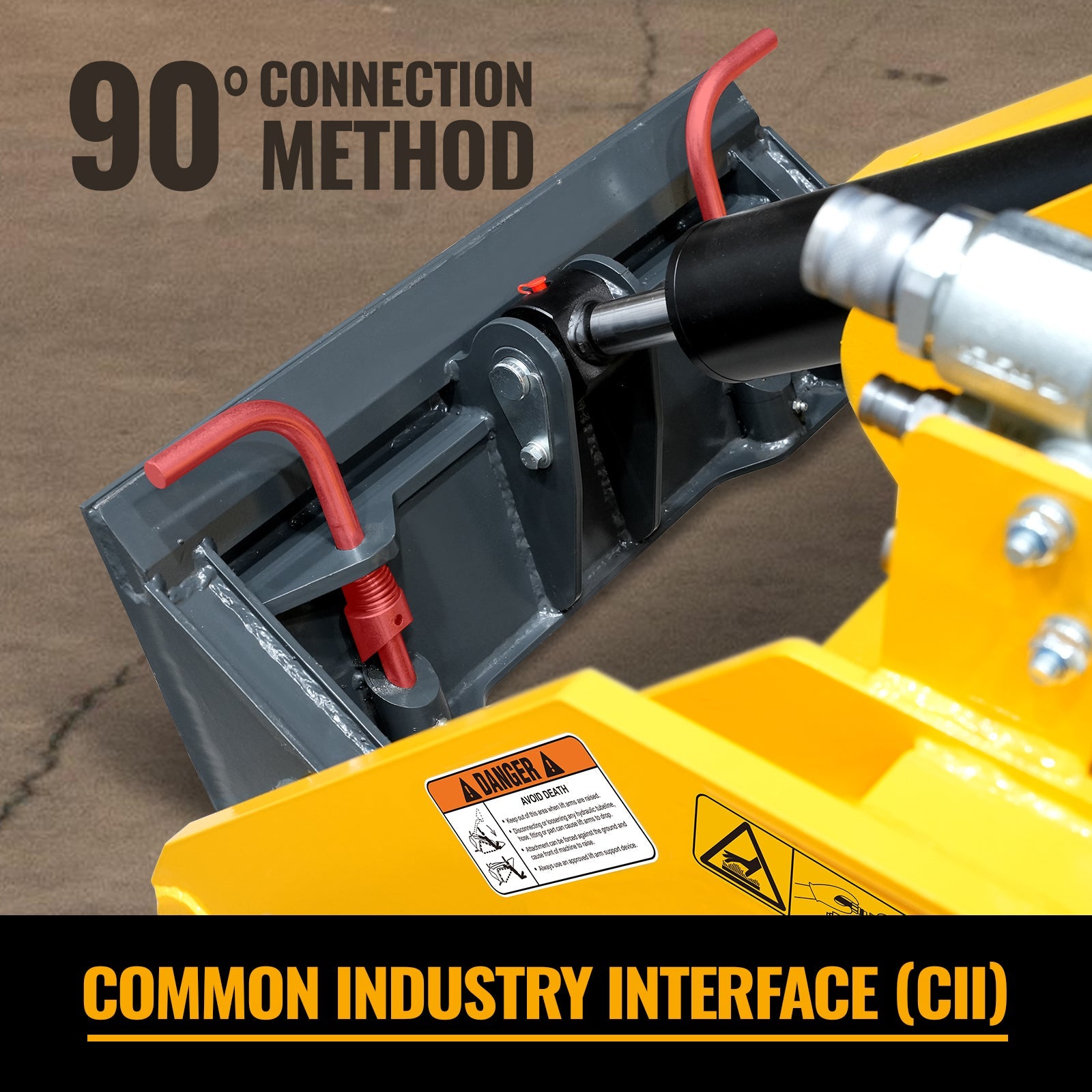

Attachment Mounting System
CII (Common Industry Interface)

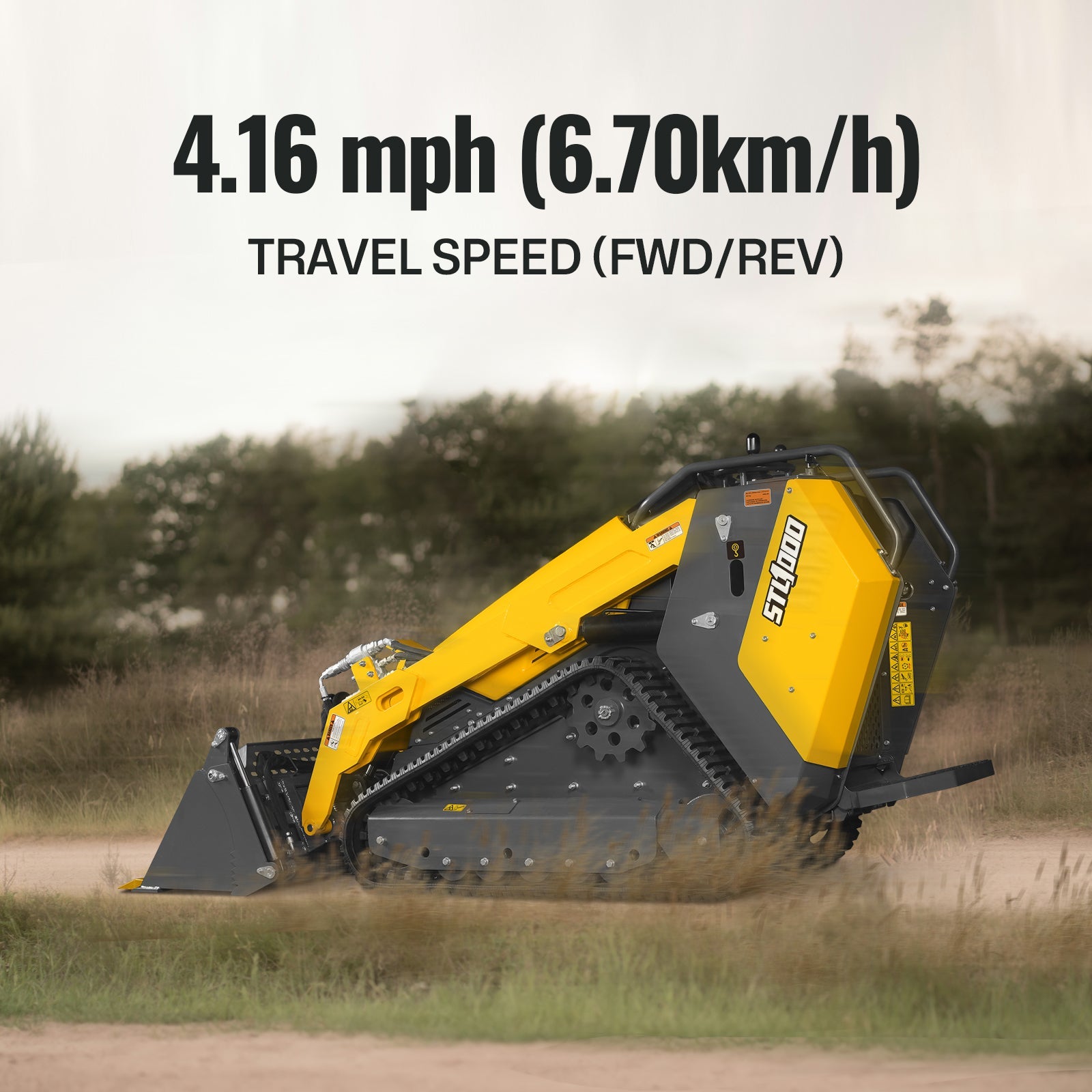

Travel Speed (Fwd/Rev)
4.16 mph (6.70km/h)

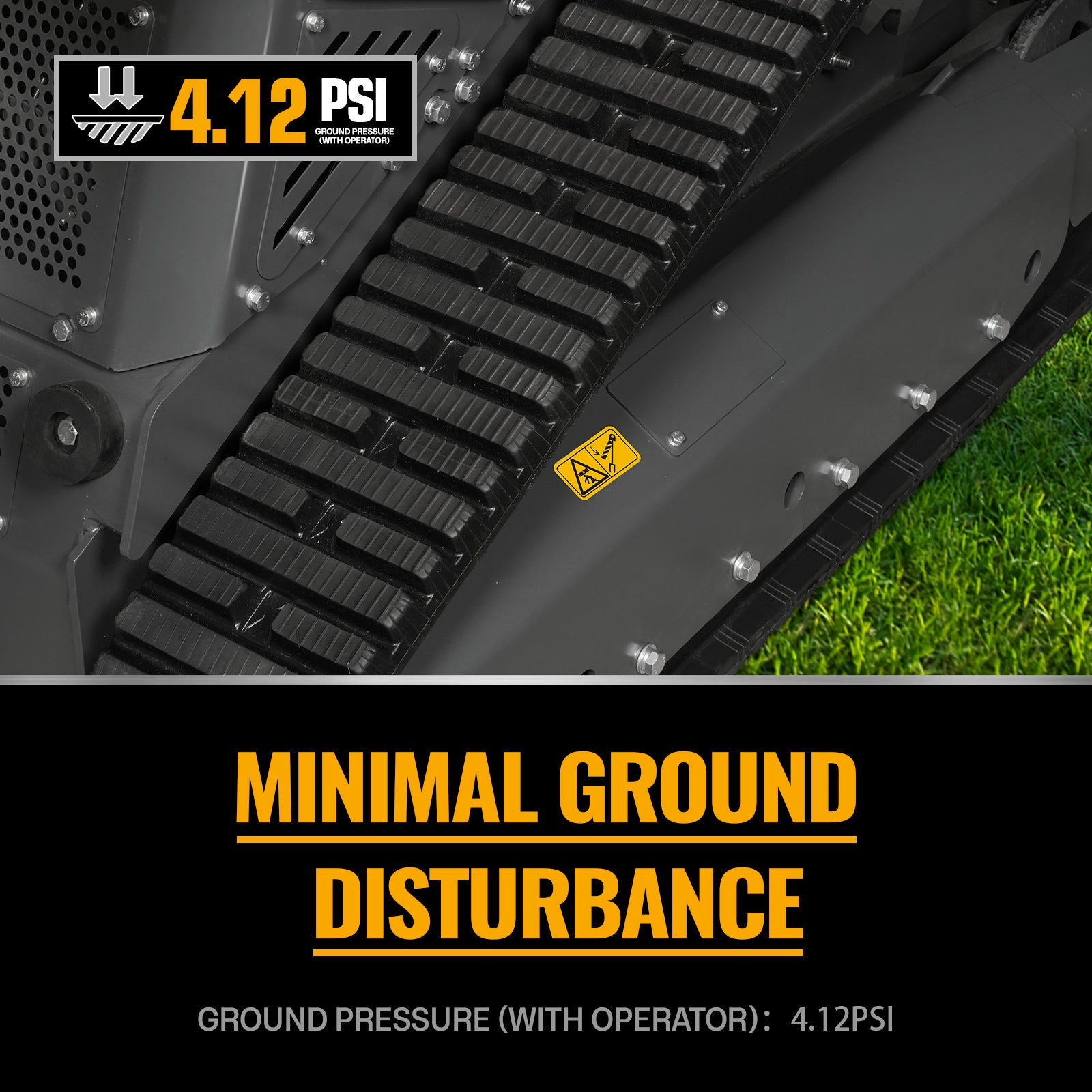

Ground Pressure (with Operator)
4.12 psi (28.4kpa)
Battery Capacity
12V, 55Ah

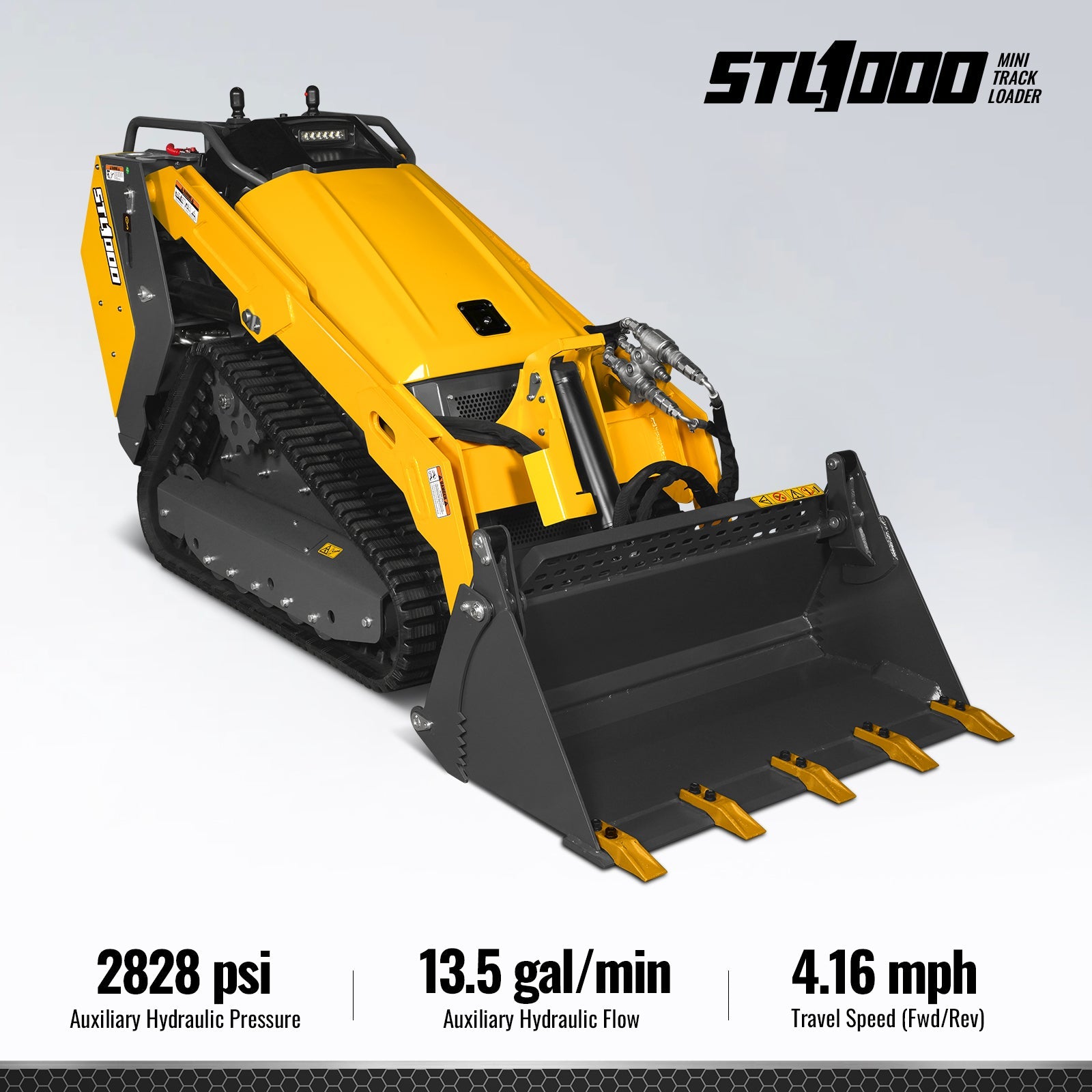

Auxiliary Hydraulic Flow
13.5 gal/min
Auxiliary Hydraulic Pressure
2828 psi (19.5Mpa)
SERVICE & FILL CAPACITIES
Fuel Tank Capacity
8.32 gal
Hydraulic System
5.54 gal

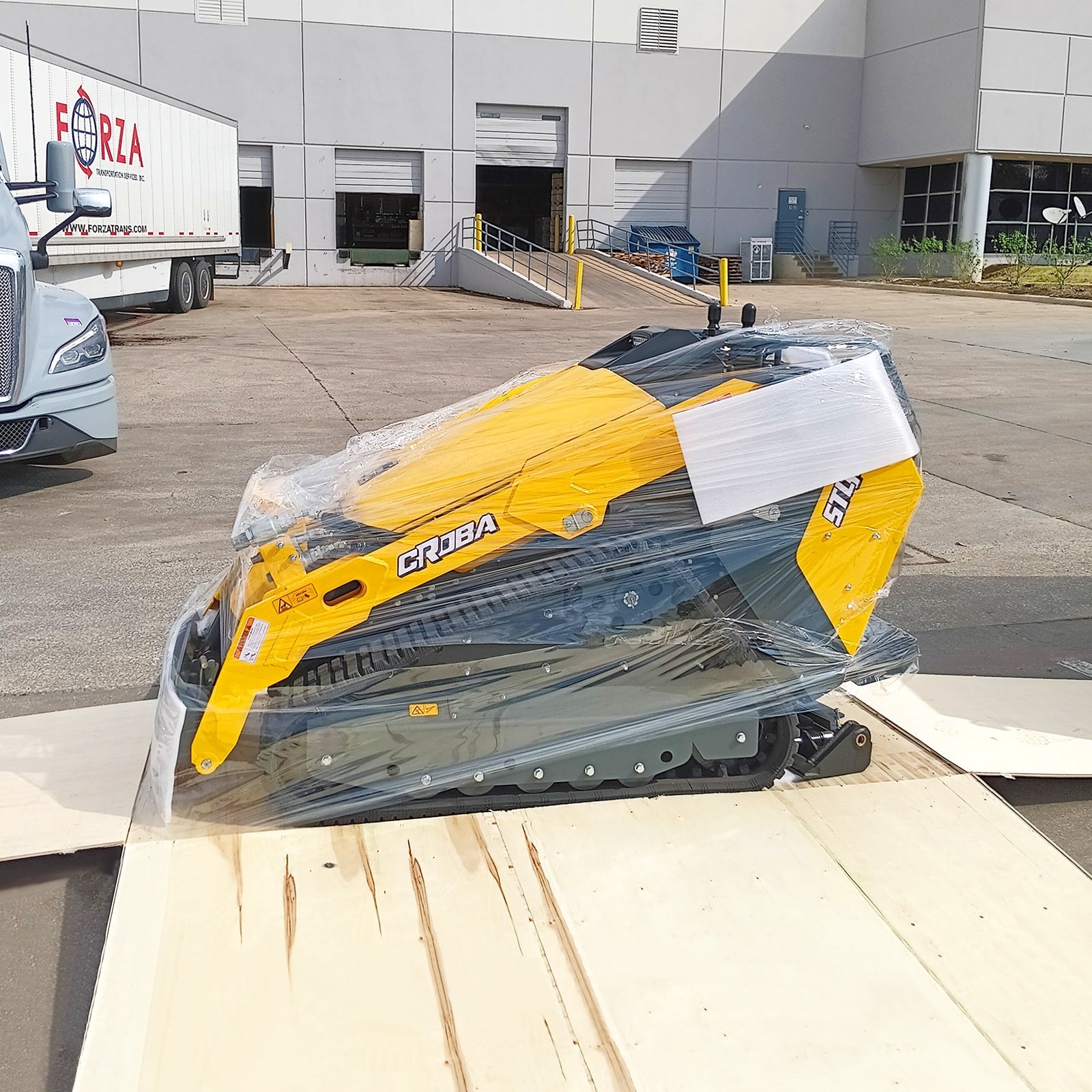

Package Method
Wood Case
Warranty for Machine
1 Year
Warranty for Engine
2-Year or 2,000-Hour Warranty, Whichever Comes First.
Packing Size
87 x 38 x 59 in
Shipping Weight
3087 lbs
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
