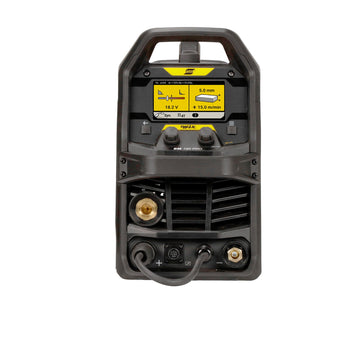

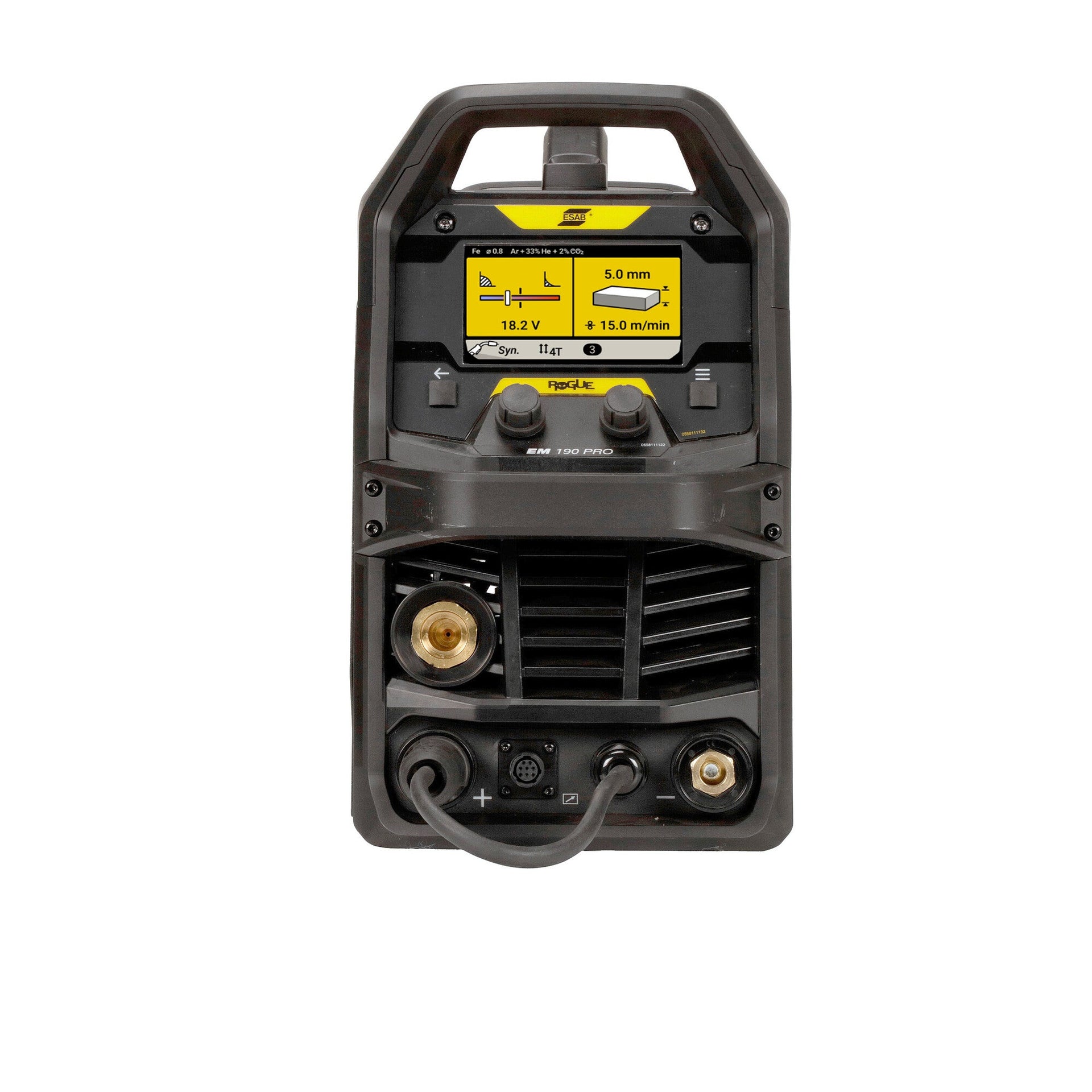

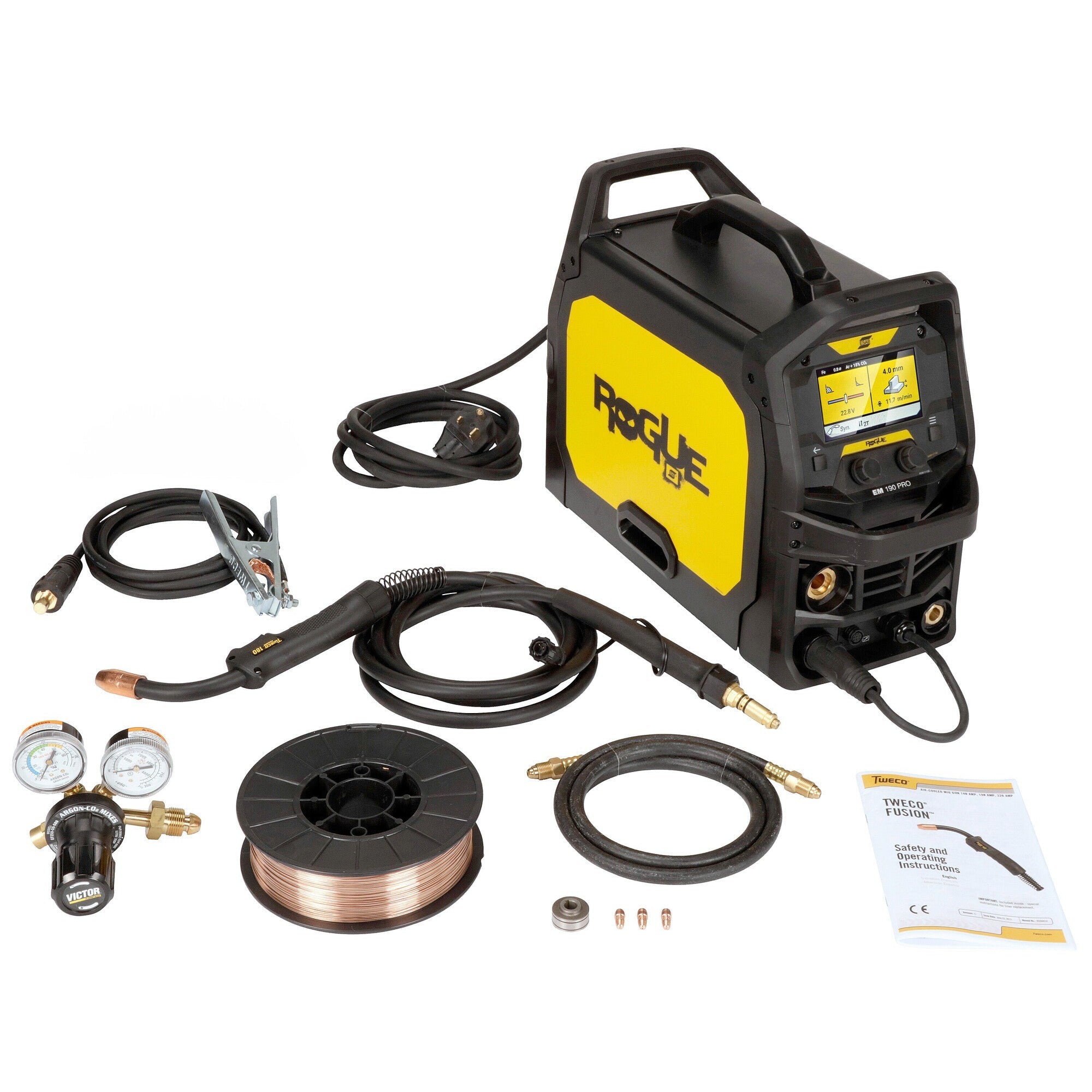

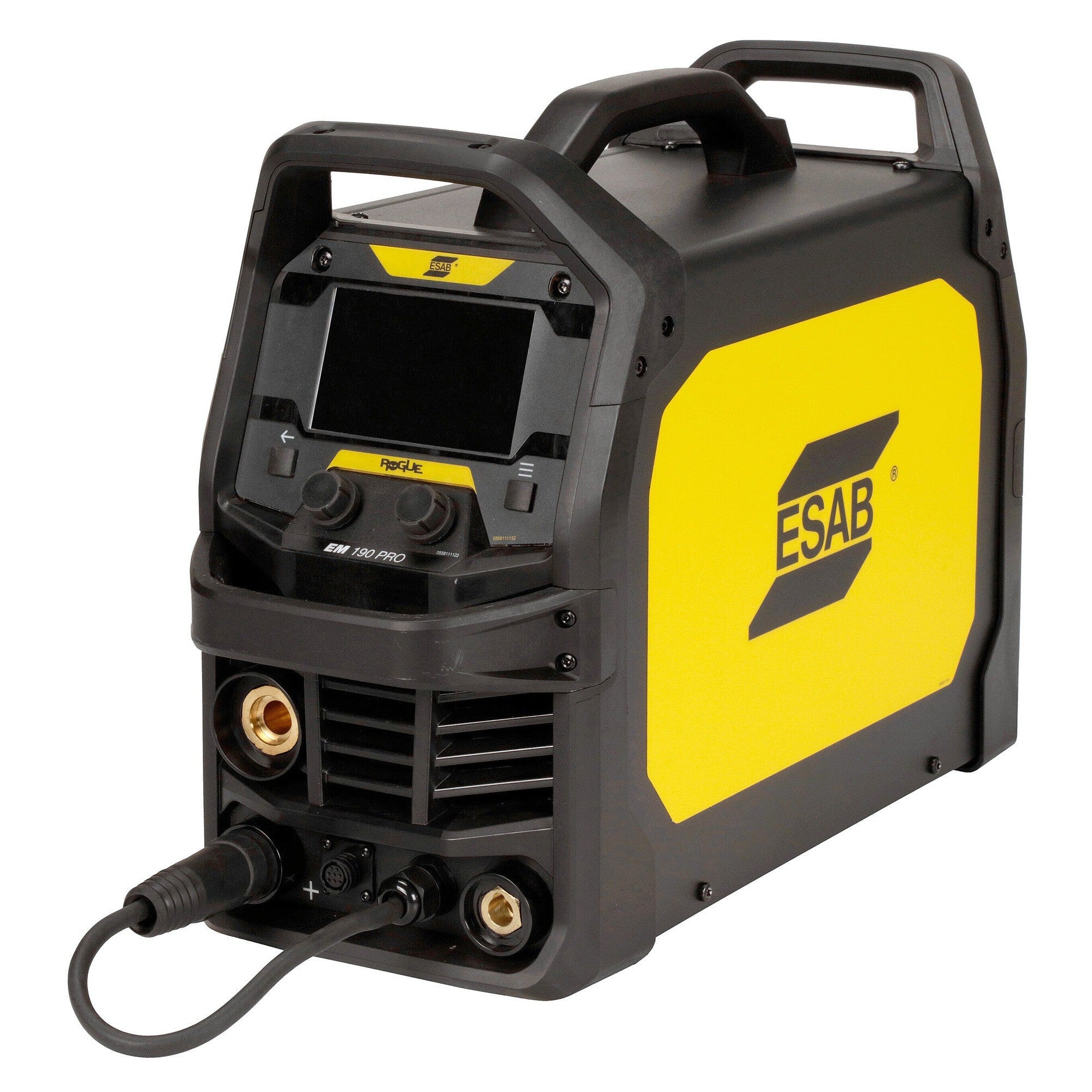

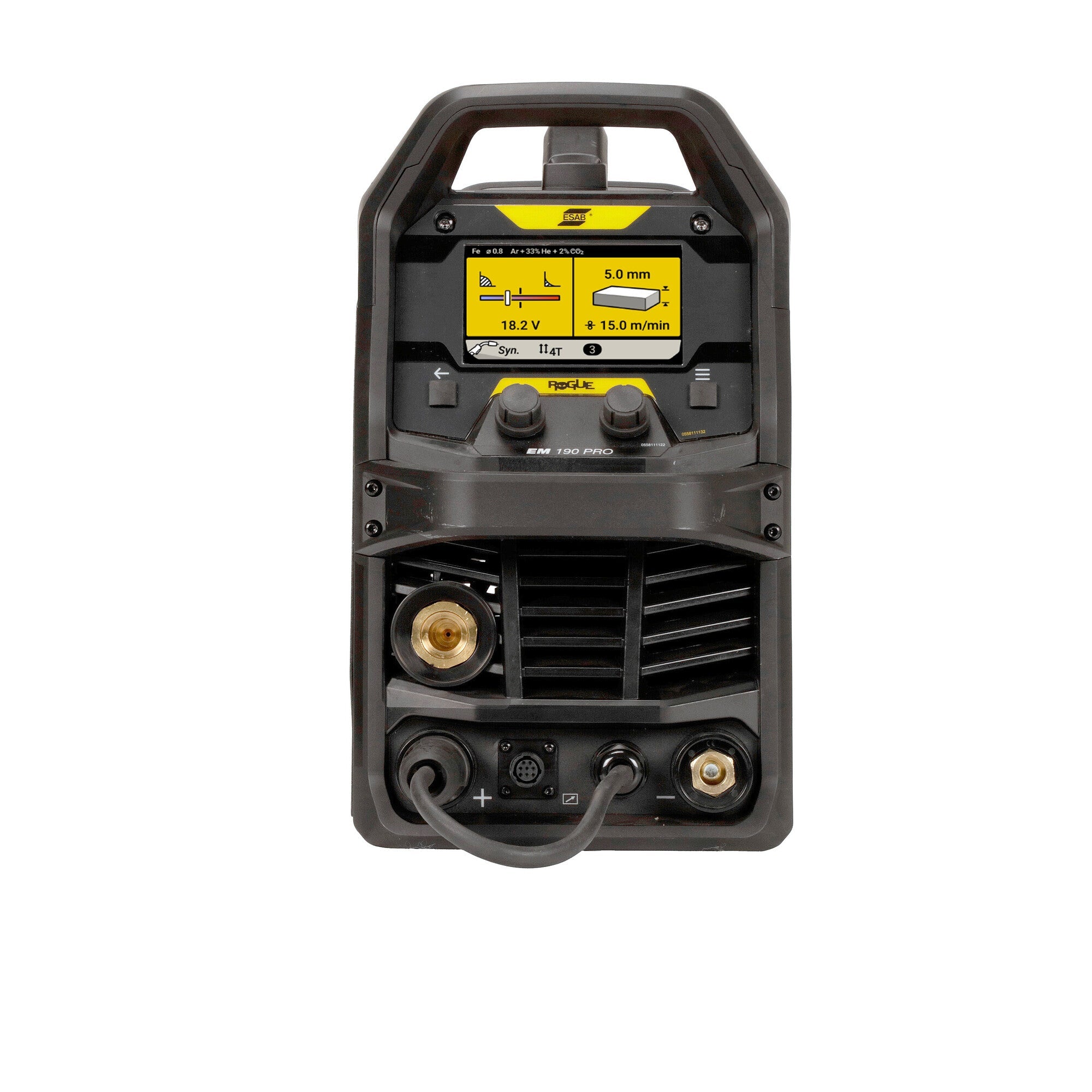

ESAB Rogue EM 190 MIG Welder - 0700301083

Description The ESAB Rogue EM 190 MIG Welder delivers a 190 Amp output and offers a duty cycle of 30% @ 145A. This system is designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and full-featured controls that allow the welder to fine-tune arc characteristics based on the material they are welding. With a weight of only 37.3 lbs, 230V single phase input, and compatibility with 6 kVA generators, this system provides maximum flexibility and portability, both in the shop and in the field. Max plate thickness is 1/4" Features • Full feature MIG/MAG machine for Synergic MIG/MAG, Manual MIG/MAG, MIG Brazing, Flux-Cored • Intuitive 5.0 in TFT screen offers clear views with direct interaction • Synergic Weld Programs (27) – full range of welding parameters, 0.5 – 10.0 mm (0.020 – 0. 375 in) with single knob control • Power Factor Correction (PFC) – ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m (328 ft) • Unique rugged industrial design – supporting multiple lift points and cable management • Arc Dynamics – fine tune arc characteristics for a crisp/stiff arc for carbon steel or a smooth/soft arc for stainless steel • Jobs – 10 memory save/recall function • Spool Gun Ready – Rogue automatically configures set up when spool gun is connected • Multi-language display – configure the display to 1 of 29 languages • Energy Save Mode – after 2 minutes of inactivity the unit will enter this state to reduce power consumption. • IP23S rated for indoor/outdoor use • 3 Year Warranty Included with Product • 190 MIG/MAG Power Source • Tweco Fusion 180 MIG Torch (10ft) • Victor Gas Regulator/Flow Gauge • Single voltage line 230V • Gas Hose (10ft) • (2) Feed Rolls (.023/.030) V Fitted & (.030/.035) VK Fitted • (2) Contact tips: 0.6mm/0.023in., 0.8mm/ 0.030in. • ESAB OK AristoRod .030 (2.2lb Spool) Specifications Click the image below to view the full spec sheet • Informational Video
