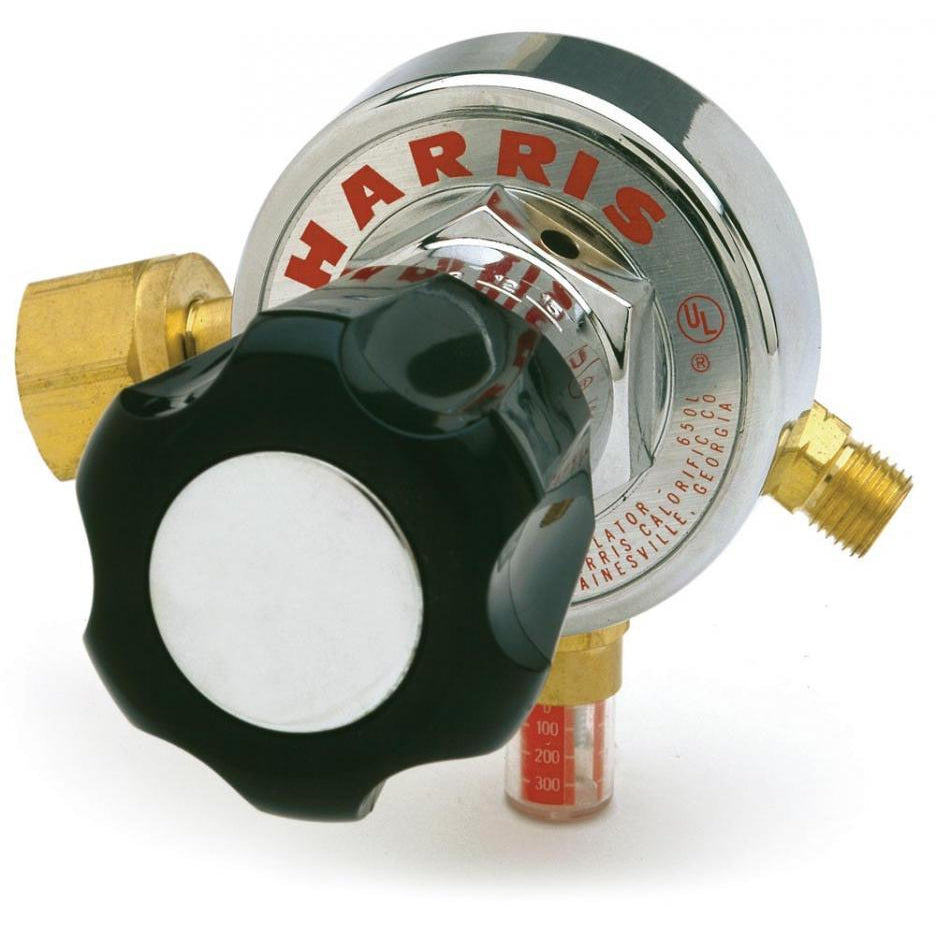

Harris 29-15C-510 Acetylene Heavy Duty Regulator - 3600260

Description Model 29 Heavy duty Gaugeless regulator is specifically designed for use in installations where rough handling of gas apparatus is commonplace. The color coded cylinder contents indicator and the delivery pressure calibration on the bonnet are easy to read. Features • Heavy duty gaugeless regulator designed for use in abusive conditions • Easy-to-view color-coded cylinder contents indicator • Delivery calibration on the bonnet is easy-to-read • Brass body and chrome-plated zinc bonnet for longer service life • Ergonomic ABS plastic knob for easy grip and precise adjustment • No gauge • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination • Neoprene diaphragm for improved pressure control • UL® listed • Made in the USA • 7 year warranty Specifications Equipment Adjusting Knob ABS plastic Body Chrome-plated brass Bonnet Chrome-plated zinc die cast Certification CGA E-4 UL listed Cv 0.17 Delivery Pressure Gauge (PSIG) - Delivery Pressure Range (PSIG) 0 - 15 Diaphragm Neoprene Duty Heavy Gas / Gas Service Acetylene Gauges Gaugeless Inlet Connection CGA 510 Maximum Inlet Pressure (PSIG) 500 Outlet Connection 9/16" - 18 LH Outlet Fittings 9/16" - 18 LH Pressure Regulation PSIG/100 PSIG 0.20 Regulator Type x Seat PTFE Teflon
