Description The Lincoln Magnum Pro 250LX Spool Gun is designed to be used with the larger PowerMig machines such as the 256 or the 260. ...
Couldn't load pickup availability
Secure checkout with
Description
The Lincoln Magnum Pro 250LX Spool Gun is designed to be used with the larger PowerMig machines such as the 256 or the 260.
Versatility Without Hassle
The Magnum PRO 250LX spool gun partners longer-lasting Magnum PRO contact tips with a durable spool gun design, making it the most versatile accessory for the POWER MIG family.
•
Magnum PRO Expendables – Utilizes premium Magnum PRO expendables for extended contact tip life, increasing the amount of arc-on time.
•
Connects Easily and Effectively – Plugs directly into the POWER MIG 256 and POWER MIG 260 without the need for an additional adapter.
•
Multi-Turn Wire Speed Adjustment – Adjust wire speed remotely at the gun with fine resolution so there is no need to travel back to the power source.
•

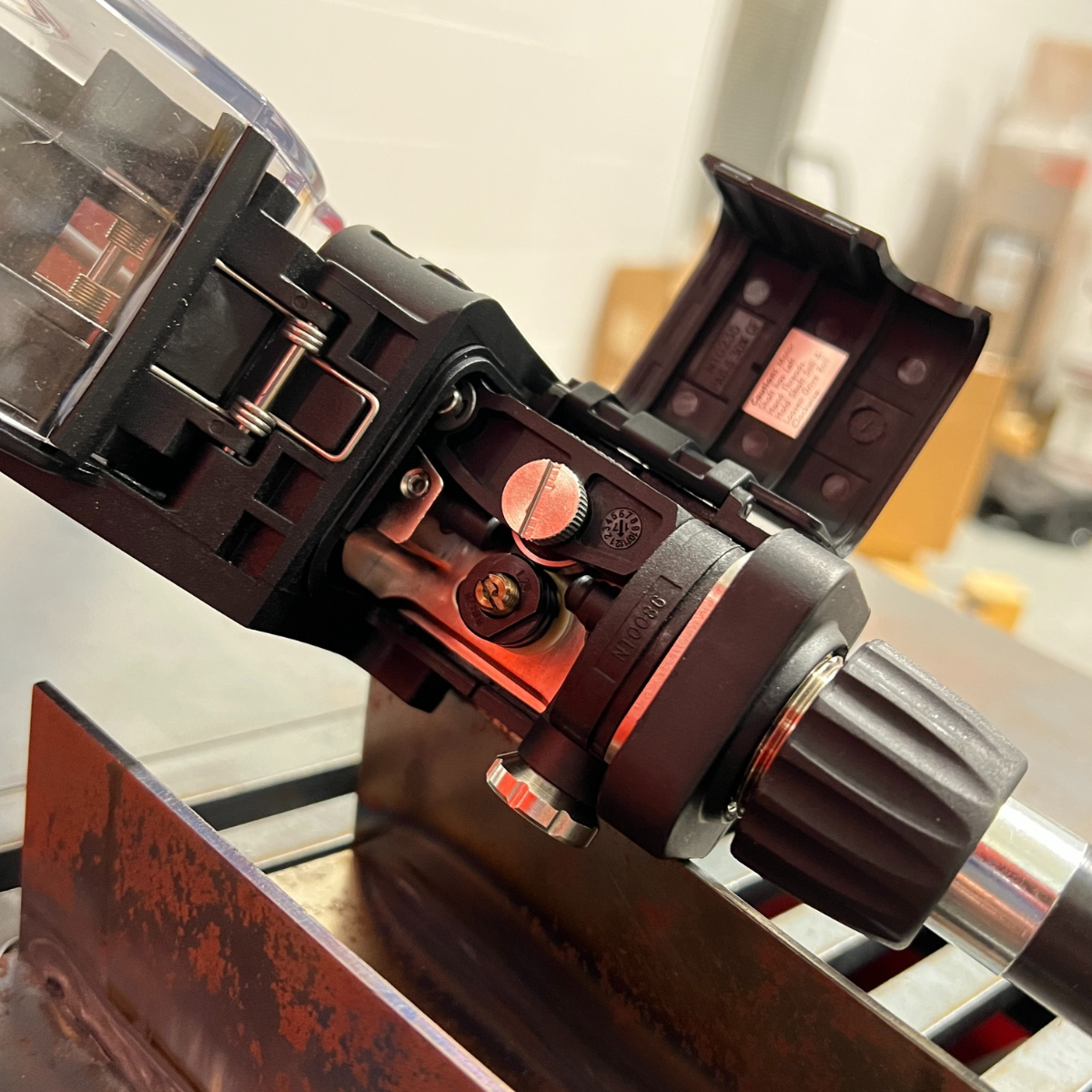

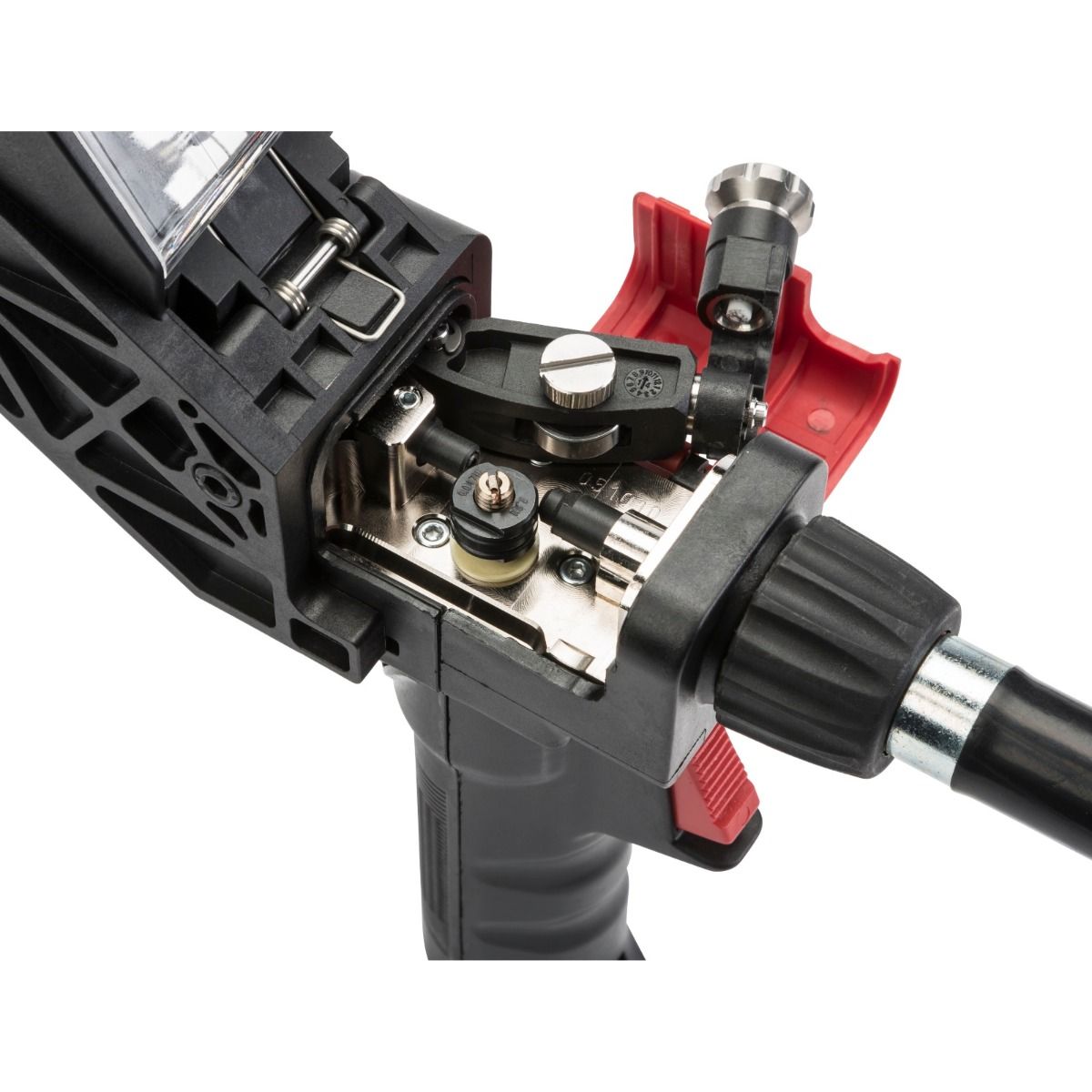

Tool-less Drive Roll Tension – Large thumbscrew makes fine adjustment of drive roll pressure effortless. Set screw allows for coarser adjustment if needed for steel.
Features
• Utilizes premium Magnum PRO expendables for extended contact tip life, increasing the amount of arc-on time.
• Plugs directly into the POWER MIG 256 and POWER MIG 260 without the need for an additional adapter.
• Adjust wire speed remotely at the gun with fine resolution so there is no need to travel back to the power source.
• Large thumbscrew makes fine adjustment of drive roll pressure effortless. Set screw allows for coarser adjustment if needed for steel.
Processes
•
MIG Aluminum
•
MIG Steel
Wire Diameter Range
•
.030-3/64 in. (0.8-1.2) Aluminum
•
.025-.035 in. (0.6-0.9) Steel

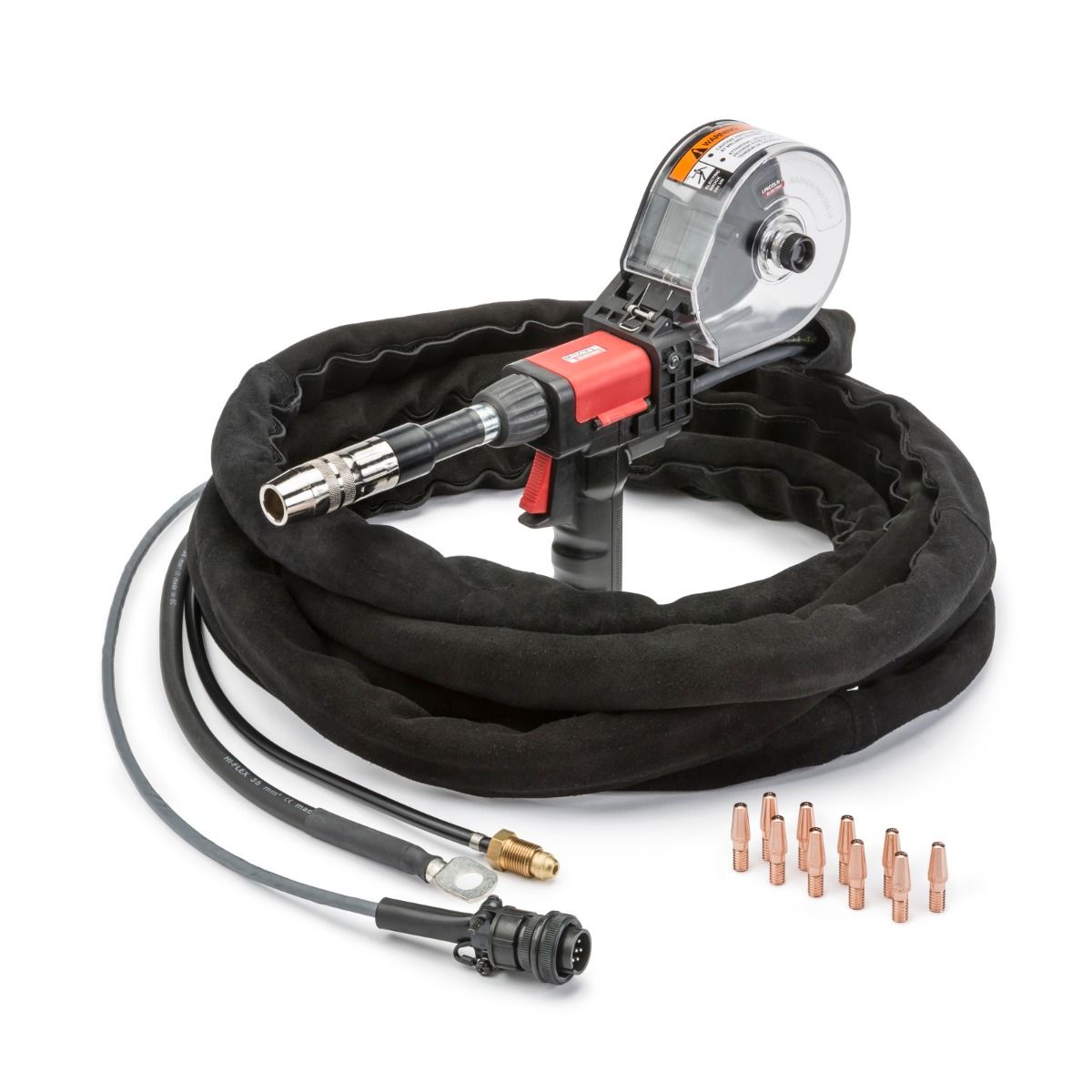

Included with Product
•
KP2747-1A - Diffuser, Thread-on, Aluminum 550A
•
KP2743-1-62RA - Gas Nozzle Assembly, Aluminum, 5/8 in., Recessed
•
KP2745-364AT - Tapered Contact Tip, Aluminum, 3/64 in.
•
KP2518-2 - Drive Roll, Aluminum, .030/.035 – 3/64 in.
•
KP2879-5 - Barrel Liner, 180°
•
KP2773-1 - Insulator, 550A
Specifications
Click the image below to view the full specification sheet
Compatible with
Lincoln Power MIG 256
Lincoln Power MIG 260
Lincoln Power MIG 350
