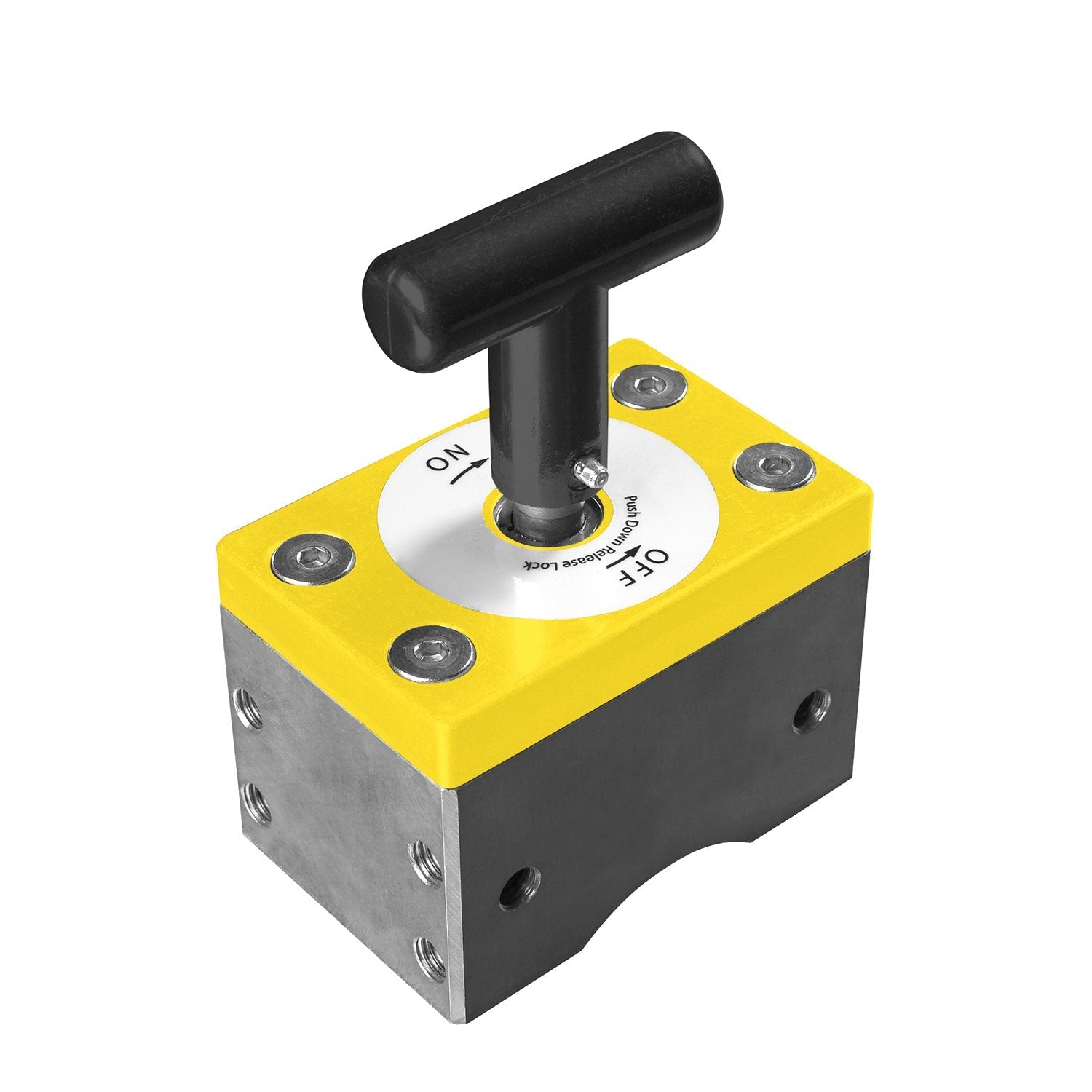

Magswitch Magsquare 1000 - 8100099

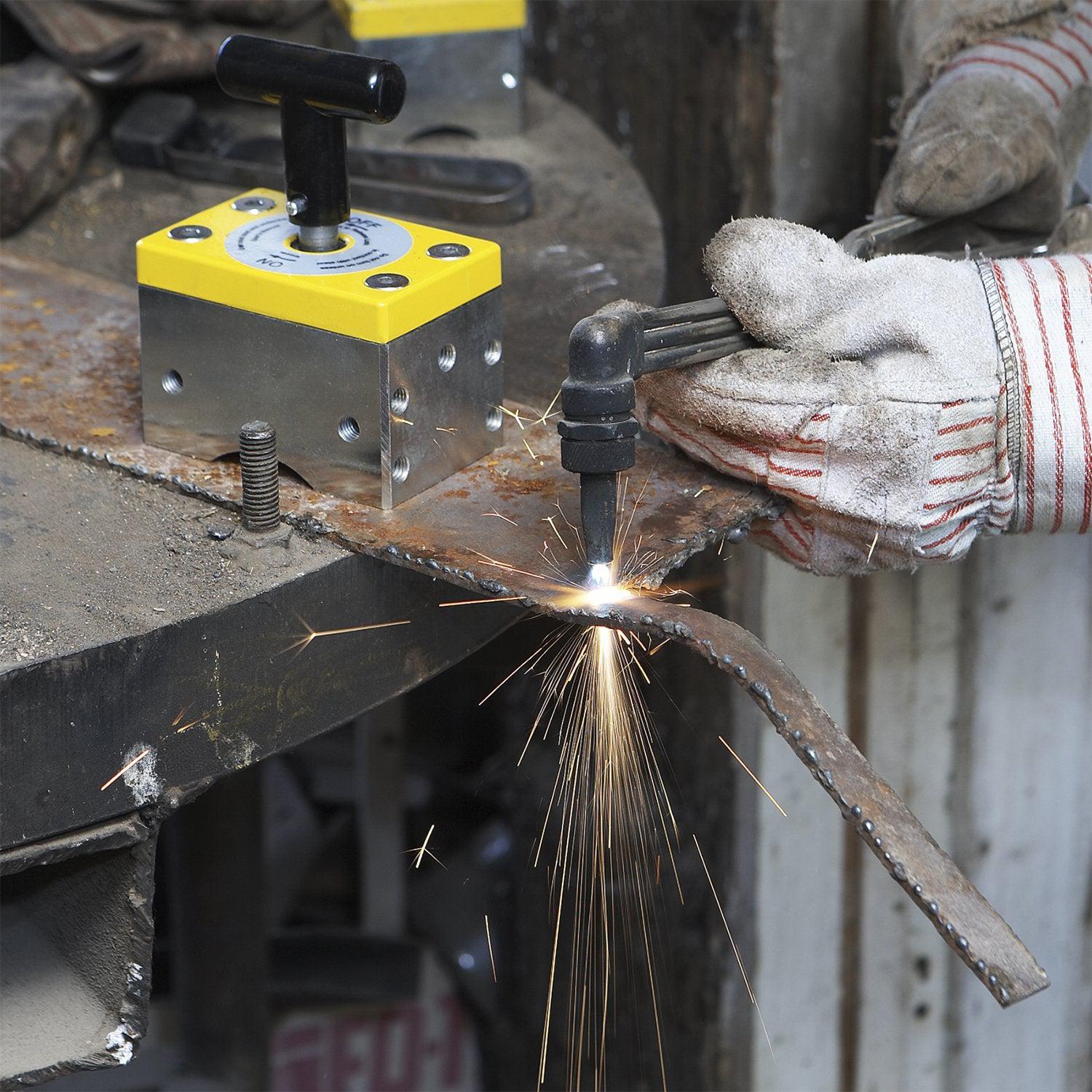

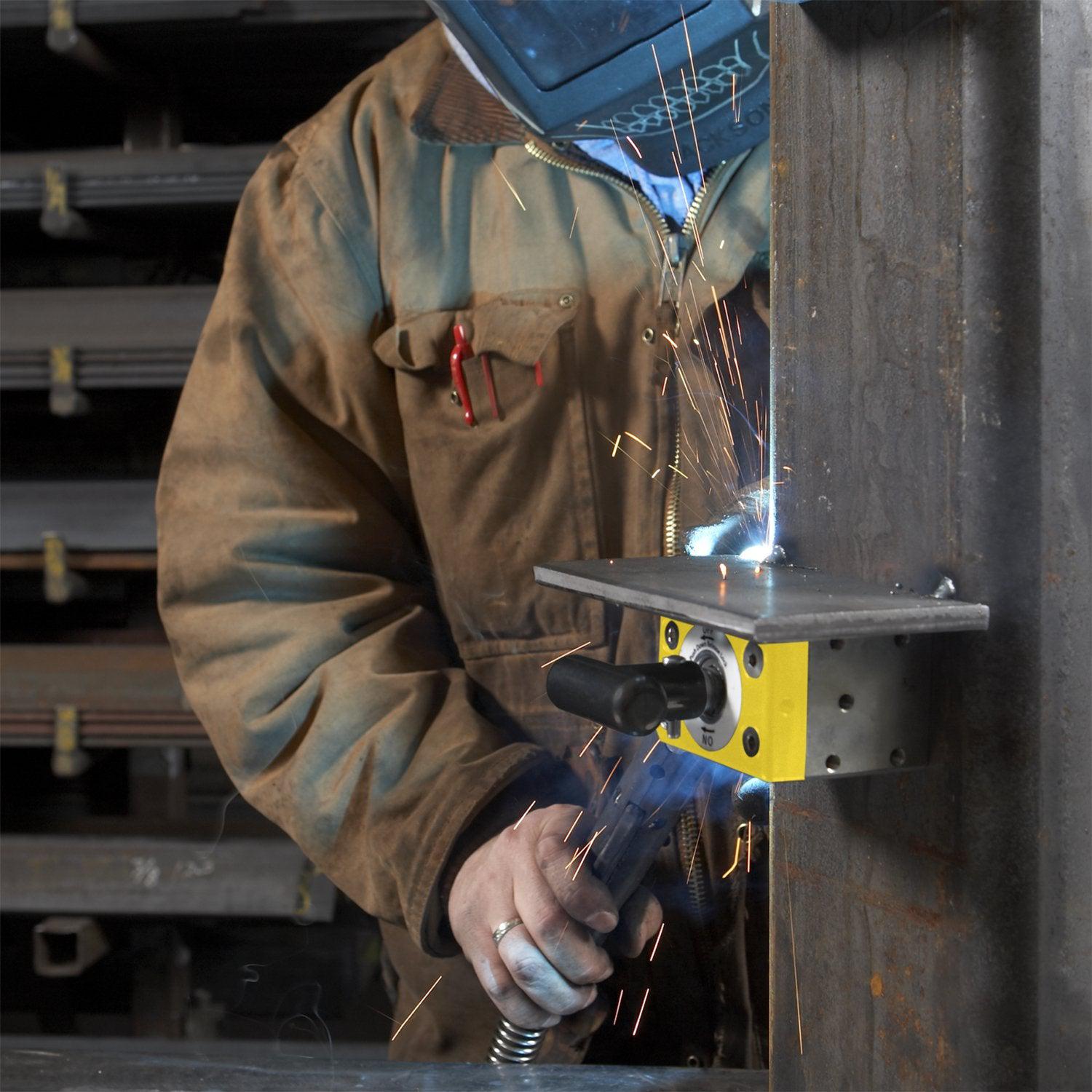

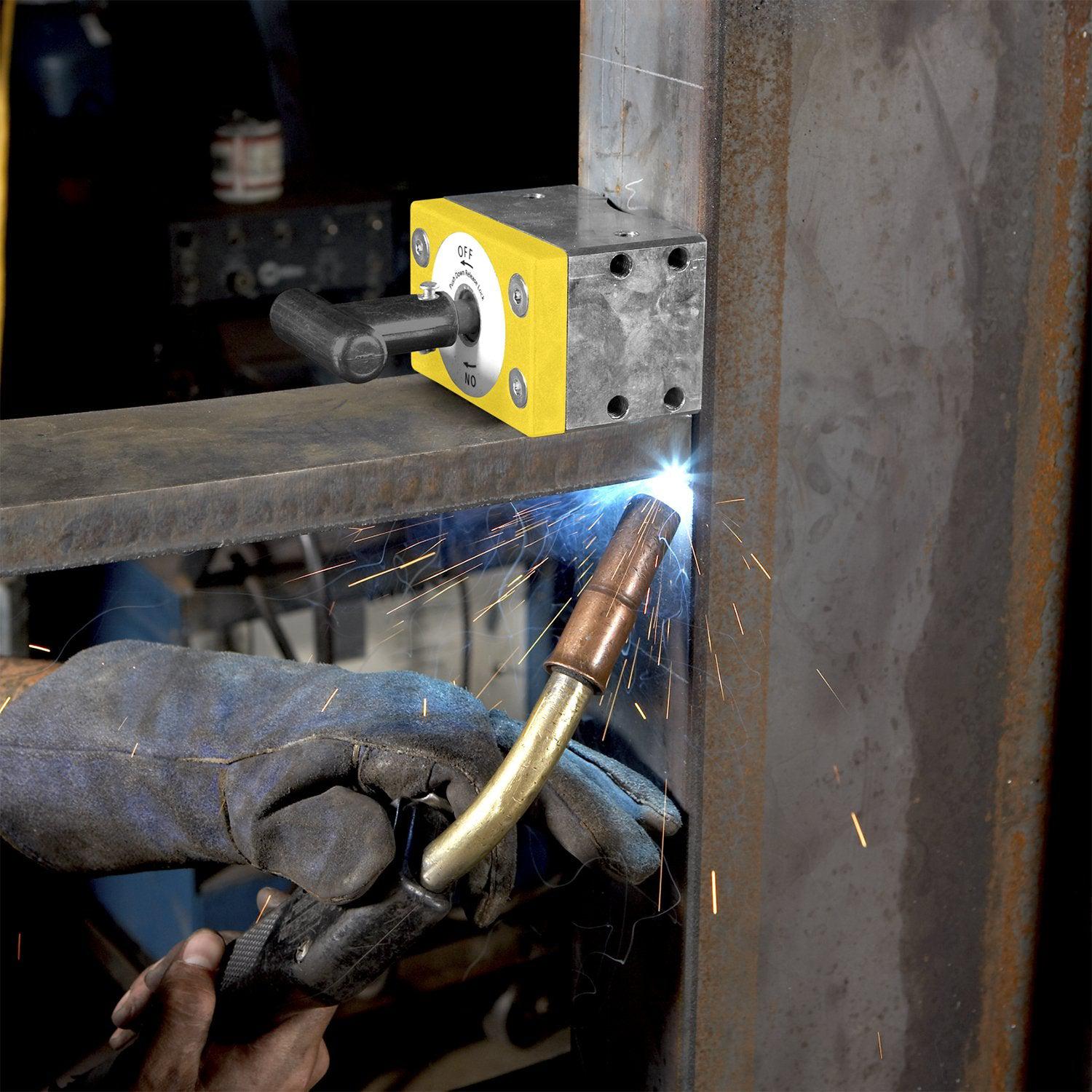

Description Hold just about anything, just about anywhere. The MagSquare 1000 is an On/Off Magnetic workholding square with 1000 lb. (450 kg) of hold force. Our MagSquares provide a new level of fast and easy multiplane workholding when positioning steel. Features: • On/Off Magswitch Magnet control. • Precise placement turns all the way off –stays clean. • Machined at 90 degrees. • Magnetic grip on 5 sides –strong on 3 sides. • Pipe notch -to grip flat and pipe. • Super fast set ups and instant workholding. • On/off control -No fighting magnet for precise positioning. • Stays clean – when off, debris falls off. • Multi Plane workholding with hold force on all sides. • Create your own fabrication jigs by mounting in M6 holes. • Stays clean –unlike traditional magnetic squares that hold on to metal chips even when off, with Magswitch you won’t cut your fingers cleaning away steel debris. Specifications • Max Breakaway: 1052 lbs (477.1 kg) • Full Saturation Thickness: 0.5” (13 mm) • 2:1 Shear Working Load: 148 lbs (67 kg) • Product Weight: 7.9 lbs (3.58 kg) • Dimensions: 4.3 x 2.8 x 5.8 in (76.2 x 71.1 x 147.3 mm) • Magnetic Pole Footprint: 72 mm x 108 mm
