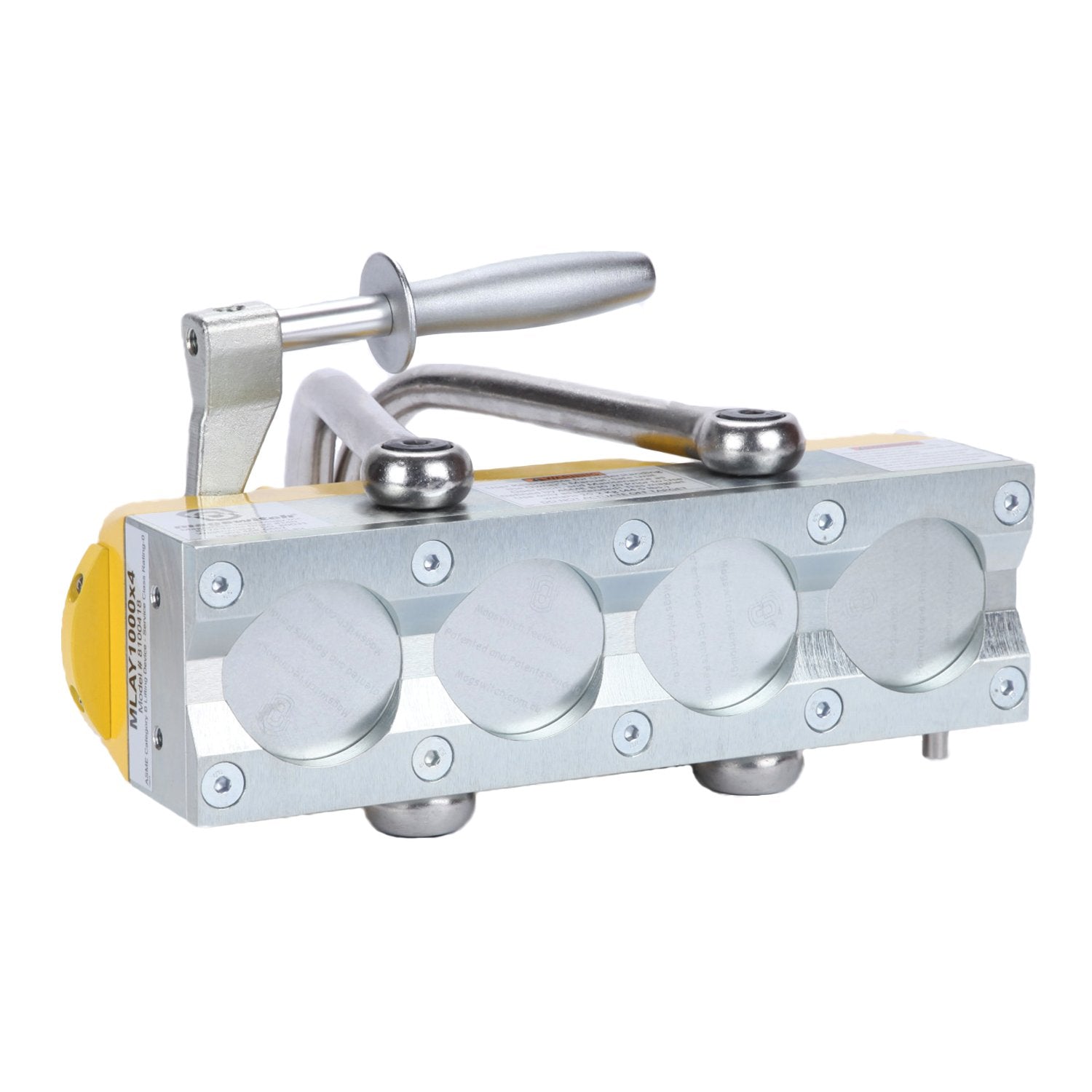

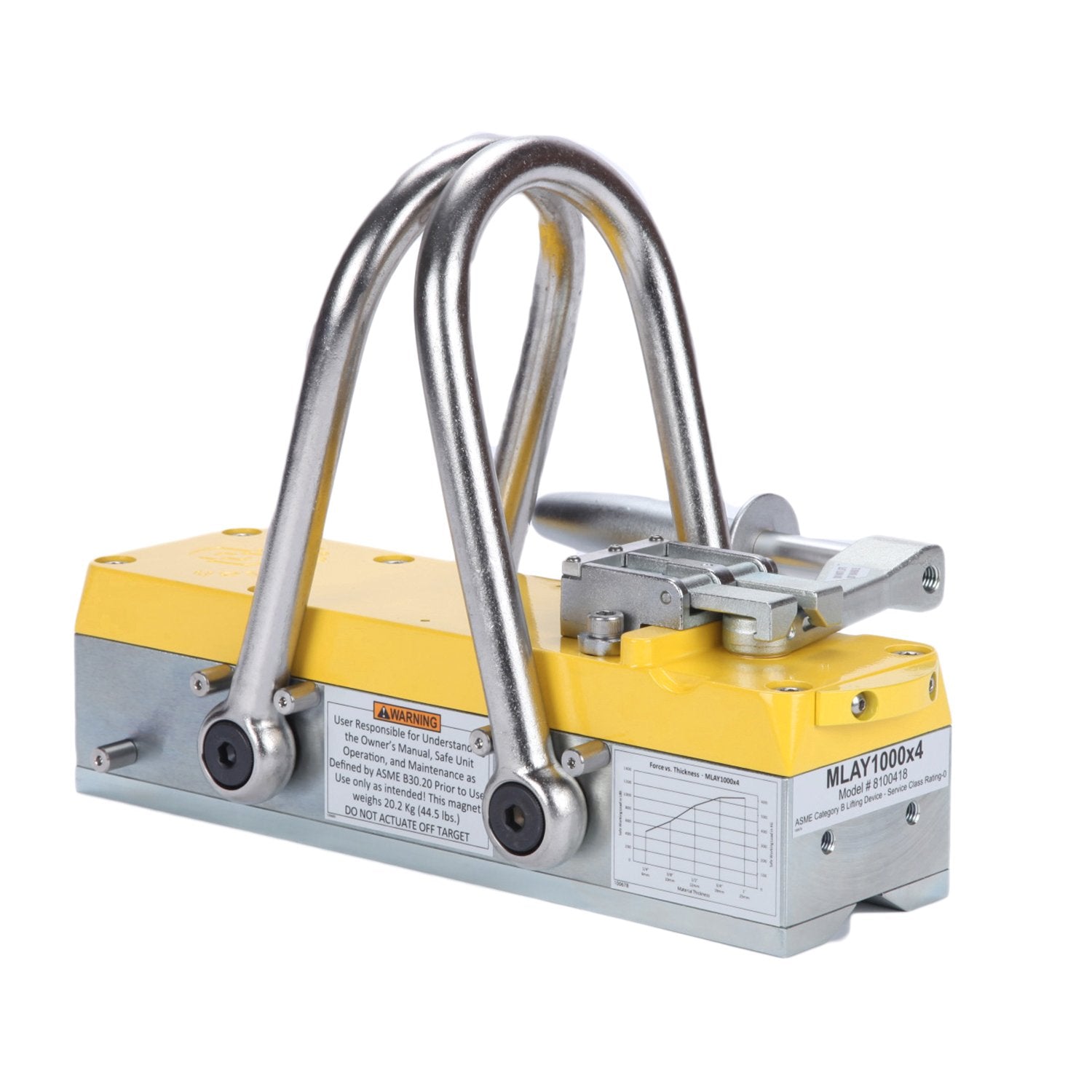

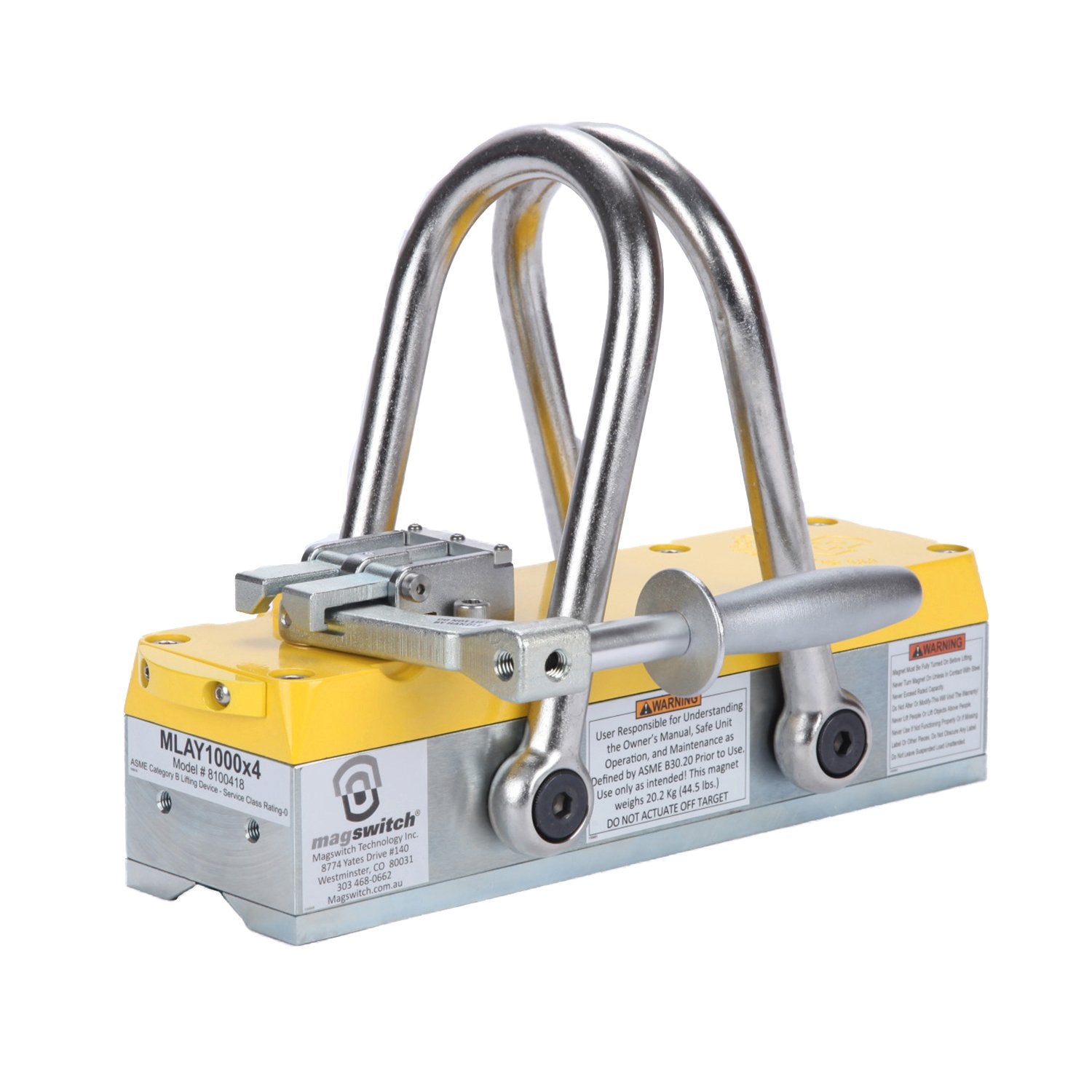

Magswitch MLA1000X4 Heavy Duty Lifter - 8100418

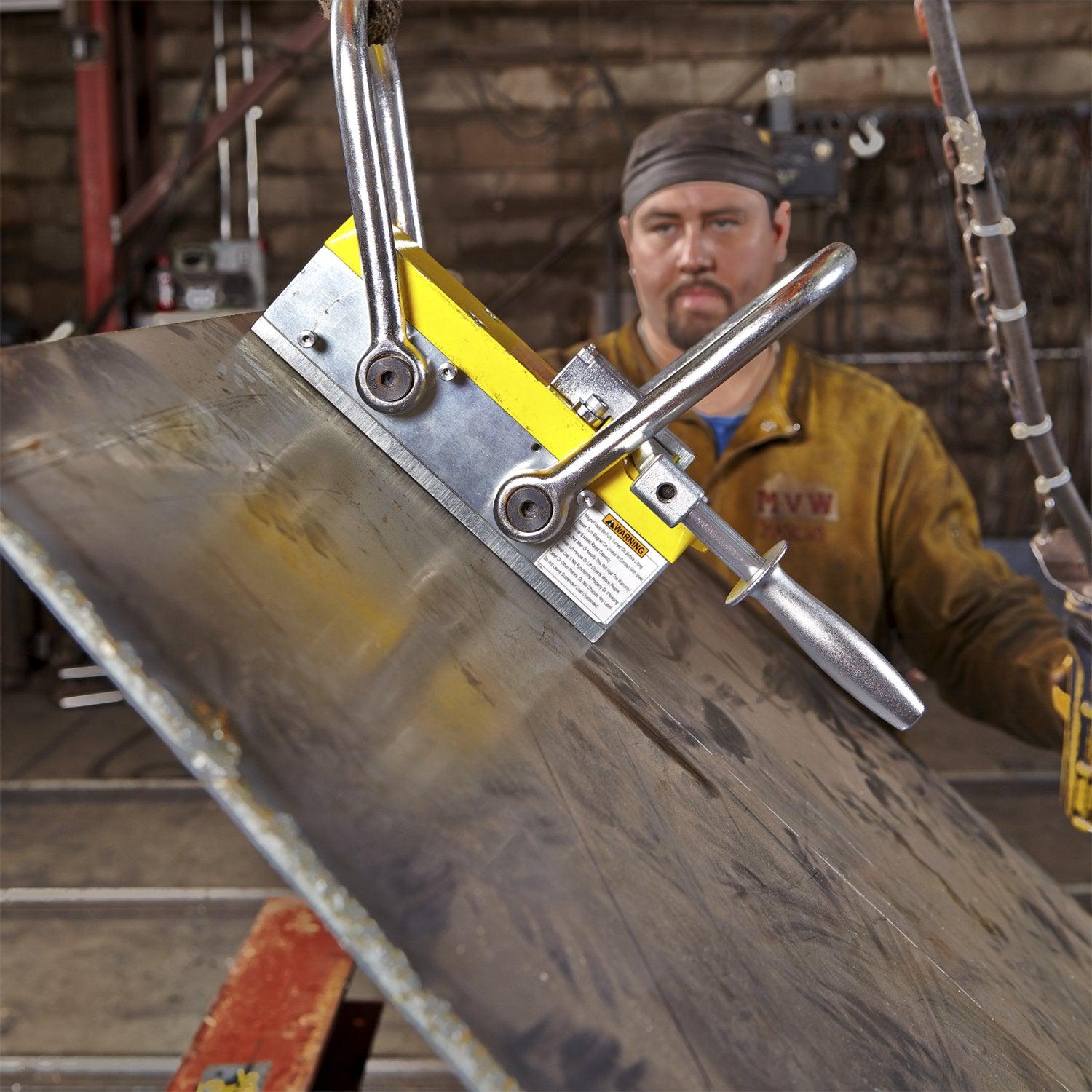

Description The Magswitch MLAY1000x4 lifting magnet is built for heavy-duty lifting, our magnet technology is powerful without the need for a power source. Safely lock in both the On and Off position with a magnetic holding force of 3640 pounds. The dual lift hook offers the stability to lift horizontally and a single hook to lift into a vertical position. Superior hold force on Thin steel (70mm deep field). • Compact, light weight and easy actuation. • Pivoting Hook allows lift from horizontal to vertical. • Pole Shoes – replaceable for long life, or make custom shoes match to target. • Lock on/ off handle. • Lifts Flat or Pipe. • Superior performance in the presence of air gaps such as rust, paint and uneven surfaces. • Better performance on thin steel allows Magswitch to fit the job with a lighter magnet and usually at a better price. *Special order item non cancellable or able to be returned  Specifications • Max Breakaway: 3640 lbs/1654 kg • Safe Working Load: 1213 lbs/551 kg • Full Saturation Thickness: 3/4” / 19.05mm • Max Safe Shear: 283 lbs/128.6 kg • Minimum Thickness for De-Stack: 3/4” / 19.05mm • Net Weight: 45.2 lbs/20.5 kg • Mounting Thread: M8x1.25 • Overall Height: 250.79 mm • Magnetic Pole Footprint: 336mm x 97.6mm
