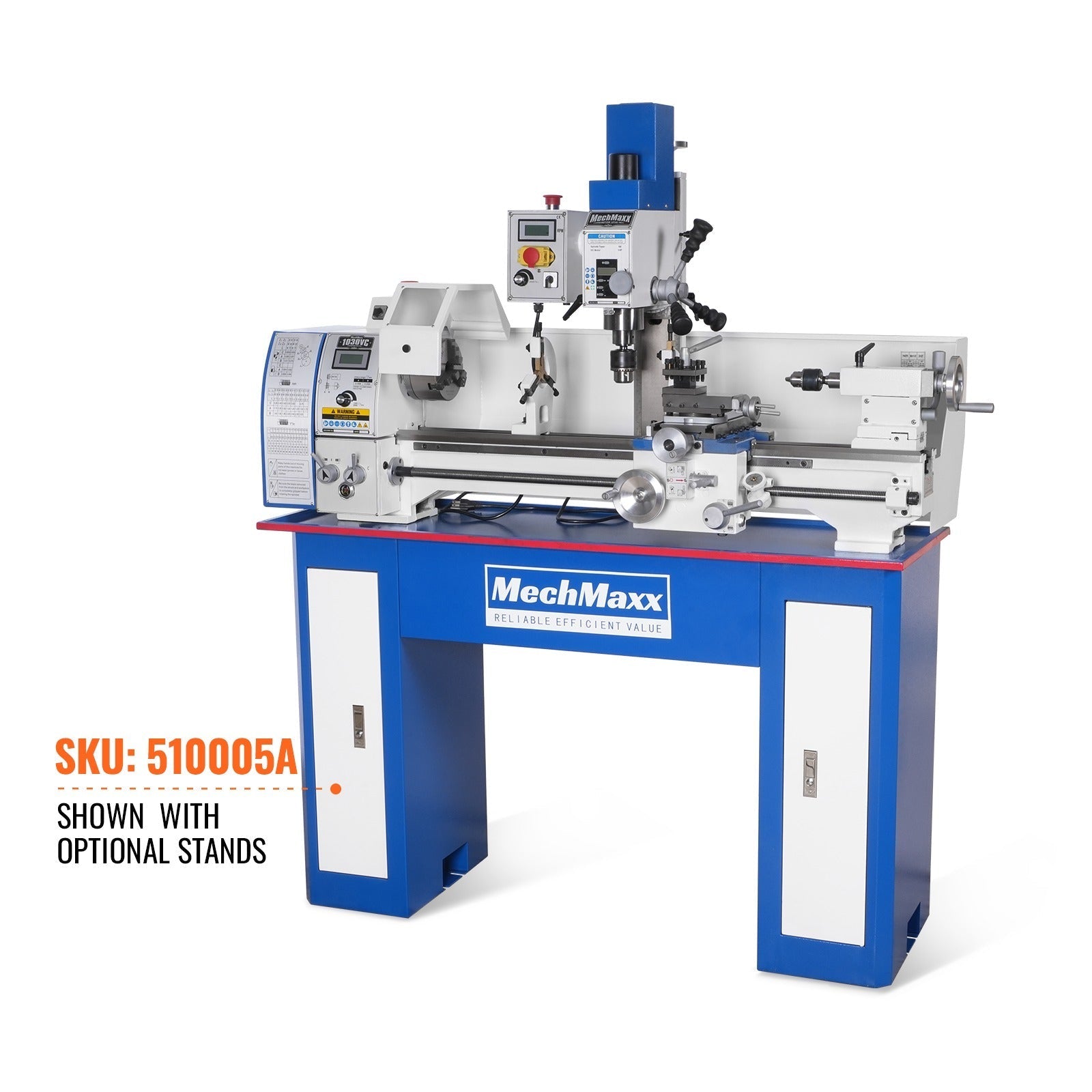

MechMaxx 1130VC Combination Lathe Milling Machine 2 HP 11" x 30" Brushless Variable Speed Benchtop Metalworking Lathe Drilling Machine New

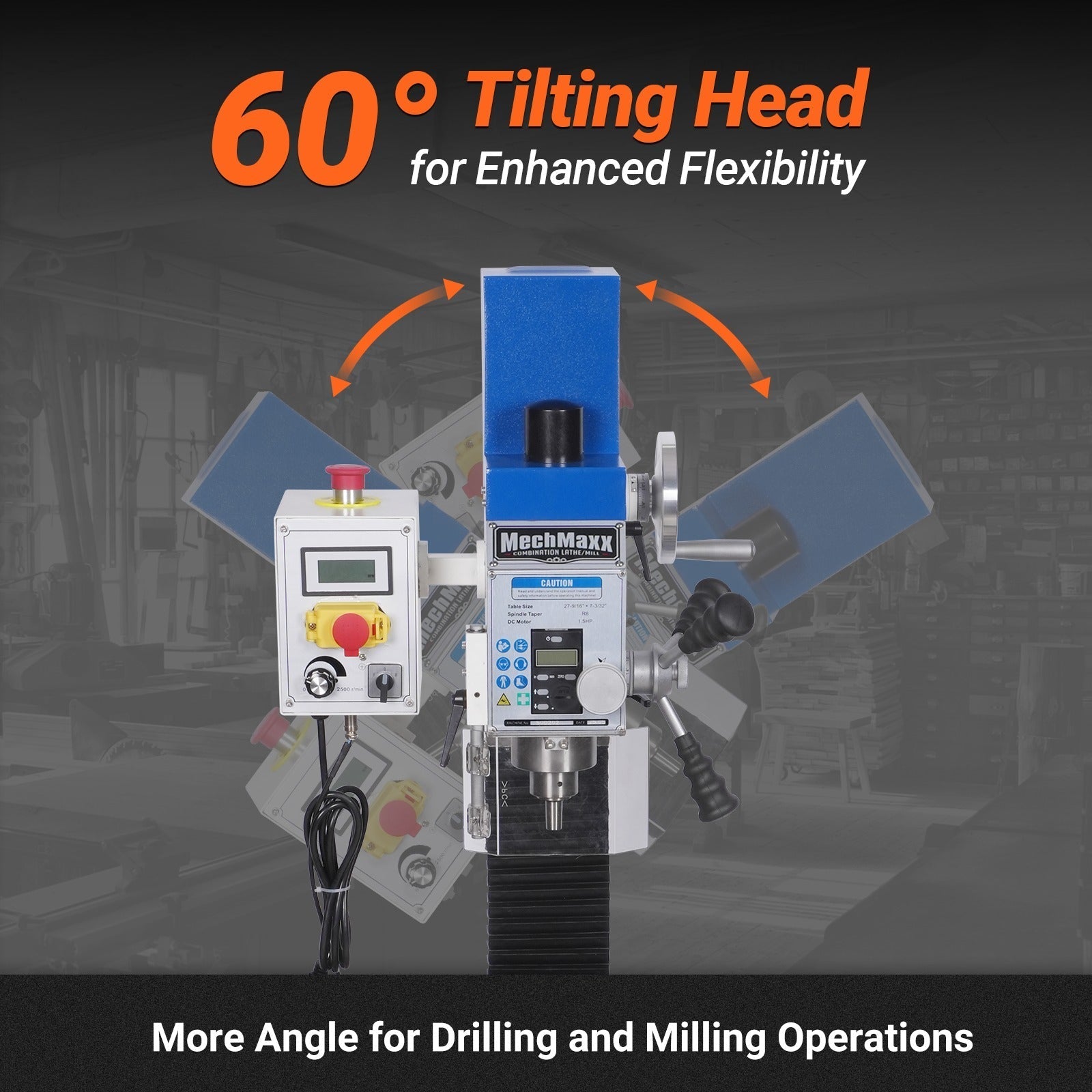

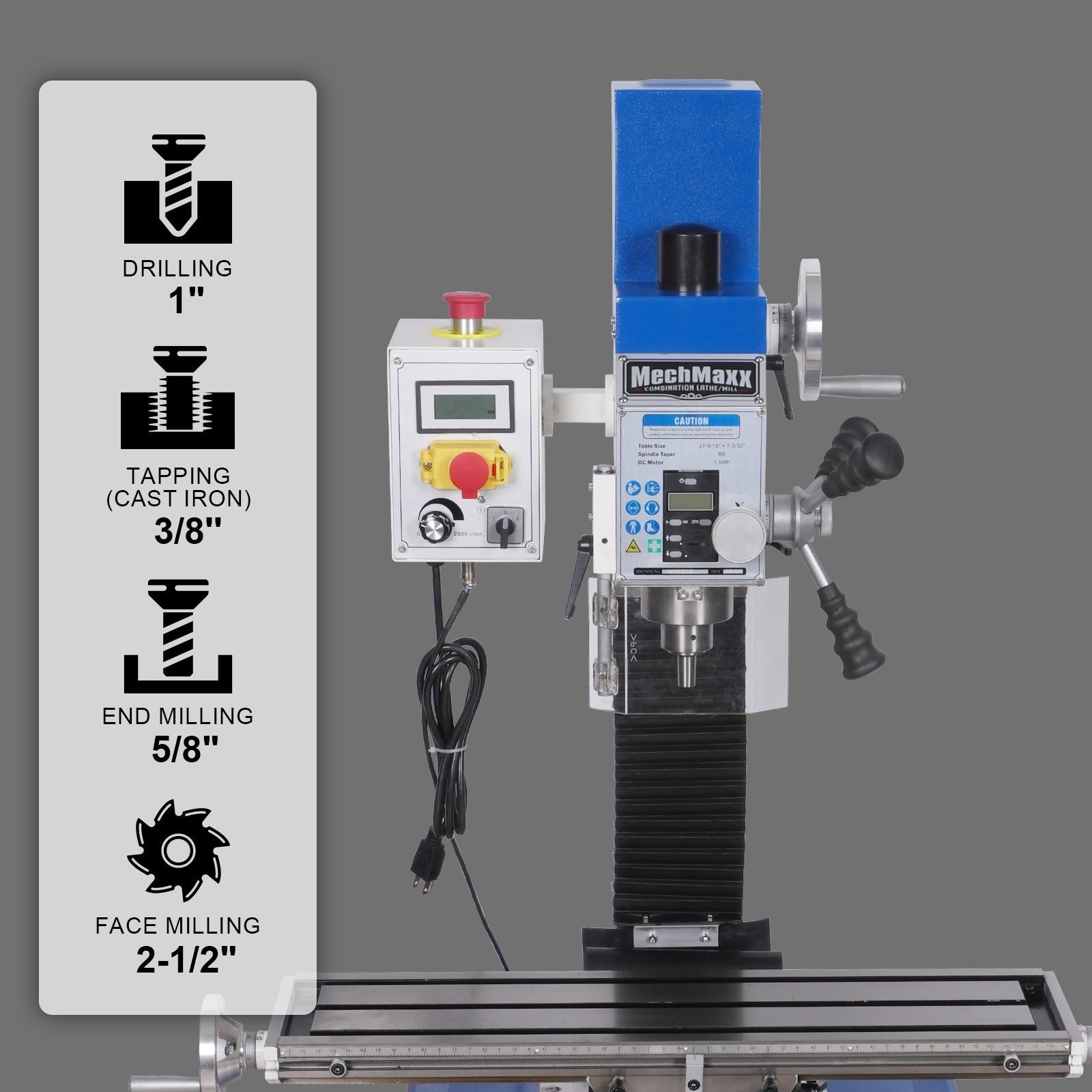

Lathe Functionality: • The 2 HP motor (110V, single-phase, 20A) provides ample power for turning operations. • Swing over bed of 11-2/5" (290mm) and swing over cross slide of 7-1/4" (185mm) allow you to work with a variety of workpieces. • Spindle bore of 1-1/2" (38mm) and MT#5 spindle taper offer compatibility with a wide range of cutting tools. • Longitudinal feed rate of 0.0007–0.0098 in./rev. and transverse feed rate of 0.0027–0.02 in./rev. ensure smooth and precise movements for accurate cuts. • Threading capacity of 8-56 TPI (inch) and 0.4–3.5 mm (metric), along with the thread dial indicator, allows for precise threading. Mill/Drill Functionality: • The 1.5 HP motor (1100W) for the mill head powers a 0-2500 RPM spindle speed range, providing versatility for various milling and drilling tasks. • End milling capacity of 5/8" (16mm) and face milling capacity of 2-1/2" (63mm) ensure the machine can handle a variety of material types and sizes. • Vertical travel of 14-1/2" (370mm) and spindle travel (quill stroke) of 2" (50mm) provide ample clearance for larger workpieces. • The ±60° head tilt allows for added flexibility in drilling and milling operations, especially when working with angled cuts or complex shapes. • R8 spindle taper and 7/16"-20 drawbar thread size ensure compatibility with a variety of tool holders.
