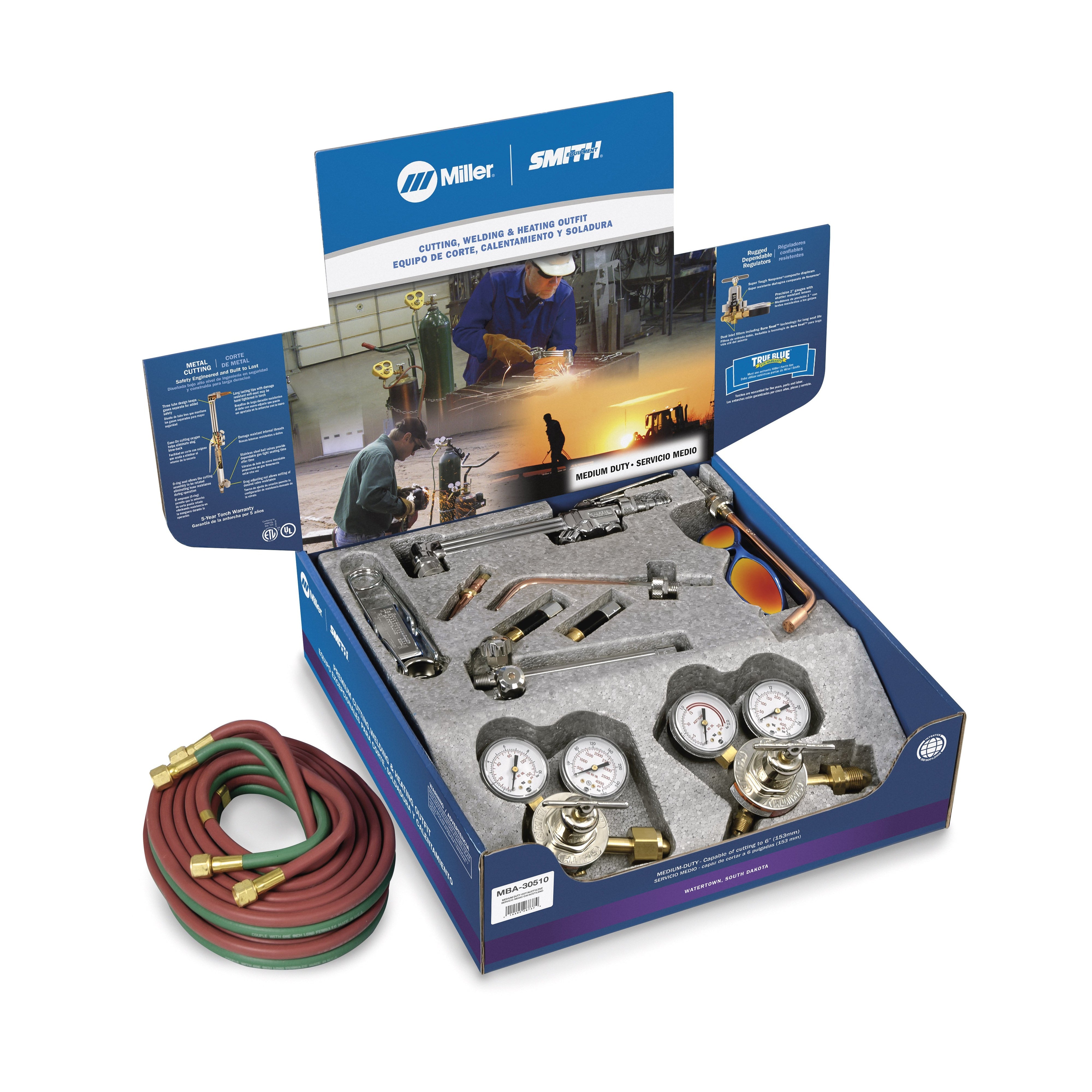

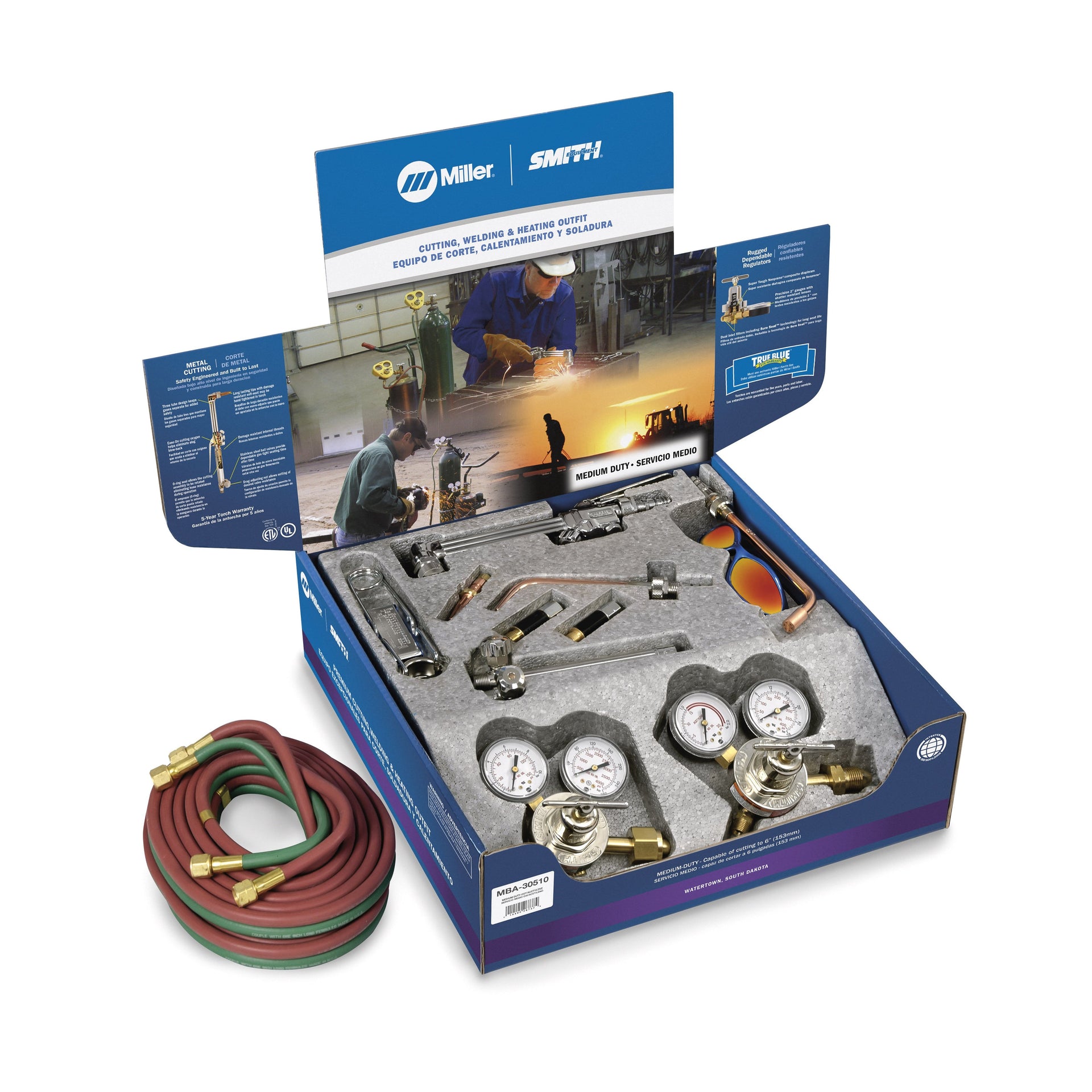

Smith Med Duty Cutting Welding & Heating Outfit, CGA 510 - MBA-30510

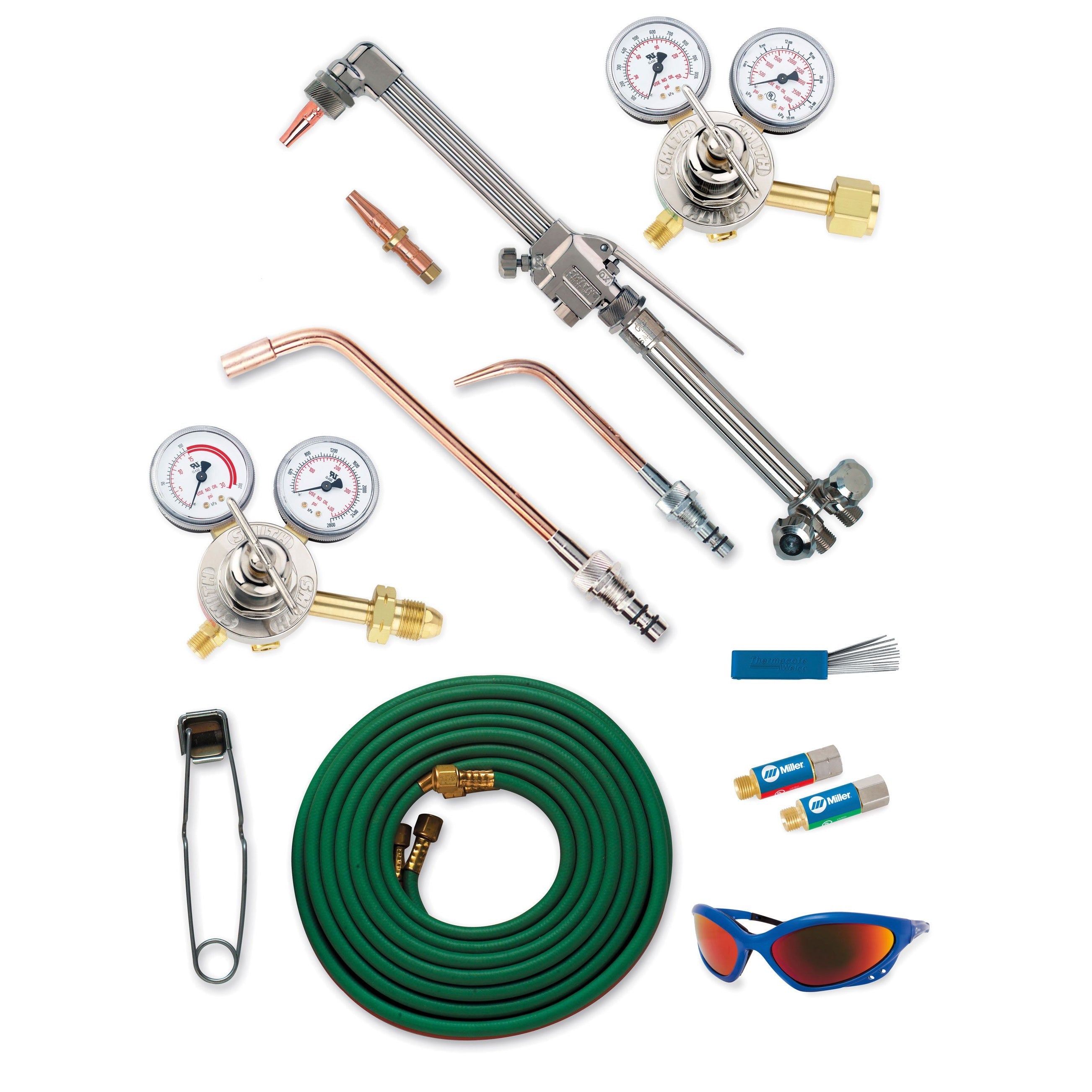

Description   This medium-duty outfit is built to provide reliability and extended service. Outfit features rugged, highly accurate Series 30™; regulators with 2-inch gauges constructed with Sure Seat™; technology and shatter-resistant polycarbonate lenses. The outfits feature a rugged cutting attachment and torch handle that are covered by the Miller True Blue™; warranty. Note this will not fit "B" or "MC" Acetylene cylinder    Cutting Tip • Graf-Tite® soft seats Resilient Graf-Tite® seat material protects tip seating areas from nicking to maintain positive seating. Requires less replacement than metal-to-metal seat designs. Compressible soft seats are practically indestructible and withstand extremely high temperatures, resulting in longer tip life. • In-tip mixes Each tip is a precision-engineered mixer for combining preheat oxygen and fuel gas to attain maximum efficiency. Adds resistance to flashback. • Slip-in tip design — just hand tighten After the first tightening with a wrench, only hand tightening is required to seat the tip, saving time when changing tips. Quick and easy tip changes encourage the use of the right tip for the job. • The removable high-pressure seat Allows cleaning from the back of the tip.   Cutting Attachment • Slip-in cutting tips Save time when changing tips — no wrench needed. Resilient Graf-Tite® seat material protects the tip from nicking and maintains positive seating. Requires less replacement than metal-to-metal seat designs. • Three-tube construction Gases are kept separated, eliminating mixing tube burnout. Our thick-wall, high-capacity stainless steel tubes provide high gas flow and superior strength. • Ease-on oxygen cutting valve Allows smooth piercing and keyhole-free start and restarts. • A triple o-ring seal Provides a positive gas seal and allows rotation.  Torch Handles • Internal threads Threads are protected from damage if the torch is dropped, eliminating costly torch repair, replacement, or downtime. • Double-tube handles Tube-within-a-tube design provides strength while reducing weight. The internal tube is silver brazed for extra protection, strength, and leak resistance. • Adjustable valve resistance Special PTFE packing provides a gas-tight seal while allowing the “drag” to be adjusted to the individual preference. • Stainless steel ball-style valves Corrosion-resistant balls and brass seating surfaces provide gall resistance and positive, chatter-free seating. • Replaceable hose connections are easily replaced if damaged. Included with Product • Torch Handle (WH100) • Cutting Attachment (MC509) • Oxygen Regulator(30-100-540) • Acetylene Regulator (30-15-510) • 2 Cutting Tips (MC12-0 & MC12-1) • Welding tip (MW205) • Heating tip (MT603) • 20-ft 3/16" Twin Hose (RL935) • Friction Lighter (16571) • Safety Glasses (78000) • Tip cleaner (16570) • Torch Mount Flashback Arrestors (H743) • Operations Manual Specifications Click the image below to view the full spec sheet   Torch Setup Video Accessories
